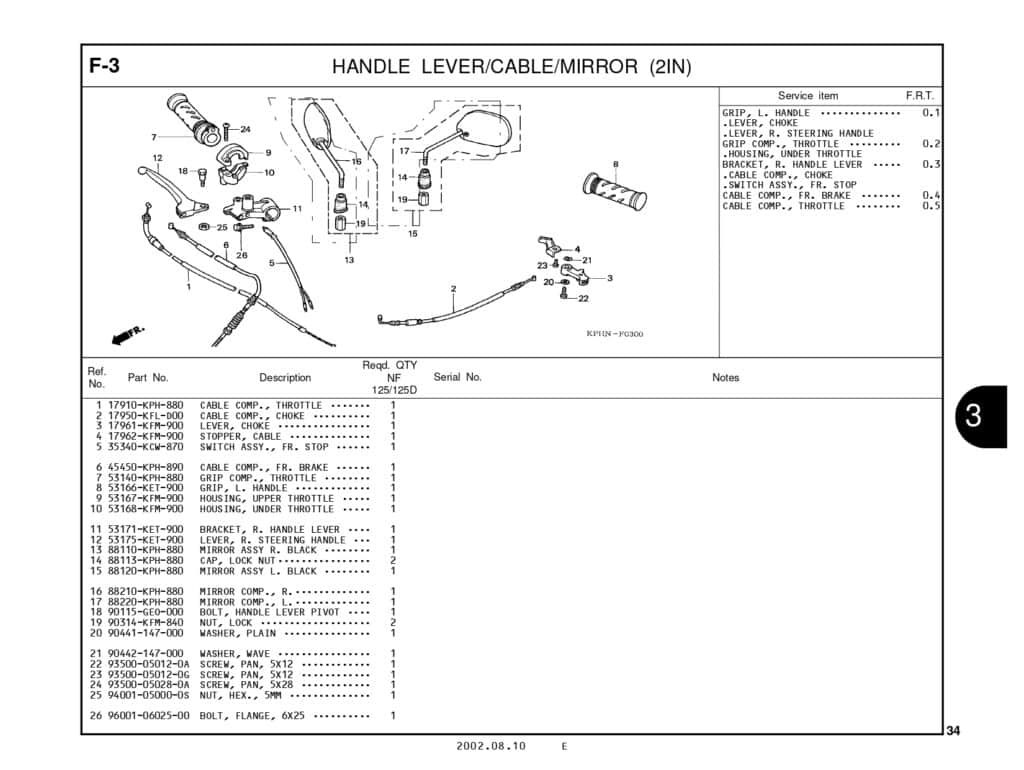

F-3 Handle Lever Cable Mirror 2in – Katalog Suku Cadang Honda Karisma

#	Informasi Produk	Visual
1	CABLE COMP,THROT Part Number : `17910KPH880`
1	CABLE COMP,THROT Part Number : `17910KTM850`
2	CABLE COMP, CHOKE Part Number : `17950KFLD00`
3	LEVER CHOKE Part Number : `17961KFM900`
4	17962KFM900 Part Number : `17962KFM900`
4	STOPPER CABLE Part Number : `17962KTM850`
5	SWITCH ASSY,FR STOP Part Number : `35340KCW870`
6	CABLE COMP FR BRK Part Number : `45450KPH890`
6	CABLE COMP FR BRK Part Number : `45450KEV881`
7	GRIP COMP THROT Part Number : `53140KPH970`
8	GRIP L HDL Part Number : `53166KET900`
9	HOUSING UP THROT Part Number : `53167KFM900`
10	HOUSING UND THROT Part Number : `53168KFM900`
11	LEVER RBRACKET Part Number : `53171KET900`
12	LEVER R HANDLE Part Number : `53175KET900`
13	MIRROR ASSY R BACK Part Number : `88110KPH880`
14	88113KPH880 Part Number : `88113KPH880`
15	MIRROR ASSY L BACK Part Number : `88120KPH880`
16	88210KPH880 Part Number : `88210KPH880`
17	88220KPH880 Part Number : `88220KPH880`
18	90115GEO000 Part Number : `90115GEO000`
19	NUT LOCK Part Number : `90314KFM840`
20	WASHER PLAIN Part Number : `90441147000`
21	WASHER WAVE Part Number : `90442147000`
22	SCREW PAN /M Part Number : `93500050120A`
23	SCREW PAN 5X12 Part Number : `93500050120G`
24	SCREW,PAN 5X28 Part Number : `93500050280A`
25	NUT,HEX 5MM Part Number : `94001050000S`
26	BOLT FLANGE 6X25 Part Number : `960010602500`
