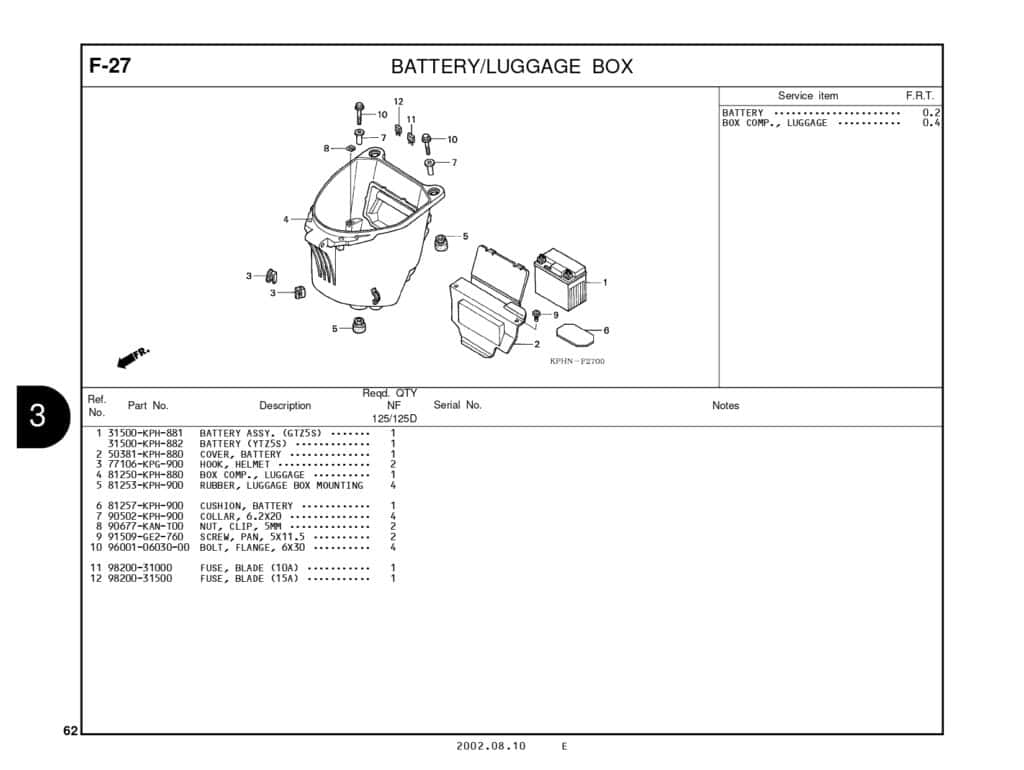

F-27 Battery Luggage Box – Katalog Suku Cadang Honda Karisma

#	Informasi Produk	Visual
1	BATTERY YTZ5-S Part Number : `31500KPH882`
1	Battery GTZ5S GS Part Number : `31500KPH881`
2	COVER ASSY BATTERY Part Number : `50381KPH880`
3	HOOK, HELMET Part Number : `77106KPG900`
4	BOX LUGGAGE Part Number : `81250KPH880`
5	RUBBER BOX MOUNT Part Number : `81253KPH900`
6	CUSHION BATTERY Part Number : `81257KPH900`
7	COLLAR 6.2X20 Part Number : `90502KPH900`
8	NUT CLIP 5MM. Part Number : `90677KANT00`
9	SCREW PAN 5X11.5 Part Number : `91509GE2760`
10	BOLT FLANGE 6X30 Part Number : `960010603000`
11	FUSE, BLADE (10A) Part Number : `9820031000`
12	BLADE FUSE 15A Part Number : `9820031500`
