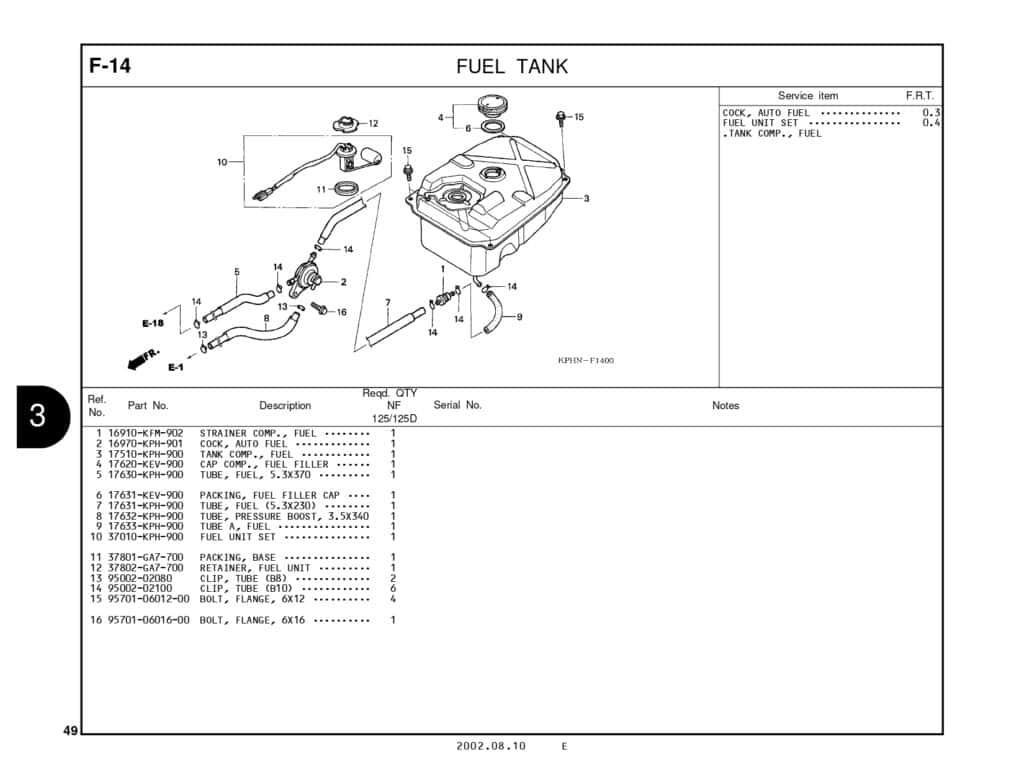

F-14 Fuel Tank – Katalog Suku Cadang Honda Karisma

#	Informasi Produk	Visual
1	STRAINER.FUEL Part Number : `16910KFM902`
2	AUTO COCK, FUEL Part Number : `16970KPH902`
3	FUEL TANK Part Number : `17510KPH900`
4	17620KEV900 Part Number : `17620KEV900`
5	TUBE FUEL 5.3X370 Part Number : `17630KPH900`
6	PACKING FUEL FILLER CAP Part Number : `17631KEV900`
7	TUBE FUEL 5.3X230 Part Number : `17631KPH900`
8	TUBE PB COCK 3.5X340 Part Number : `17632KPH900`
9	TUBE FUEL A Part Number : `17633KPH900`
10	Fuel Unit Part Number : `37800KPH901`
11	PACKING BASE Part Number : `37801GA7700`
12	RETAINER FUEL Part Number : `37802GA7700`
13	CLIP B8,TUBE Part Number : `9500202080`
14	CLIP B10,TUBE Part Number : `9500202100`
15	BOLT FLANGE 6X12 Part Number : `957010601200`
16	BOLT FLANGE 6X16 Part Number : `957010601600`
