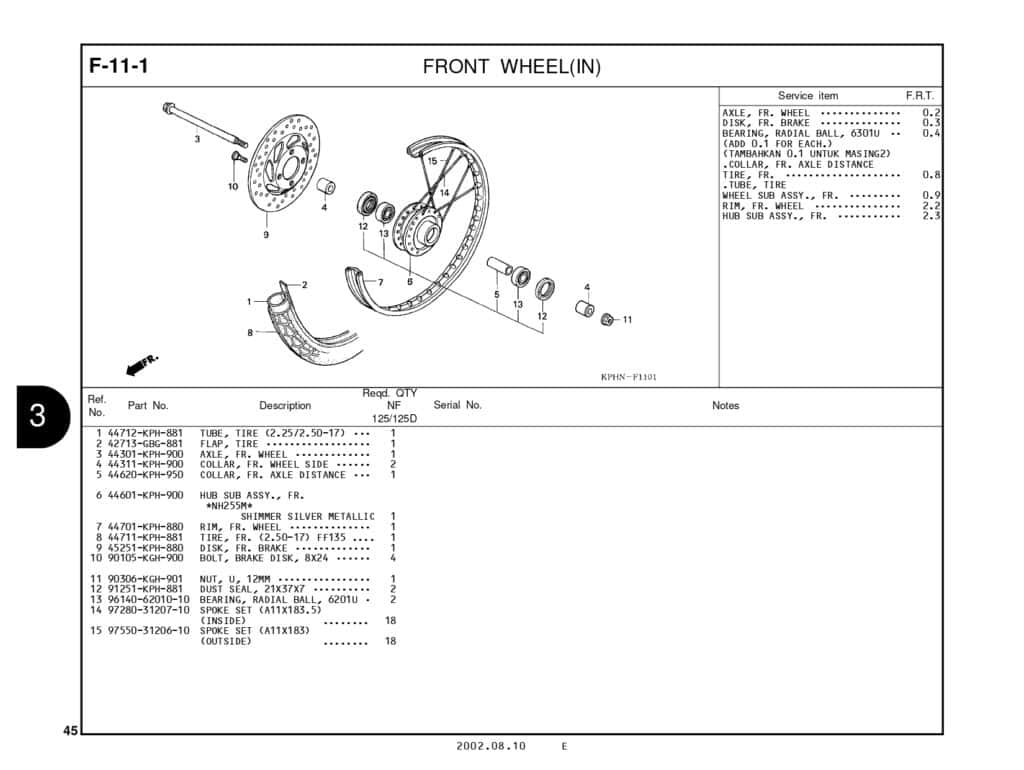

F-11-1 Front Wheel In – Katalog Suku Cadang Honda Karisma

#	Informasi Produk	Visual
1	TUB FR TT (2.50-17) Part Number : `2251725017NR00`
2	FLAP,TIRE 17 Part Number : `42713GBG881`
3	AXLE FR WHEEL Part Number : `44301KPH900`
4	COLLAR FR WHEEL SIDE Part Number : `44311KPH900`
5	COLLAR,FR AXLE DIST Part Number : `44620KPH950`
6	HUB COMP FR WHEEL Part Number : `44601KPH900`
7	RIM FR WHEEL Part Number : `44701KPH882`
8	TIRE FR TT (2.50-17) Part Number : `44711KPH881`
9	DISK FR BRAKE Part Number : `45251KPH881`
10	BOLT BRK DISK 8X24 Part Number : `90105KGH900`
11	NUT,U,12MM Part Number : `90306KGH901`
12	DUST SEAL 27 X 40 X 4.5 Part Number : `91251KPH881`
12	DUST SEAL 27 X 40 X 4.5 Part Number : `91251KGH902`
13	BEARING,BALL Part Number : `HB6201`
14	972803120710 Part Number : `972803120710`
15	975503120610 Part Number : `975503120610`
