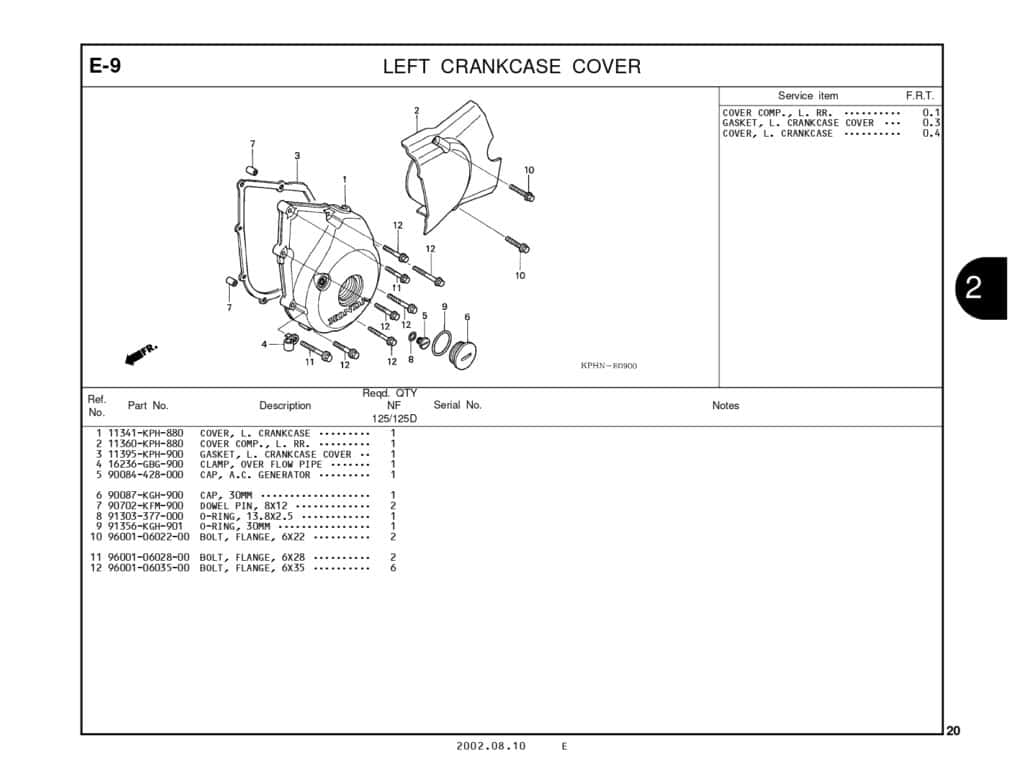

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | COVER L CRANK CASE | 11341KTM850 |
|
| 1 | COVER L CRANK CASE | 11341KVLN00 |
|
| 2 | COVER COMP L RR(Y) | 11360KPH720 | - |
| 3 | GASKET L CRANKCASE COVER | 11395KPH900 |
|
| 4 | CLAMPER OVER FLOW | 16236GBG900 |
|
| 5 | CAP A.C. GEN. | 90084428000 |
|
| 6 | CAP 30MM | 90087KGH900 |
|
| 7 | PIN DOWEL 8X12 | 90702KFM900 |
|
| 8 | 91303377001 | 91303377000 |
|
| 8 | O Ring 13.8 X 2.5 | 91303377001 |
|
| 9 | O-RING,30MM | 91356KGH902 |
|
| 10 | BOLT FLANGE 6X22 | 960010602200 |
|
| 11 | BOLT FLANGE 6X28 | 960010602800 |
|
| 12 | BOLT FLANGE 6X35 | 960010603500 |
|
