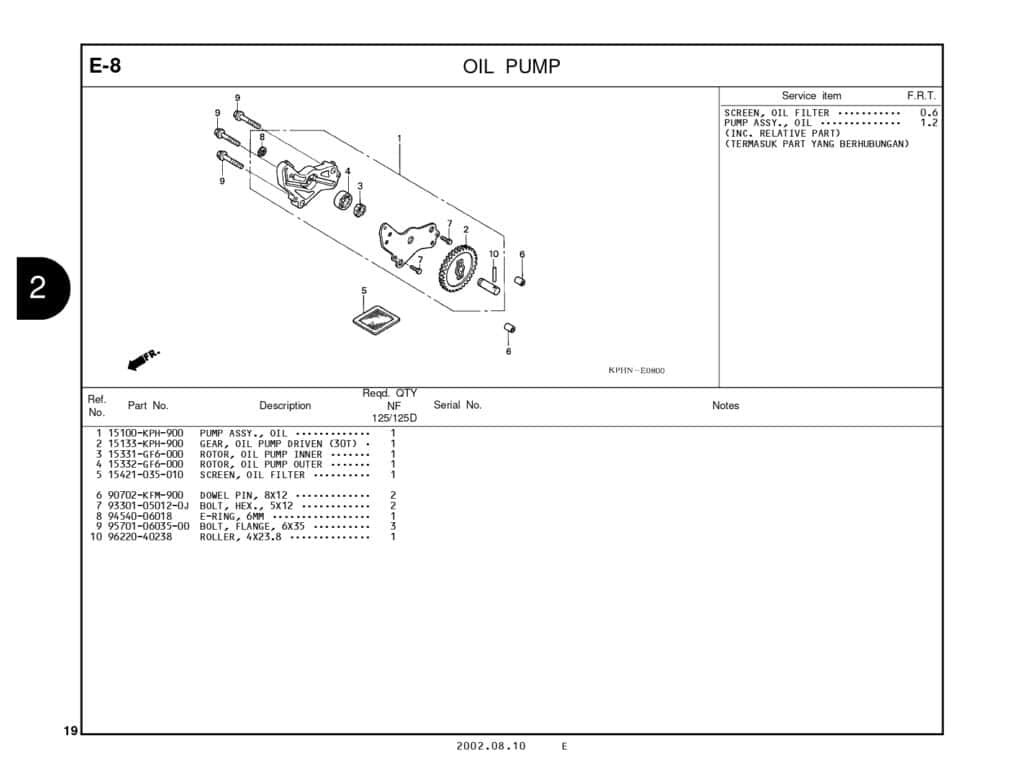

E-8 Oil Pump – Katalog Suku Cadang Honda Karisma

#	Informasi Produk	Visual
1	OIL PUMP ASSY Part Number : `15100KPH901`
2	GEAR, OIL PUMP DRIVEN Part Number : `15133KPH900`
3	ROTOR,OIL PUMP IN Part Number : `15331GF6000`
4	ROTOR,OIL PUMPOUT Part Number : `15332GF6000`
5	SCREEN OIL FILTER Part Number : `15421KSP910`
6	PIN DOWEL 8X12 Part Number : `90702KFM900`
7	BOLT, HEX 5 X 12 Part Number : `93301050120J`
8	E RING, 6 Part Number : `9454006018`
9	BOLT FLANGE 6X35 Part Number : `957010603500`
10	ROLLER, 4X23.8 Part Number : `9622040238`
