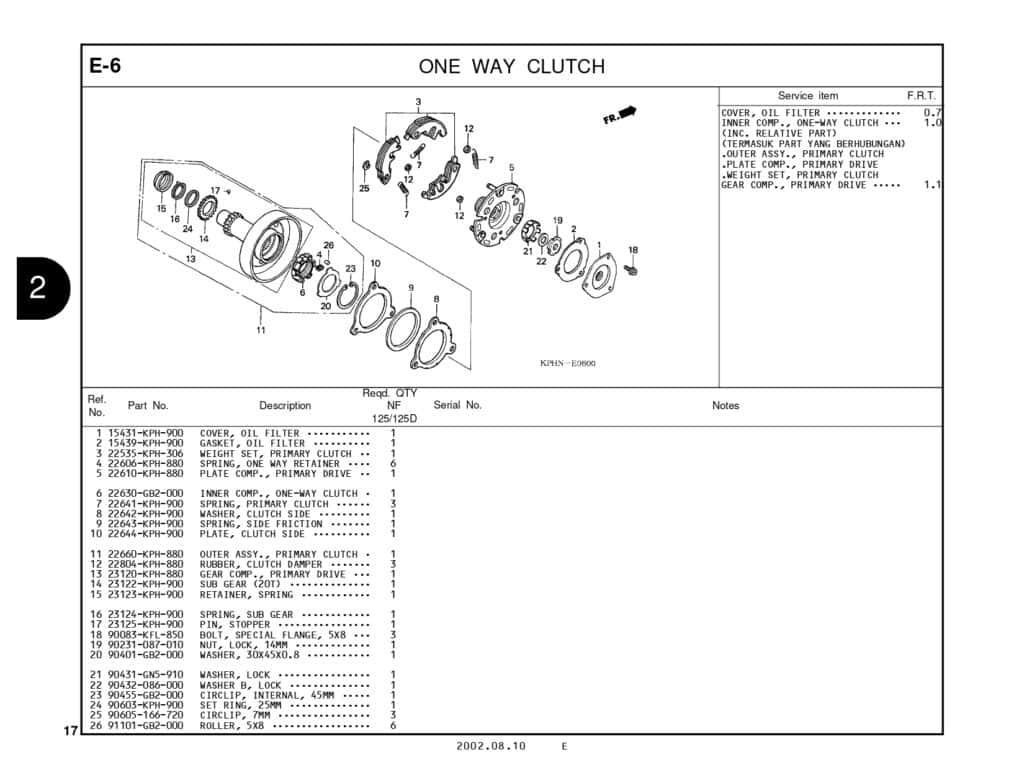

E-6 One Way Clutch – Katalog Suku Cadang Honda Karisma

#	Informasi Produk	Visual
1	COVER OIL FILTER Part Number : `15431KPH900`
2	GASKET OIL FILTER Part Number : `15439KPH900`
3	WEIGHT PRIM CLUTCH Part Number : `22530KPH900`
4	SPRING ONE WAY RETAINER Part Number : `22606KPH880`
5	PLATE COMP PRIMARY DRIVE Part Number : `22610KPH880`
6	INNER COMP ONE WAY CLUTCH Part Number : `22630GB2001`
7	SPRING PRIMARY CLUTCH Part Number : `22641KPH900`
8	WASHER CLUTCH SIDE Part Number : `22642KPH901`
9	SPG SIDE FRICTION Part Number : `22643KPH900`
10	PLATE CLUTCH SIDE Part Number : `22644KPH901`
11	OUTER ASSY PRIMARY CLUTCH Part Number : `22660KPH880`
12	RUBBER, CLUTCH DAMPER Part Number : `22804KPH880`
13	GEAR COMP PRIMARY DRIVE Part Number : `23120KPH880`
14	SUB GEAR (20T) Part Number : `23122KPH900`
15	RETAINER SPRING (FC) Part Number : `23123KPH900`
16	SPRING SUB GEAR Part Number : `23124KPH900`
17	23125KPH900 Part Number : `23125KPH900`
18	BOLT,SPL FLANGE 5X8 Part Number : `90083KFL850`
19	NUT LOCK 14MM Part Number : `90231087010`
20	WASHER,30X45X0,8 Part Number : `90401GB2000`
21	WASHER LOCK Part Number : `90431GN5910`
22	WASHER BLOCK Part Number : `90432086000`
23	CIRCLIP,INT 45 MM Part Number : `90455GB2000`
24	SET RING 25MM Part Number : `90603KPH900`
25	CIRCLIP 7MM Part Number : `90605166720`
26	ROLLER, 5X8 Part Number : `91101GB2000`
