| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|

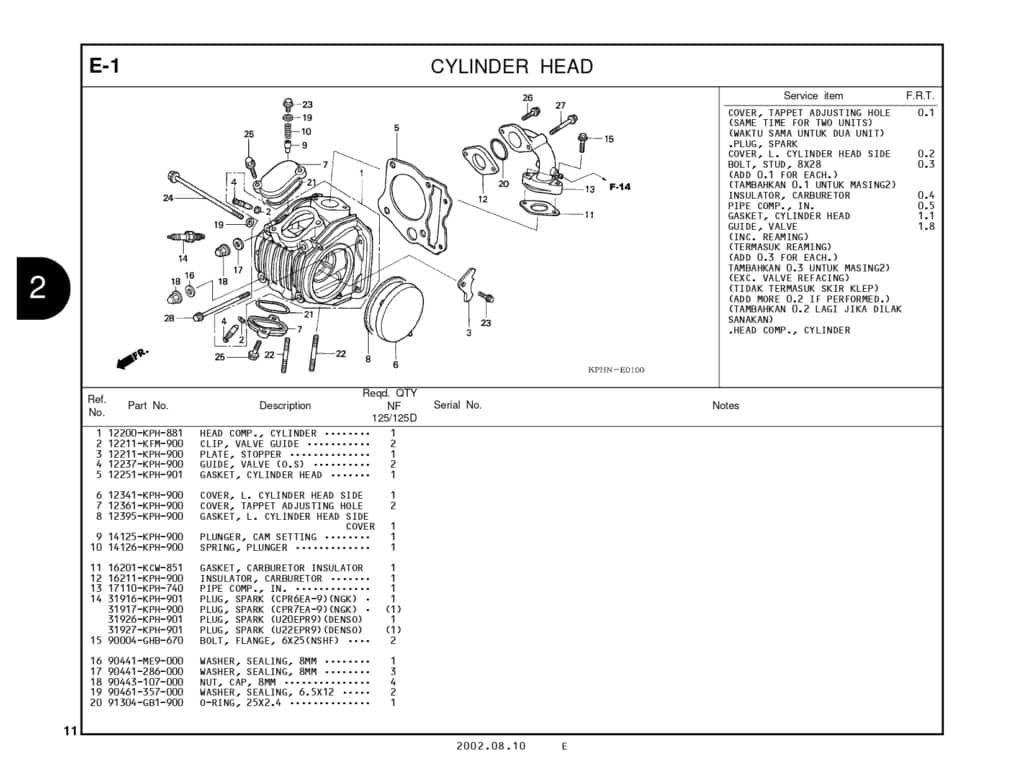

| 1 | HEAD CYLINDER | 12200KPH900 |
|
| 2 | CLIP VALVE GUIDE | 12211KFM901 |
|
| 3 | PLATE STOPPER | 12211KPH900 |
|
| 4 | GUIDE VALVE | 12237KPH900 |
|
| 5 | GASKET CYLINDER HEAD | 12251KPH901 |
|
| 6 | COVER L CYL HEAD SIZE | 12341KPH900 |
|
| 7 | COVER TAPPET ADJ HOLE | 12361KPH900 |
|
| 8 | GASKET L CYLINDER HEAD | 12395KPH900 |
|
| 9 | PLUNGER, CAM SET | 14125KPH900 | - |
| 10 | SPRING PLUNGER | 14126KPH901 |
|
| 11 | GASKET CARB INSULATOR | 16201KCW851 | - |
| 12 | INSULATOR CARB | 16211KPH901 |
|
| 13 | PIPE INLET COMP | 17110KPH880 | - |
| 14 | SPARK PLUG CPR6EA9 (NGK) | 9806786881 |
|
| 14 | SPARK PLUG CPR7EA9 (NGK) | 31917KPH902 |
|
| 14 | SPARK PLUG CPR7EA-9 | 31926KPH901 | - |
| 14 | SPARK PLUG U22EPR9 (DS) | 31927KPH901 |
|
| 15 | BOLT FLANGE SHF 6X25 | 90004GHB670 |
|
| 16 | WASHER SEALING 8MM | 90441ME9000 |
|
| 17 | WASHER SEALING 8MM | 90441286001 |
|
| 18 | NUT HEX CAP | 90443107000 |
|
| 19 | WASHER SEAL 12MM | 90461357000 |
|
| 20 | ORING 25 X 2.4 | 91304GB1900 |
|
| 21 | O-RING, TAPP ADJ | 91372KPH900 |
|
| 22 | BOLT STUD 2.8X28 | 92900080280E |
|
| 23 | BOLT FLANGE 6X12 | 957010601200 |
|
| 24 | BOLT FLANGE 6X110 | 957010611000 | - |
| 25 | BOLT FLANGE 6X20 | 960010602000 |
|
| 26 | BOLT FLANGE 6X22 | 960010602200 |
|
| 27 | BOLT FLANGE 6X45 | 960010604500 |
|
| 28 | BOLT,FLANGE,6X95 | 960010609501 | - |
