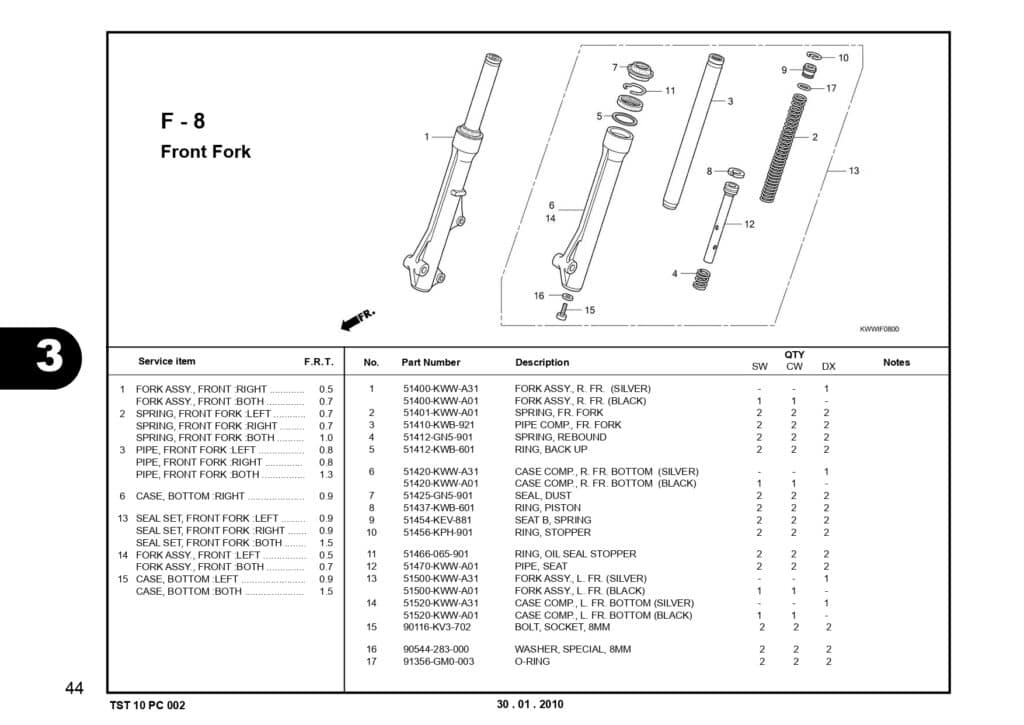

F-8 Front Fork – Katalog Suku Cadang Honda Revo Absolute 110 Carbu

#	Informasi Produk	Visual
1	FORK ASSY R FR Part Number : `51400KWWA31`
1	FORK ASSY R FR Part Number : `51400KWWA01`
1	FORK ASSY R FR Part Number : `51400KWWA81`
1	FORK ASSY R FR Part Number : `51400K07971`
2	SPRING, FR FORK Part Number : `51401KWWA01`
2	SPRING, FR FORK Part Number : `51401KWW641`
3	PIPE COMP FR FORK Part Number : `51410KWB921`
4	SPG REBOUND Part Number : `51412GN5901`
5	RING BACK UP Part Number : `51412KWB601`
6	CASE COMP R FR BOTTOM Part Number : `51420KWWA31`
6	CASE COMP R FR BOTTOM Part Number : `51420KWWA01`
6	CASE COMP R FR BOTTOM Part Number : `51420KWWA81`
7	DUST SEAL FR FORK Part Number : `51425GN5901`
8	RING PISTON Part Number : `51437KWB601`
9	SEAT B SPRING Part Number : `51454KEV881`
10	RIMG,STOPPER Part Number : `51456KPH901`
11	RING OIL SEAL Part Number : `51466065901`
12	PIPE,SEAT Part Number : `51470KWWA01`
13	FORK ASSY L FR Part Number : `51500KWWA31`
13	FORK ASSY L FR Part Number : `51500KWWA01`
13	FORK ASSY L FR Part Number : `51500KWWA81`
13	FORK ASSY L FR Part Number : `51500K07971`
14	CASE COPM L FR BOTTOM Part Number : `51520KWWA31`
14	CASE COPM L FR BOTTOM Part Number : `51520KWWA01`
14	CASE COPM L FR BOTTOM Part Number : `51520KWWA81`
15	BOLT,SOCKET 8MM Part Number : `90116KV3701`
16	WASHER SPECIAL (8MM) Part Number : `90544283000`
17	O RING Part Number : `91356GM0003`
