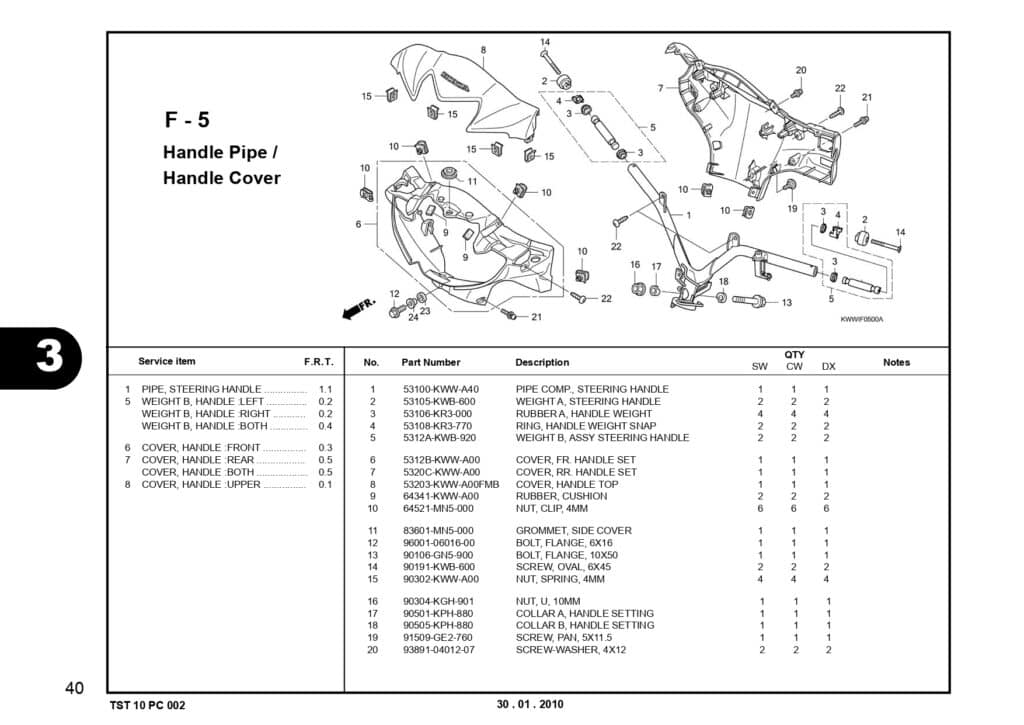

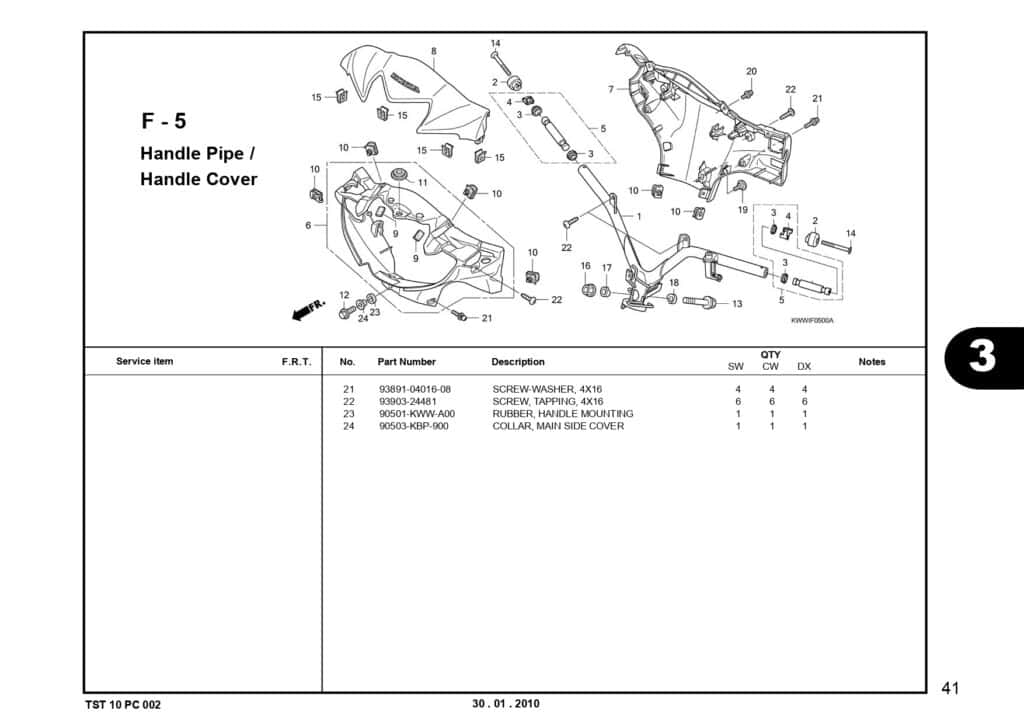

F-5 Handle Pipe Handle Cover – Katalog Suku Cadang Honda Revo Absolute 110 Carbu

#	Informasi Produk	Visual
1	PIPE COMP STRG HANDLE Part Number : `53100KWWA40`
1	PIPE COMP STRG HANDLE Part Number : `53100KWWA00`
2	WEIGHT A STRG HDL Part Number : `53105KWB600`
3	RUBBER A HANDLE WEIGHT Part Number : `53106KR3000`
4	RING HDL WHT SNAP Part Number : `53108KR3770`
5	WEIGHT B ASSY STRG HDL Part Number : `5312AKWB920`
6	5312BKWWA00 Part Number : `5312BKWWA00`
7	COVER HDL RR SET Part Number : `5320CKWWA00`
8	COVER HDL TOP(BK) Part Number : `53203KWWA00FMB`
9	RUBBER CUSHION Part Number : `64341KWWA00`
10	NUT CLIP 4MM Part Number : `64521MN5000`
11	GROMMET SIDE COVER Part Number : `83601MN5000`
12	BOLT FLANGE SH 6X16 Part Number : `960010601600`
13	BOLT FLANGE 10X50 Part Number : `90106GN5900`
14	SCREW OVAL 6X45 Part Number : `90191KWB600`
15	NUT SPRING 4MM Part Number : `90302KWWA00`
16	NUT U10MM Part Number : `90304KGH901`
17	COLLAR A HDL SET Part Number : `90501KPH880`
18	COLLAR B HDL SET Part Number : `90505KPH880`
19	SCREW PAN 5X11.5 Part Number : `91509GE2760`
20	SCREW WASHER 4X12 Part Number : `938910401207`
21	SCREW WASHER 4X16 Part Number : `938910401608`
22	SCREW, TAPPING, 4X16 Part Number : `9390324480`
23	RUBBER COVER HDL MT Part Number : `90501KWWA00`
24	COLLAR MAIN SIDE COVER Part Number : `90503KBP900`
