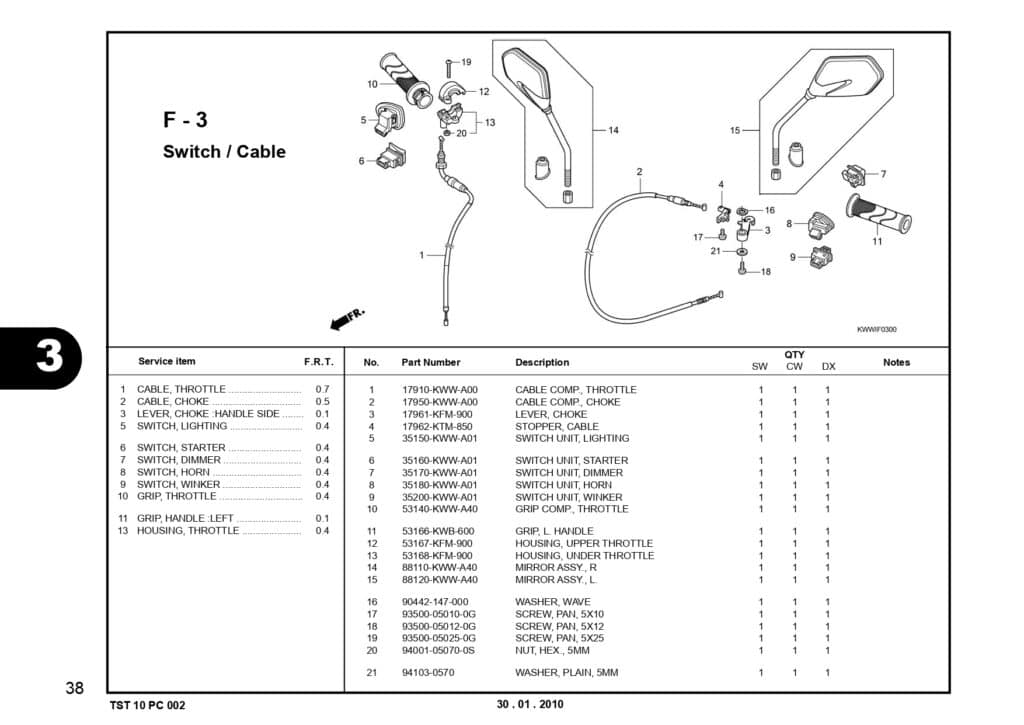

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CABLE COMP, THROT | 17910KWWA00 |
|
| 2 | CABLE COMP, CHOKE | 17950KWWA00 |
|
| 3 | LEVER CHOKE | 17961KFM900 |
|
| 4 | STOPPER CABLE | 17962KTM850 |
|
| 5 | SWITCH UNIT LIGHTING | 35150KWWA01 |
|
| 6 | SWITCH UNIT START | 35160KWWA01 |
|
| 7 | SWITCH UNIT DIMMER | 35170KWWA01 |
|
| 8 | SWITCH UNIT HORN | 35180KWWA01 |
|
| 9 | SWITCH UNIT WINKER | 35200KWWA01 |
|
| 10 | GRIP COMP THROT | 53140KWWA40 | - |
| 11 | GRIP, L HANDLE | 53166K2SN00 |
|
| 12 | HOUSING UP THROT | 53167KFM900 |
|
| 13 | HOUSING UND THROT | 53168KFM900 |
|
| 14 | MIRROR ASSY R BACK | 88110KWWA40 |
|
| 15 | MIRROR ASSY L BACK | 88120KWWA40 |
|
| 16 | WASHER WAVE | 90442147000 |
|
| 17 | SCREW PAN 5X10 | 93500050100G |
|
| 18 | SCREW PAN 5X12 | 93500050120G |
|
| 19 | SCREW PAN 5X25 | 93500050250G |
|
| 20 | NUT,HEX 5MM | 94001050700S |
|
| 21 | WASHER PLAIN 5MM | 9410305700 |
|
