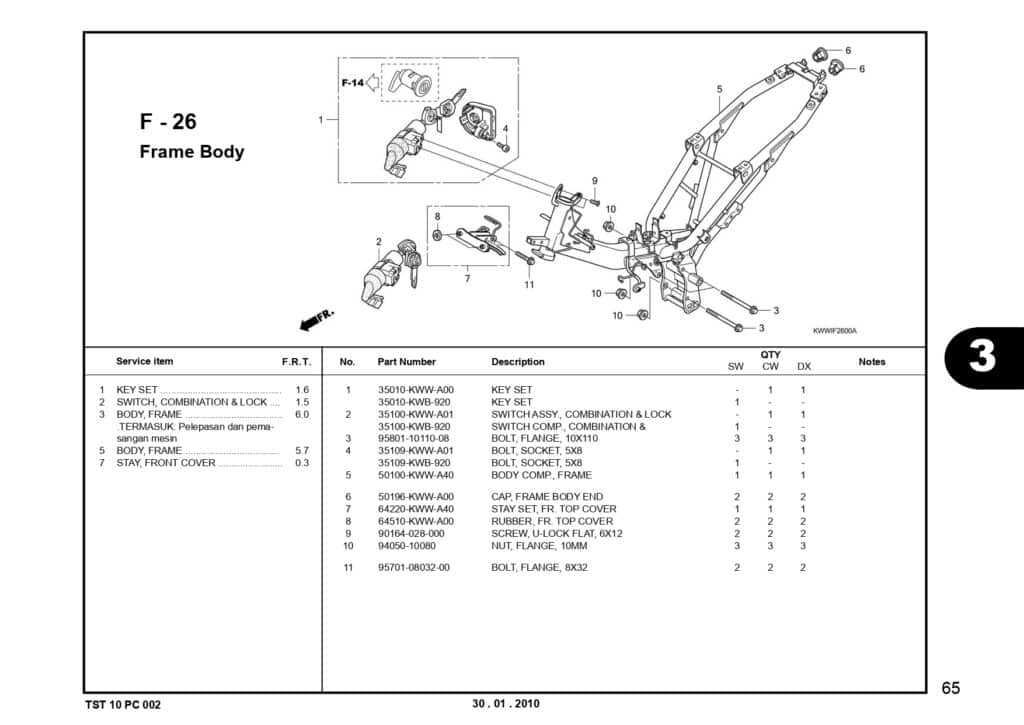

F-26 Frame Body – Katalog Suku Cadang Honda Revo Absolute 110 Carbu
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
KEY SET |
35010KWWA00 |
|
| 1 |
KEY SET |
35010KWB920 |
|
| 2 |
SWITCH ASSY COMB |
35010KWWA60 |
|
| 2 |
SWITCH ASSY COMB & LOCK |
35100KWWA01 |
-
|
| 2 |
SWITCH ASSY COMB & LOCK |
35100KWB921 |
-
|
| 3 |
BOLT FLANGE 10X110 |
958011011008 |
|
| 4 |
SOCKET BOLT (5X8) |
35109KWWA01 |
|
| 4 |
SOCKET BOLT (5X8) |
35109KWB920 |
-
|
| 5 |
FRAME BODY |
50100KWWA40 |
-
|
| 6 |
CAP FRAME BODY END |
50196KWWA00 |
-
|
| 7 |
STAY FR TOP COVER ASSY |
64220KWWA40 |
-
|
| 8 |
RUBBER FR TOP COVER |
64510KWWA00 |
-
|
| 9 |
SCREW LOCK /K4 |
90164028000 |
|
| 10 |
NUT FLANGE 10MM |
9405010080 |
|
| 11 |
BOLT FLANGE 8X32 |
957010803200 |
|
