E-6 Right Crankcase Cover – Katalog Suku Cadang Honda Revo Absolute 110 Carbu

#	Informasi Produk	Visual
1	COVER R CRANK CASE Part Number : `11331KWB600`
2	GASKET R CRANKCASE COVER Part Number : `11394KWB920`
3	CLIP, PISTON PIN, 13MM Part Number : `13115GN5910`
4	GAUGE ASSY OIL LEVEL Part Number : `1565AKWB920`
5	LEVER COMP CLUTCH Part Number : `22810KTL740`
6	22823KWB600 Part Number : `22823KWB600`
6	PLATE,CLUTCH LIFTER Part Number : `22823KWW740`
7	SPRING, CAM PLATE Part Number : `22825KWB600`
7	SPRING, CAM PLATE Part Number : `22825046001`
8	PLATE COMP,CLUTCH Part Number : `22830KWB600`
8	PLATE COMP,CLUTCH Part Number : `22830K41N00`
8	PLATE COMP,CLUTCH Part Number : `22830KPH901`
9	BOLT CLUTCH ADJUST Part Number : `22846KPH901`
10	RETAINER COMP, BAL Part Number : `22860KWB601`
11	CLIP H/T & SENSOR CORD Part Number : `32906KWWA00`
12	WASHER 8MM Part Number : `90485040001`
13	OIL SEAL 13.8X24X5 Part Number : `91202KRS971`
13	OIL SEAL 13.8X24X5 Part Number : `91202302010`
14	ORING 8MM Part Number : `91303001000`
15	O-RING, 18X3 Part Number : `91307035000`
16	NUT HEX 8MM Part Number : `9403008000`

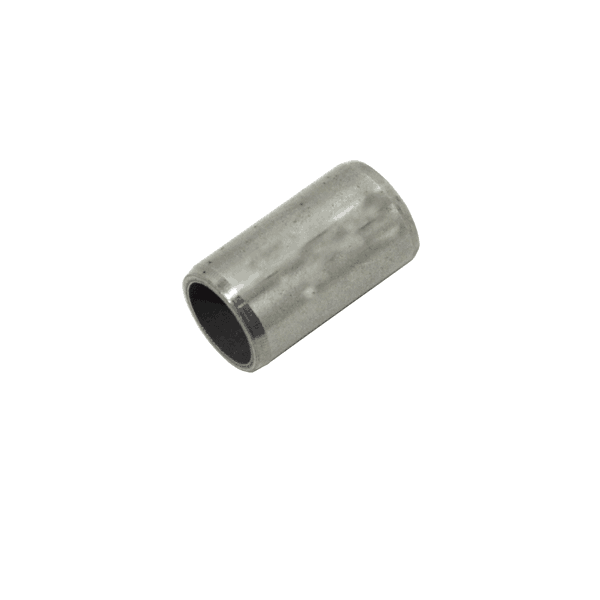

17	PIN DOWEL 8X14 Part Number : `9430108140`
18	BOLT FLANGE 6X40 Part Number : `960010604000`
18	BOLT FLANGE 6X40 Part Number : `90019K56N00`
