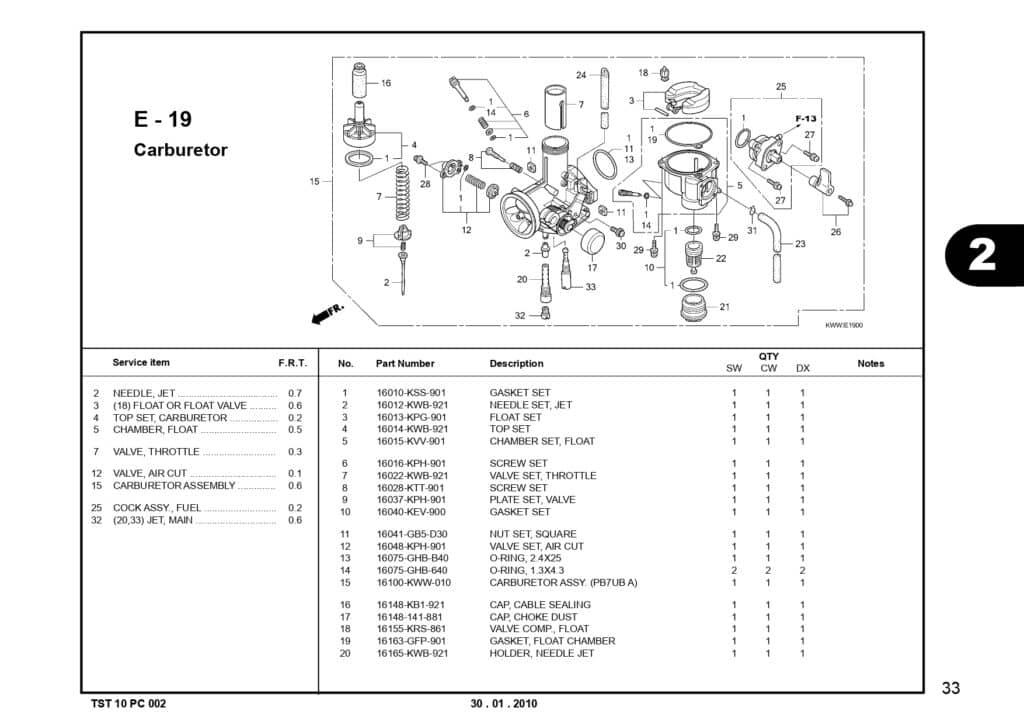

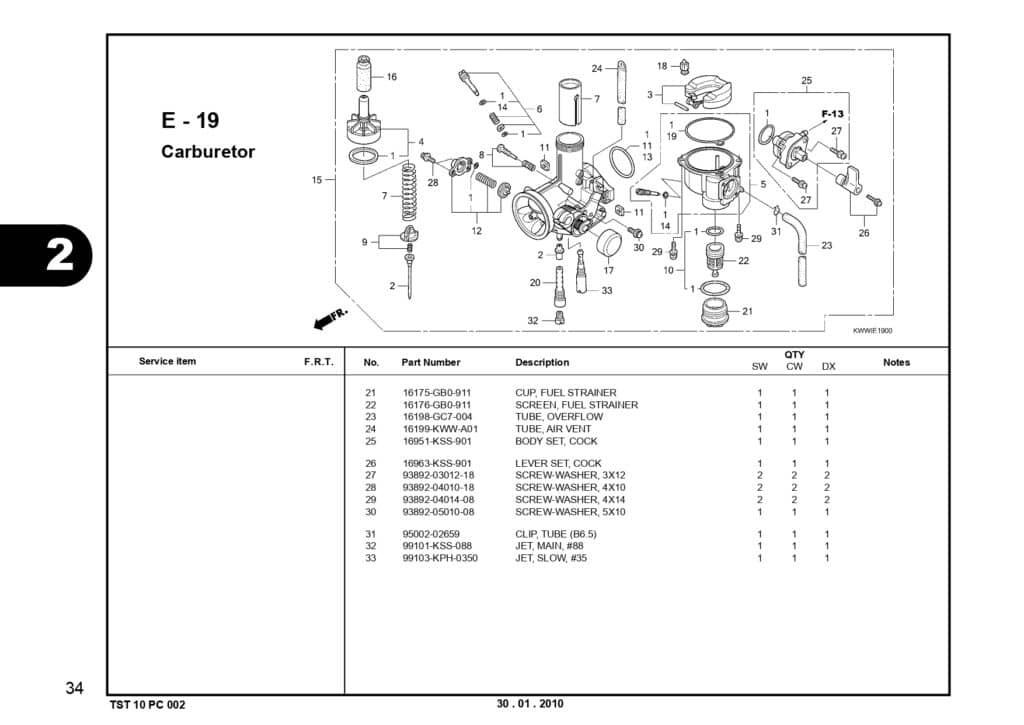

E-19 Carburetor – Katalog Suku Cadang Honda Revo Absolute 110 Carbu

#	Informasi Produk	Visual
1	16010KSS901 Part Number : `16010KSS901`
2	NEEDLE SET JET Part Number : `16012KWB921`
3	FLOAT SET Part Number : `16013KPG901`
4	16014KWB921 Part Number : `16014KWB921`
5	16015KVV901 Part Number : `16015KVV901`
6	SCREW SET Part Number : `16016KPH901`
7	16022KWB921 Part Number : `16022KWB921`
8	16028KTT901 Part Number : `16028KTT901`
9	PLATE SET, VALVE Part Number : `16037KPH901`
10	GASKET SET B LBL Part Number : `16040GB0911`
11	16041GB5D30 Part Number : `16041GB5D30`
12	VALVE SET, AIR CUT Part Number : `16048KPH901`
13	O-RING Part Number : `16075GHBB40`
14	O-RING,1.3X4.3 Part Number : `16075GHB640`
15	CARBURETOR ASSY Part Number : `16100KWW010`
16	16148KB1921 Part Number : `16148KB1921`
17	CAP,DUST Part Number : `16148141881`
18	VALVE COMP FLOAT Part Number : `16155KRS861`
19	GASKET FLOAT CHAMBER Part Number : `16163GFP901`
20	16165KWB921 Part Number : `16165KWB921`
21	CUP,FUEL STAINER Part Number : `16175GB0911`
22	CUP,FILTER Part Number : `16176GB0911`
23	TUBE, OVERFLOW Part Number : `16198GC7004`
24	16199KWWA01 Part Number : `16199KWWA01`
25	16951KSS901 Part Number : `16951KSS901`
26	LEVER SET, COCK Part Number : `16963KSS901`
27	93892030121H Part Number : `93892030121H`
28	SCREW WASHER 4X10 Part Number : `938920401018`
29	SCREW,WASHER 4X14 Part Number : `938920401408`
30	SCREW, WASHER 5X10 Part Number : `938920501008`
31	CLIP,TUBE Part Number : `9500202659`
32	JET, MAIN, 88 Part Number : `99101KSS088`
33	JET, SLOW 35 Part Number : `99103KPH0350`
