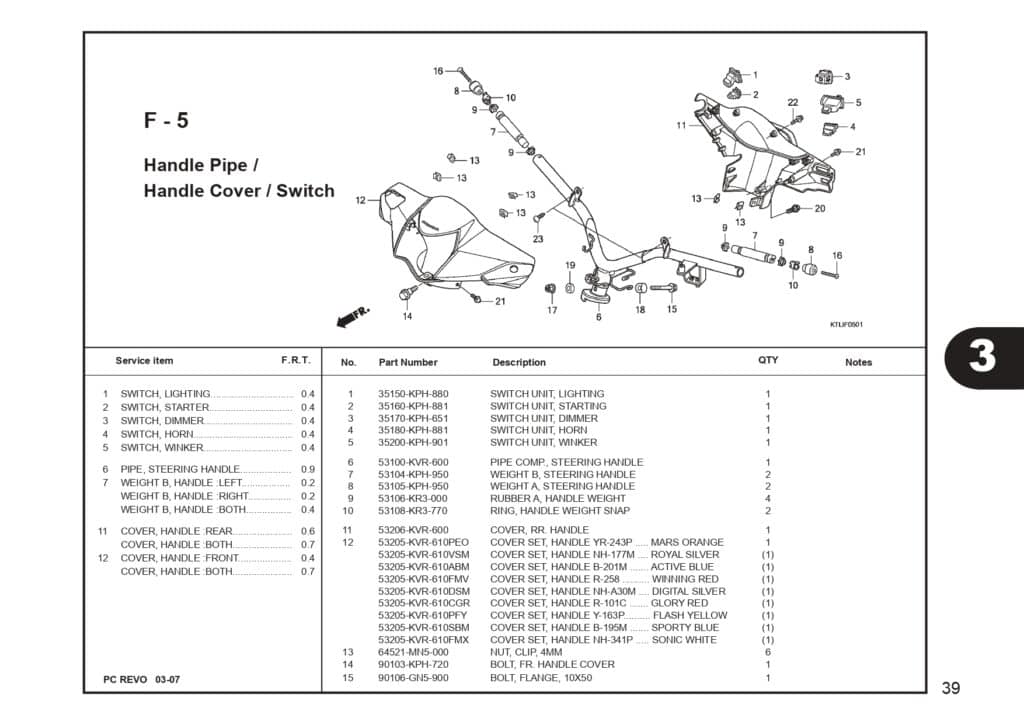

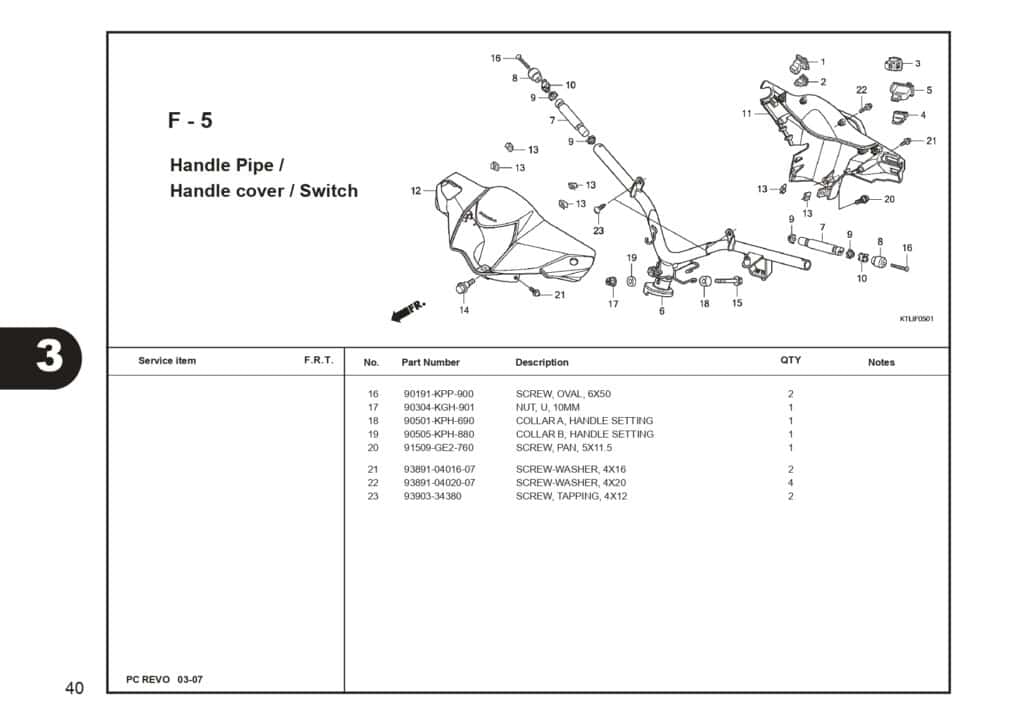

F-5 Handle Pipe Handle Cover Switch – Katalog Suku Cadang Honda Revo 100

#	Informasi Produk	Visual
1	SWITCH UNIT LIGHTING Part Number : `35150KPH880`
2	SWITCH UNIT START Part Number : `35160KPH881`
3	SWITCH UNIT DIMMER Part Number : `35170KPH651`
4	SWITCH UNIT HORN Part Number : `35180KPH881`
5	SWITCH UNIT WINKER Part Number : `35200KPH901`
6	PIPE COMP STRG HANDLE Part Number : `53100KVR600`
7	WEIGHT B STRG HDL Part Number : `53104KPH950`
8	WEIGHT A STRG HDL Part Number : `53105KPH950`
9	RUBBER A HANDLE WEIGHT Part Number : `53106KR3000`
10	RING HDL WHT SNAP Part Number : `53108KR3770`
11	COVER RR HDL Part Number : `53206KVR600`
12	53205KVR610PEO Part Number : `53205KVR610PEO`
12	53205KVR610VSM Part Number : `53205KVR610VSM`
12	53205KVR610ABM Part Number : `53205KVR610ABM`
12	53205KVR610FMV Part Number : `53205KVR610FMV`
12	53205KVR610DSM Part Number : `53205KVR610DSM`
12	53205KVR610CGR Part Number : `53205KVR610CGR`
12	53205KVR610PFY Part Number : `53205KVR610PFY`
12	53205KVR610SBM Part Number : `53205KVR610SBM`
12	53205KVR610FMX Part Number : `53205KVR610FMX`
13	NUT CLIP 4MM Part Number : `64521MN5000`
14	BOLT FR HDL COVER(Y) Part Number : `90103KPH721`
15	BOLT FLANGE 10X50 Part Number : `90106GN5900`
16	90191KPP900 Part Number : `90191KPP900`
17	NUT U10MM Part Number : `90304KGH901`
18	COLLAR A HDL SET Part Number : `90501KPH690`
19	COLLAR B HDL SET Part Number : `90505KPH880`
20	SCREW PAN 5X11.5 Part Number : `91509GE2760`
21	SCREW WASHER 4X16 Part Number : `938910401608`
22	SCREW WASHER 4X20 Part Number : `938910402007`
23	SCREW TAPPING 4X12 Part Number : `9390334380`
