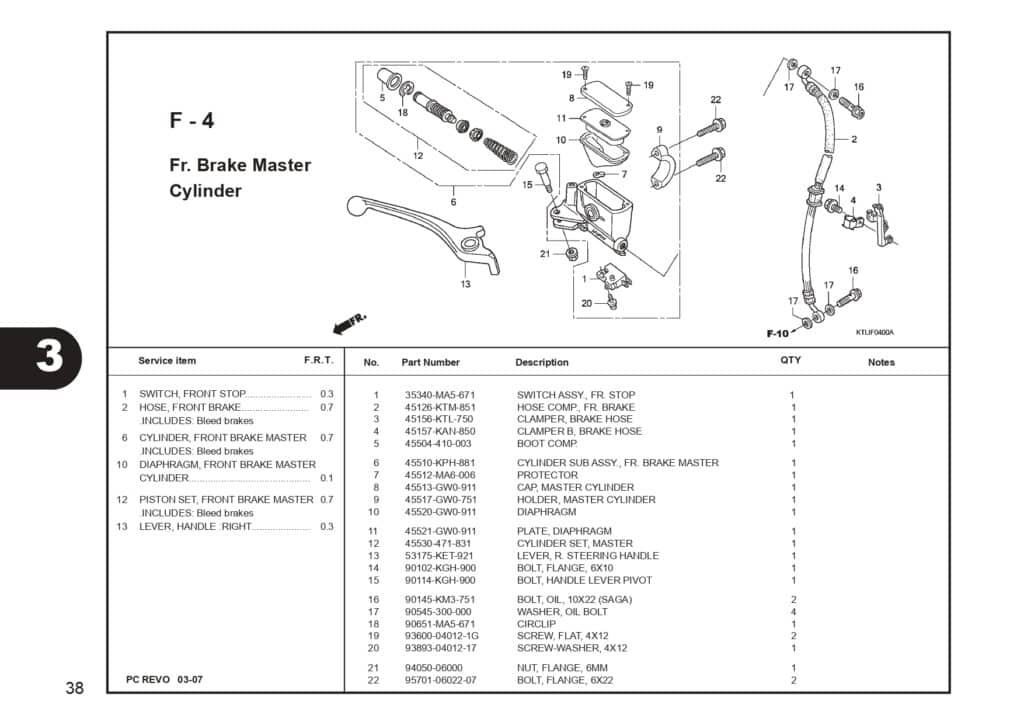

F-4 Fr Brake Master Cylinder – Katalog Suku Cadang Honda Revo 100

#	Informasi Produk	Visual
1	SW,ASSY FR.STOP Part Number : `35340MA5671`
2	HOSE COMP FR BRK Part Number : `45126KTM851`
3	CLAMPER BRAKE HOSE Part Number : `45156KTL750`
4	CLAMPER B FR BRK Part Number : `45157KAN850`
5	BOOT COMP Part Number : `45504410003`
6	45510KPH881 Part Number : `45510KPH881`
7	PROTECTOR Part Number : `45512MA6006`
8	CAP,MASTER CYLINDER Part Number : `45513GW0911`
8	CAP,MASTER CYLINDER Part Number : `45513GW0913`
9	HOLDER M/C Part Number : `45517GW0751`
10	DIAPHRAGM Part Number : `45520GW0911`
11	PLATE,DIAPHRAGM Part Number : `45521GW0911`
12	CYLINDER SET,MAS Part Number : `45530471831`
13	LEVER,R STRG HNDL Part Number : `53175KET921`
14	BOLT FLANGE 6X10 Part Number : `90102KGH900`
15	BOLT HANDLE LEVER Part Number : `90114KGH900`
16	BOLT OIL, 10X22 Part Number : `90145KM3752`
17	WASHER OIL BOLT Part Number : `90545300000`
18	CIRCLIP Part Number : `90651MA5671`
19	SCREW FLAT, 4X12 Part Number : `93600040121G`
20	SCREW WASHER 4X12 Part Number : `938930401217`
21	NUT,FLANGE 6MM Part Number : `9405006000`
22	BOLT FLANGE 6X22 Part Number : `957010602207`
