F-28 Frame Body – Katalog Suku Cadang Honda Revo 100

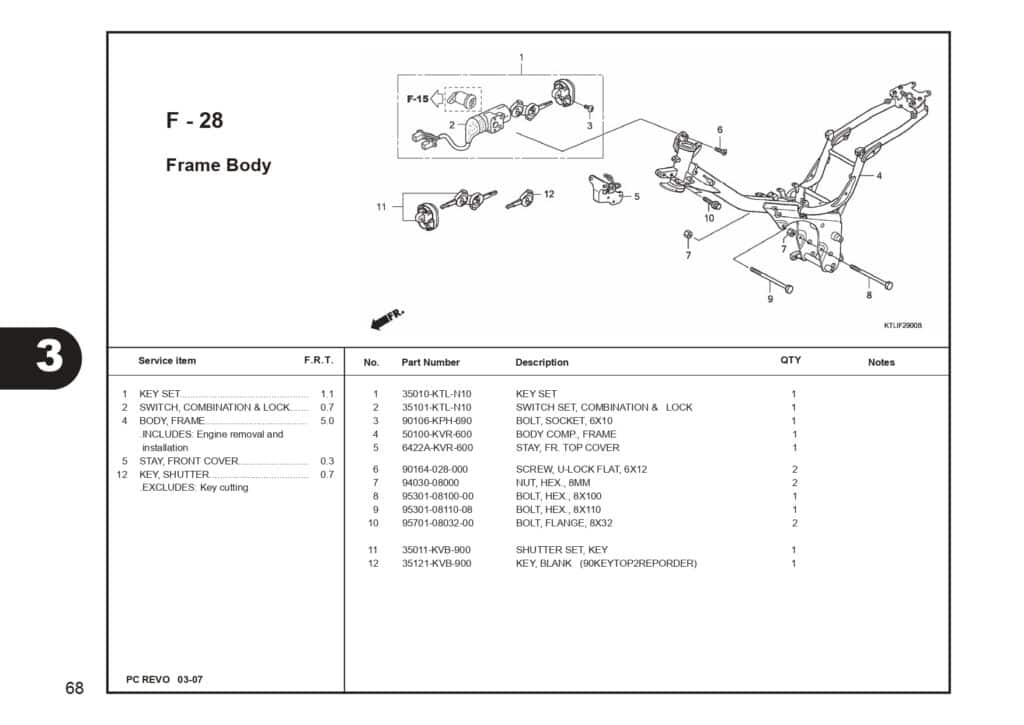

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 KEY SET 35010KTLN10 -
1 KEY SET 35010KVR600 KEY SET
2 35101KTLN10 35101KTLN10 -
3 SOCKET BOLT 6X10 90106KPH690 SOCKET BOLT 6X10
4 FRAME BODY 50100KVR600 -
5 STAY FR TOP COVER ASSY 6422AKVR600 -
6 SCREW LOCK /K4 90164028000 SCREW LOCK /K4
7 NUT HEX 8MM 9403008000 NUT HEX 8MM
8 BOLT HEX 8X100 953010810000 -
9 BOLT HEX 8X110 953010811008 -
10 BOLT FLANGE 8X32 957010803200 BOLT FLANGE 8X32
11 35011KVB900 35011KVB900 -
12 35121KVB900 35121KVB900 -
