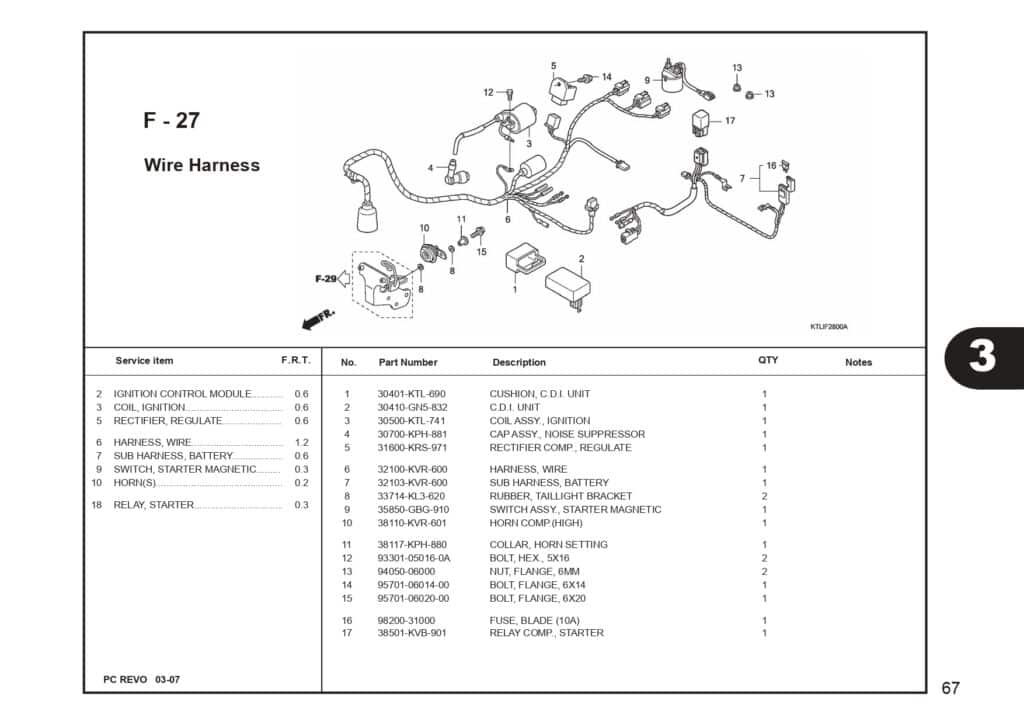

F-27 Wire Harness – Katalog Suku Cadang Honda Revo 100

#	Informasi Produk	Visual
1	30401KTL690 Part Number : `30401KTL690`
2	CDI UNIT Part Number : `30410GN5832`
3	COIL ASSY IGN Part Number : `30500KTL741`
4	CAP ASSY NOISE SUPPRESSOR Part Number : `30700KPH881`
5	REGULATOR REC COMP Part Number : `31600KRS971`
6	HARNESS WIRE Part Number : `32100KVR600`
7	SUB HARNESS BATTERY Part Number : `32103KVR600`
8	RUBTAIL/LT BRKT. Part Number : `33714KL3620`
9	SWITCH STARTER Part Number : `35850GBG910`
10	HORN COMP ( HIGH ) Part Number : `38110KVR601`
11	COLLAR HORN SETTING Part Number : `38117KPH880`
12	BOLT HEX 5X16 Part Number : `93301050160A`
13	NUT,FLANGE 6MM Part Number : `9405006000`
14	BOLT FLANGE 6X14 Part Number : `957010601400`
15	BOLT FLANGE 6X20 Part Number : `957010602000`
16	FUSE, BLADE (10A) Part Number : `9820031000`
17	RELAY COMP,START Part Number : `38501KVB901`
