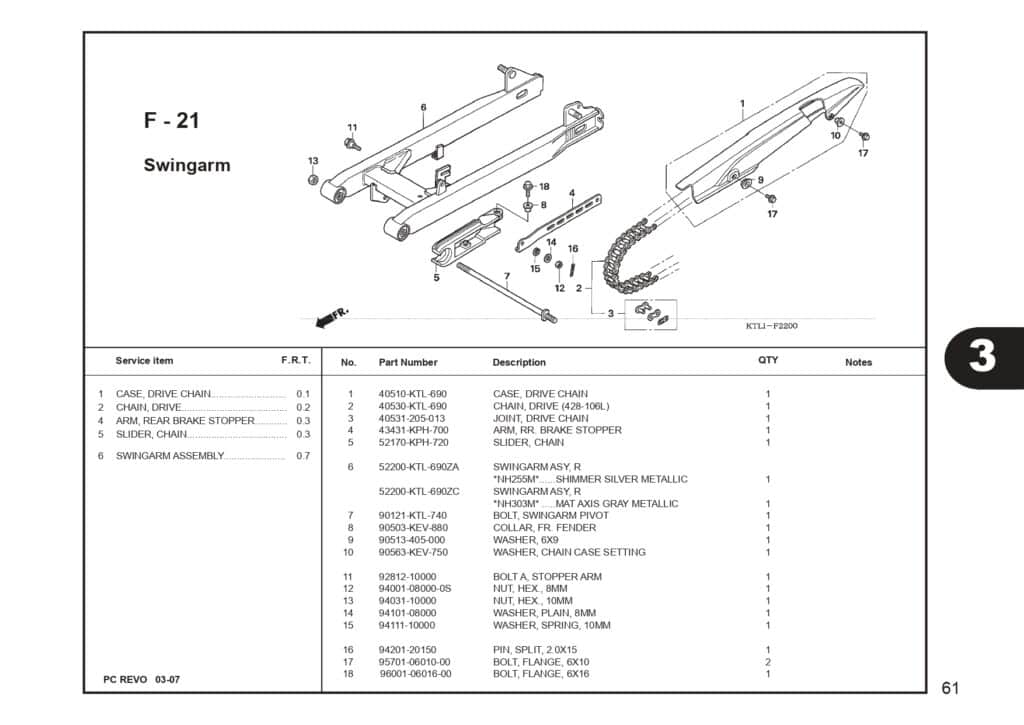

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | 40510KTL690 | 40510KTL690 | - |
| 2 | CHAIN DRIVE 428-106 | 40530KTL690 |
|
| 3 | JOINT,DRIVE CHAIN | 40531205013 | - |
| 4 | ARM RR BRK STPR | 43431KPH700 |
|
| 5 | SLIDER CHAIN (Y) | 52170KPH720 |
|
| 6 | 52200KTL690ZA | 52200KTL690ZA | - |
| 6 | 52200KTL690ZC | 52200KTL690ZC | - |
| 7 | BOLT SWINGARM PIVOT | 90121KTL740 |
|
| 8 | COLLAR FR FENDER | 90503KEV880 | - |
| 9 | WASHER 6X9 | 90513405000 |
|
| 10 | WASHER CHAIN CASE SET | 90563KEV750 |
|
| 11 | BOLT A ARM STOP | 9281210000 |
|
| 12 | NUT HEX 8MM | 94001080000S |
|
| 13 | NUT HEX 10MM | 9403110000 |
|
| 14 | WASHER PLAIN 8MM | 9410108000 |
|
| 15 | WASHER,SPRING10MM | 9411110000 |
|
| 16 | PIN COTTER 2.0X15 | 9420120150 |
|
| 17 | BOLT FLANGE 6X10 | 957010601000 |
|
| 18 | BOLT FLANGE SH 6X16 | 960010601600 |
|
