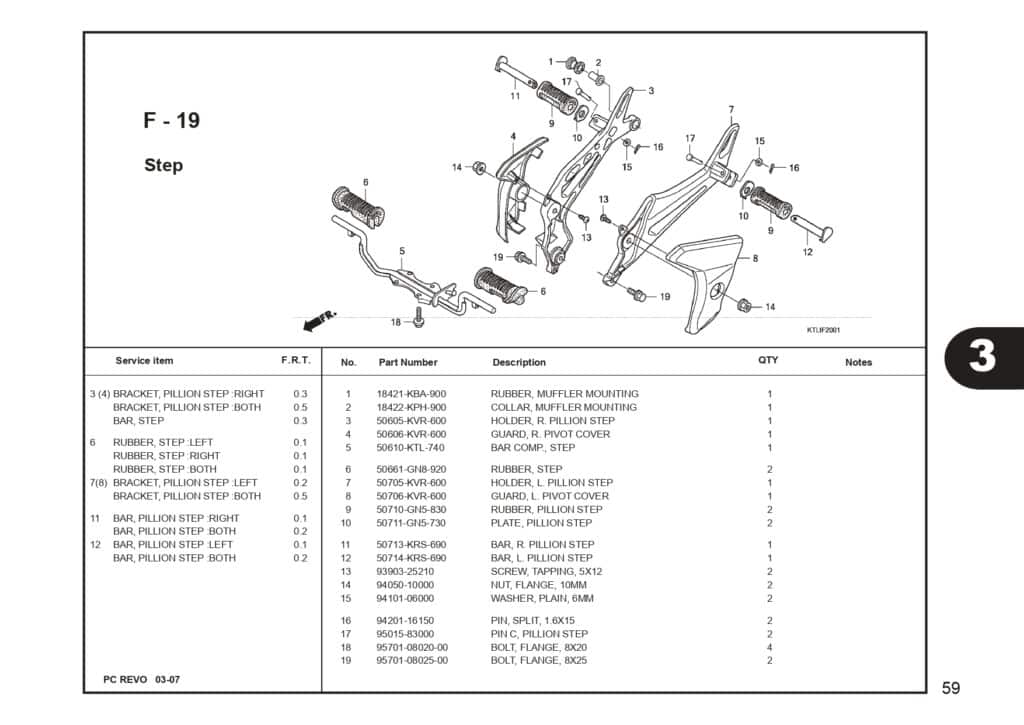

F-19 Step – Katalog Suku Cadang Honda Revo 100

#	Informasi Produk	Visual
1	RUBBER MUFF.MOUNT Part Number : `18421KBA900`
2	COLLAR MUFFLER MOUN Part Number : `18422KPH900`
3	HOLDER R PILLION ST Part Number : `50605KVR600`
4	GUARD R PIVOT COVER Part Number : `50606KVR600`
5	BAR COMP STEP Part Number : `50610KTL740`
6	RUBBER STEP Part Number : `50661GN8920`
7	HOLDER L P STEP Part Number : `50705KVR600`
8	GUARD L PIVOT COVER Part Number : `50706KVR600`
9	RUBBER PILLION Part Number : `50710GN5830`
10	PLATE PILLION STEP Part Number : `50711GN5730`
11	50713KRS690 Part Number : `50713KRS690`
12	50714KRS690 Part Number : `50714KRS690`
13	SCREW TAPPING 5X12 Part Number : `9390325210`
14	NUT FLANGE10MM Part Number : `9405010000`
15	WASHER PLAIN 6MM Part Number : `9410106000`
16	PIN COTTER 16X15 Part Number : `9420116150`
17	PIN C PILL STEP Part Number : `9501583000`
18	BOLT FLANGE 8X20 Part Number : `957010802000`
19	BOLT FLANGE 8X25 Part Number : `957010802500`
