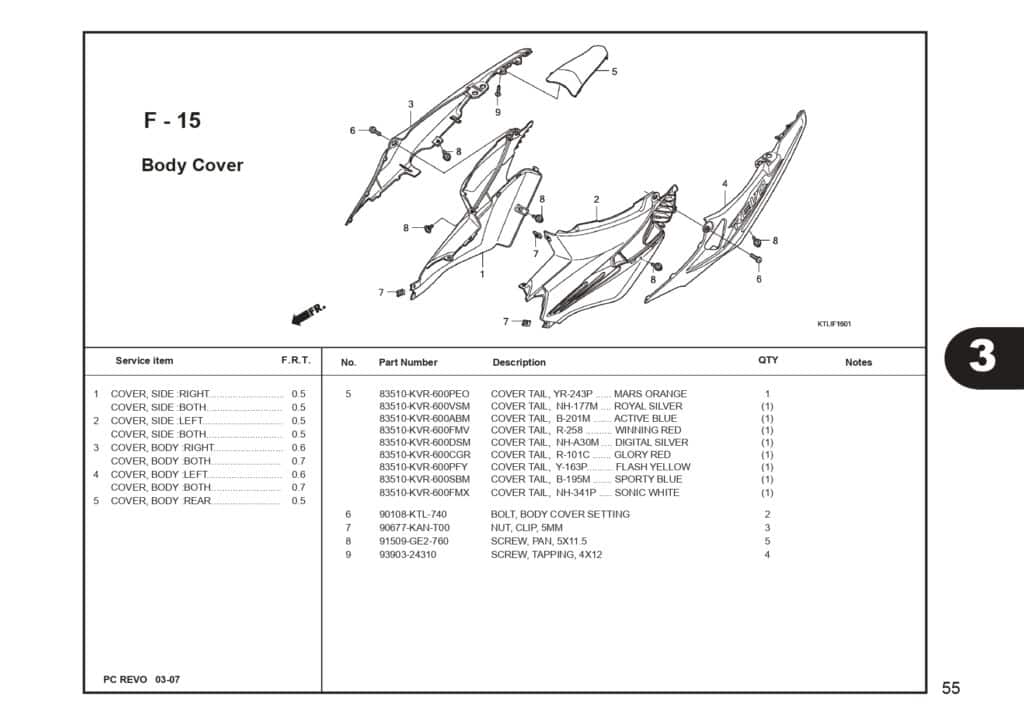

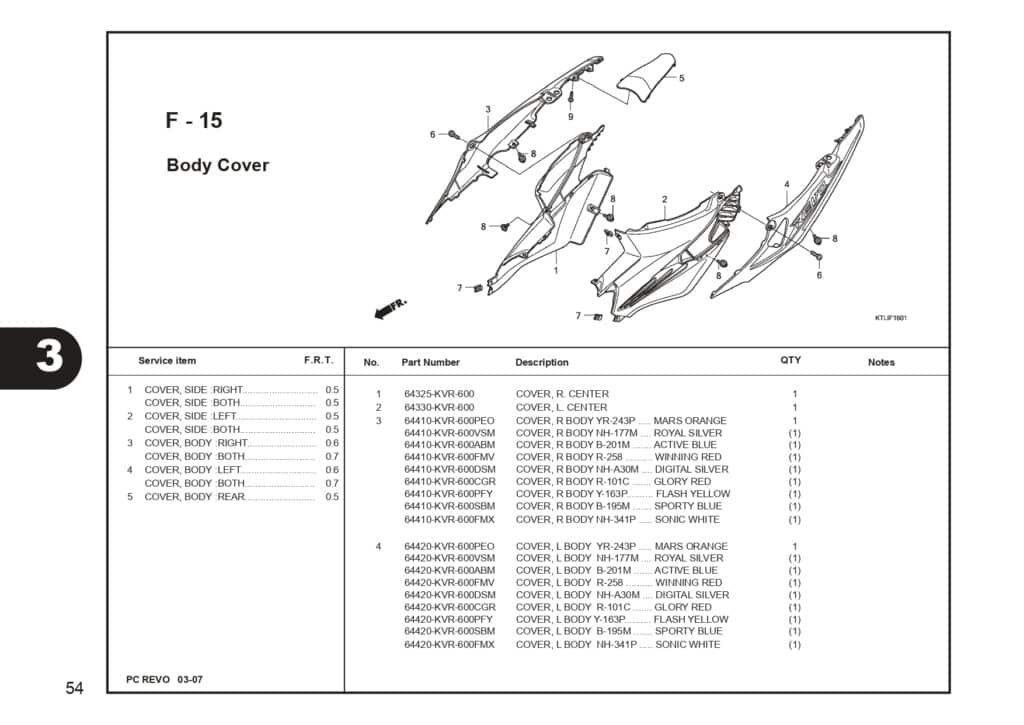

F-15 Body Cover – Katalog Suku Cadang Honda Revo 100
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
64325KVR600 |
64325KVR600 |
-
|
| 2 |
64330KVR600 |
64330KVR600 |
-
|
| 3 |
64410KVR600PEO |
64410KVR600PEO |
-
|
| 3 |
COVER R BODY(VO SL MT-A) |
64410KVR600VSM |
-
|
| 3 |
64410KVR600ABM |
64410KVR600ABM |
-
|
| 3 |
64410KVR600FMV |
64410KVR600FMV |
-
|
| 3 |
COVER R BODY(DG SL MT-A) |
64410KVR600DSM |
-
|
| 3 |
COVER R BODY(CN GL RD-A) |
64410KVR600CGR |
-
|
| 3 |
COVER R BODY(PL FL YL-A) |
64410KVR600PFY |
-
|
| 3 |
COVER R BODY(SP BL MT-A) |
64410KVR600SBM |
-
|
| 3 |
COVER R BODY(PL FD WH-A) |
64410KVR600FMX |
-
|
| 4 |
64420KVR600PEO |
64420KVR600PEO |
-
|
| 4 |
COVEL L BODY(VO SL MT-A) |
64420KVR600VSM |
-
|
| 4 |
64420KVR600ABM |
64420KVR600ABM |
-
|
| 4 |
64420KVR600FMV |
64420KVR600FMV |
-
|
| 4 |
COVER L BODY(DG SL MT-A) |
64420KVR600DSM |
-
|
| 4 |
COVER L BODY(CN GL RD-A) |
64420KVR600CGR |
-
|
| 4 |
COVER L BODY(PL FL YL-A) |
64420KVR600PFY |
-
|
| 4 |
COVER L BODY(SP BL MT-A) |
64420KVR600SBM |
-
|
| 4 |
COVER L BODY(PL FD WH-A) |
64420KVR600FMX |
-
|
| 5 |
83510KVR600PEO |
83510KVR600PEO |
-
|
| 5 |
COVER TAIL(VO SL MT-A) |
83510KVR600VSM |
-
|
| 5 |
83510KVR600ABM |
83510KVR600ABM |
-
|
| 5 |
83510KVR600FMV |
83510KVR600FMV |
-
|
| 5 |
COVER TAIL(DG SL MT-A) |
83510KVR600DSM |
-
|
| 5 |
COVER TAIL(CN GL RD-A) |
83510KVR600CGR |
-
|
| 5 |
COVER TAIL(PL FL YL-A) |
83510KVR600PFY |
-
|
| 5 |
COVER TAIL(SP BL MT-A) |
83510KVR600SBM |
-
|
| 5 |
COVER TAIL(PL FD WH-A) |
83510KVR600FMX |
-
|
| 6 |
BOLT BODY COVER SET |
90108KTL740 |
-
|
| 7 |
NUT CLIP 5MM. |
90677KANT00 |
|
| 8 |
SCREW PAN 5X11.5 |
91509GE2760 |
|
| 9 |
SCREW TAPPING 4X12 |
9390324310 |
|
