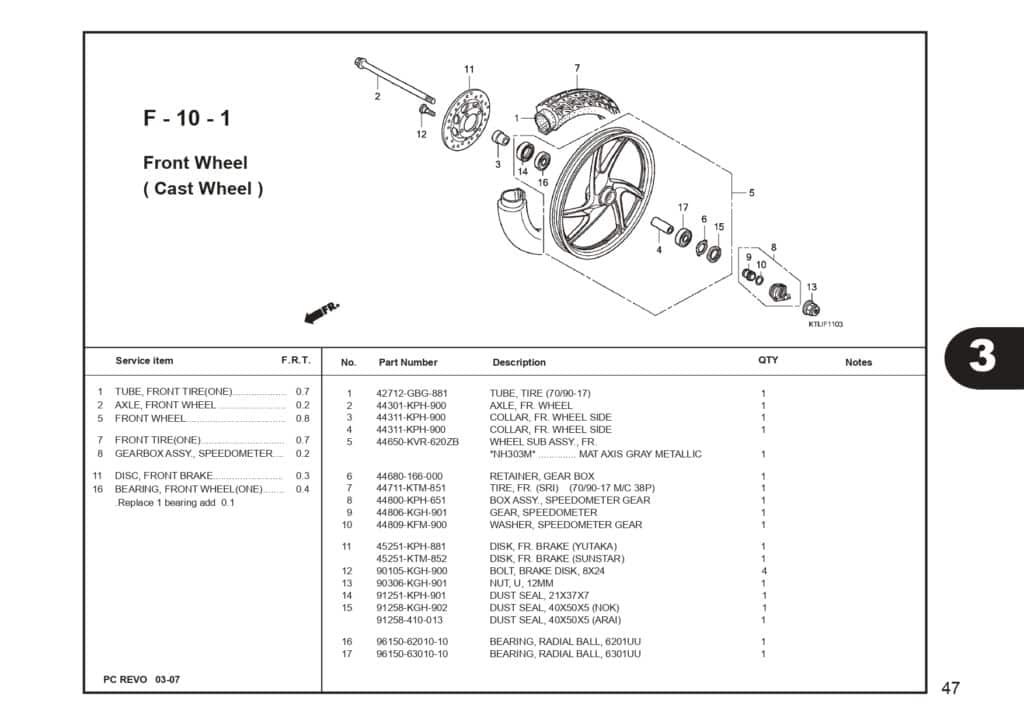

F-10-1 Front Wheel Cast Wheel – Katalog Suku Cadang Honda Revo 100

#	Informasi Produk	Visual
1	42712GBG881 Part Number : `42712GBG881`
2	AXLE FR WHEEL Part Number : `44301KPH900`
3	COLLAR FR WHEEL SIDE Part Number : `44311KPH900`
4	COLLAR FR WHEEL SIDE Part Number : `44311KPH900`
5	44650KVR620ZB Part Number : `44650KVR620ZB`
6	RETAINER GR.BOX Part Number : `44680166000`
7	TIRE FR TT (70/90-17) Part Number : `44711KTM850`
8	BOX SPEEDOMETER GEAR Part Number : `44800KPH651`
9	GEAR,SPDMT Part Number : `44806KGH901`
10	WASHER,SPDMT GEAR Part Number : `44809KFM900`
11	DISK FR BRAKE Part Number : `45251KPH881`
11	DISK FR BRAKE Part Number : `45251KTMN01`
12	BOLT BRK DISK 8X24 Part Number : `90105KGH900`
13	NUT,U,12MM Part Number : `90306KGH901`
14	DUST SEAL 21 X 37 X 7 Part Number : `91251KPH901`
15	DUST SEAL,40X50X5 Part Number : `91258KGH902`
15	DUST,SEAL 40X50X5 Part Number : `91258410014`
16	BEARING,BALL,RADIAL,6201(UU) Part Number : `961506201010`
17	BEARING,BALL,RADIAL 6301 Part Number : `961006301000`
