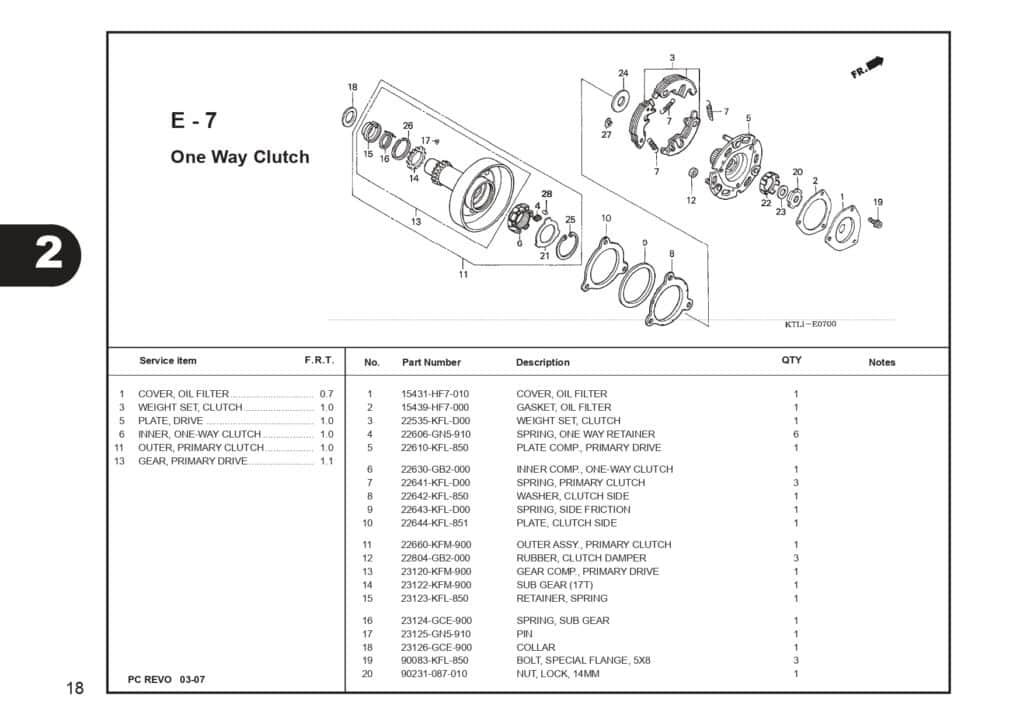

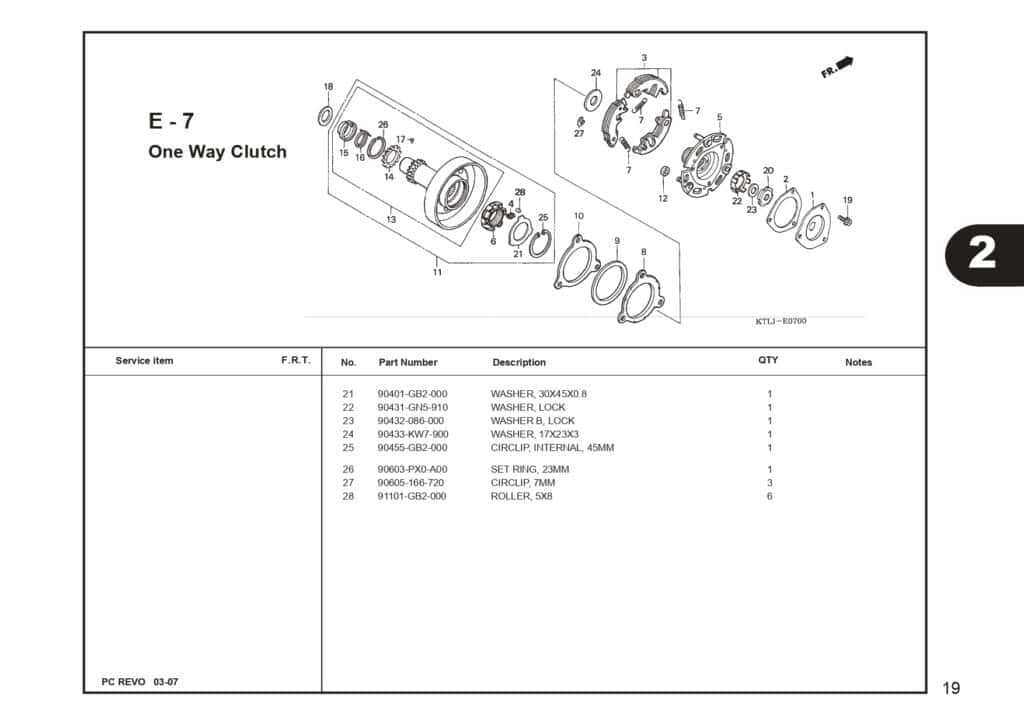

E-7 One Way Clutch – Katalog Suku Cadang Honda Revo 100

#	Informasi Produk	Visual
1	COVER OIL FILTER Part Number : `15431HF7010`
2	GASKET OIL FILTER Part Number : `15439HF7000`
3	22535KFLD00 Part Number : `22535KFLD00`
4	SPRING,ONEWAY RET LBL Part Number : `22606GN5910`
5	PLATE COMP,PRIMARY DRIVE Part Number : `22610KFL850`
6	INNER COMP ONE WAY CLUTCH Part Number : `22630GB2001`
7	SPRING PRIMARY CLUTCH Part Number : `22641KFL851`
8	WASHER, CLUTCH SIDE Part Number : `22642KFL850`
9	SPG SIDE FRICTION Part Number : `22643KFLD00`
10	PLATE, CLUTCH SIDE Part Number : `22644KFL851`
11	OUTER ASSY PRIMARY CLUTCH Part Number : `22660KFM900`
12	RUBBER CLUTCH DAMPER Part Number : `22804GB2000`
13	GEAR COMP PRIMARY Part Number : `23120KFM900`
14	GEAR,SUB Part Number : `23122KFM900`
15	RETAINER, SPG Part Number : `23123KFL850`
16	SPG,SUB GEAR LBL Part Number : `23124GCE900`
17	PIN Part Number : `23125GN5910`
18	COLLAR Part Number : `23126GCE900`
19	BOLT,SPL FLANGE 5X8 Part Number : `90083KFL850`
20	NUT LOCK 14MM Part Number : `90231087010`
21	WASHER,30X45X0,8 Part Number : `90401GB2000`
22	WASHER LOCK Part Number : `90431GN5910`
23	WASHER BLOCK Part Number : `90432086000`
24	WASHER,17X23X3 Part Number : `90433KW7900`
25	CIRCLIP,INT 45 MM Part Number : `90455GB2000`
26	SET RING,23MM Part Number : `90603PX0A00`
27	CIRCLIP 7MM Part Number : `90605166720`
28	ROLLER, 5X8 Part Number : `91101GB2000`
