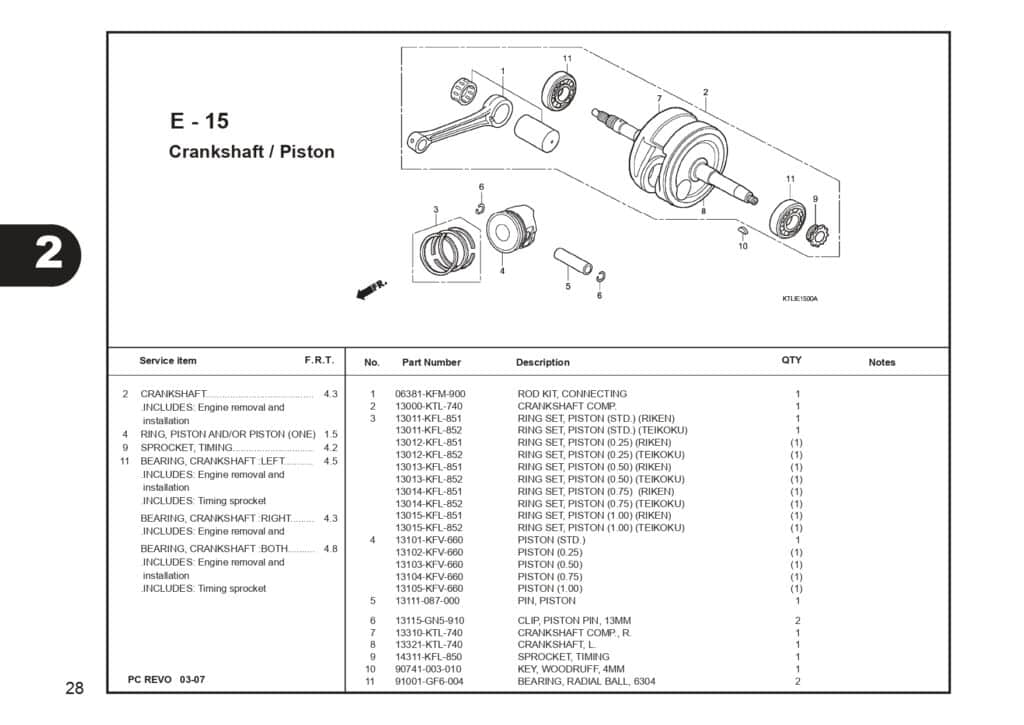

E-15 Cranksaft Piston – Katalog Suku Cadang Honda Revo 100

#	Informasi Produk	Visual
1	06381KFM900 Part Number : `06381KFM900`
2	CRANKSHAFT COMP Part Number : `13000KTL740`
3	13011KFL851 Part Number : `13011KFL851`
3	RING SET, PISTON (STD) Part Number : `13011KFL852`
3	13012KFL851 Part Number : `13012KFL851`
3	RING SET, PISTON (0.25) Part Number : `13012KFL852`
3	13013KFL851 Part Number : `13013KFL851`
3	RING SET, PISTON (0.50) Part Number : `13013KFL852`
3	13014KFL851 Part Number : `13014KFL851`
3	RING SET, PISTON(0.75) Part Number : `13014KFL852`
3	13015KFL851 Part Number : `13015KFL851`
3	3015KFL852 Part Number : `3015KFL852`
4	13101KFV660 Part Number : `13101KFV660`
4	13102KFV660 Part Number : `13102KFV660`
4	13103KFV660 Part Number : `13103KFV660`
4	13104KFV660 Part Number : `13104KFV660`
4	13105KFV660 Part Number : `13105KFV660`
5	PIN PISTON Part Number : `13111087001`
6	CLIP, PISTON PIN, 13MM Part Number : `13115GN5910`
7	13310KTL740 Part Number : `13310KTL740`
8	13321KTL740 Part Number : `13321KTL740`
9	14311KFL850 Part Number : `14311KFL850`
10	KEYWOODRUFF 4MM Part Number : `90741003010`
11	BEARING, RADIAL BALL, 6304 Part Number : `91001GF6004`
