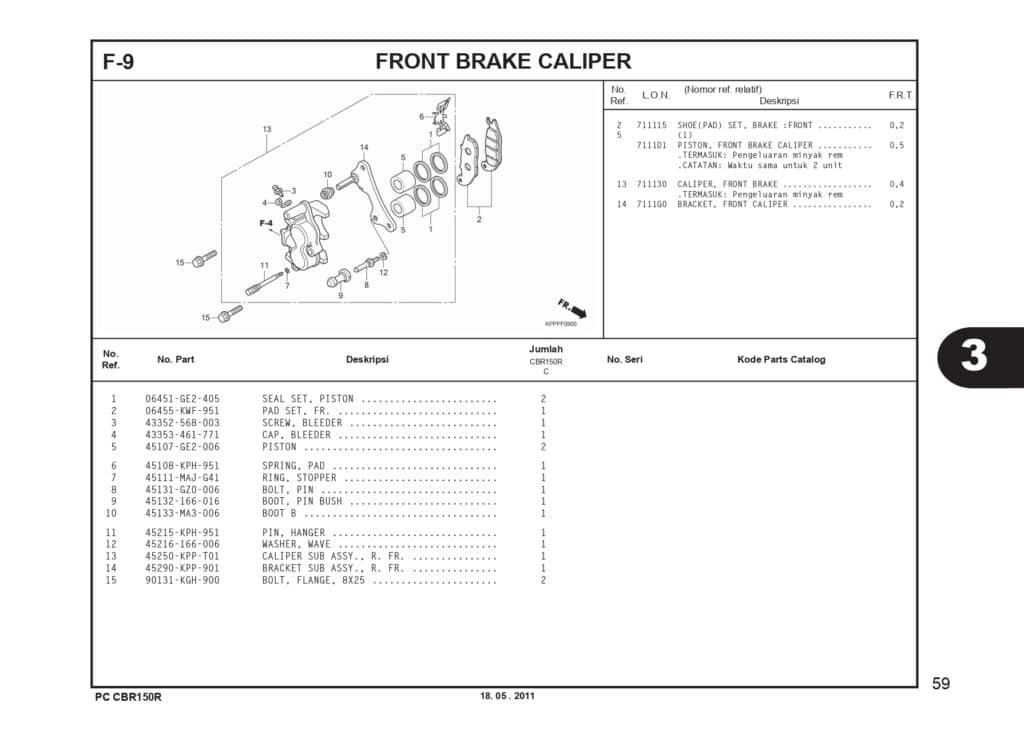

F-9 Front Brake Caliper – Katalog Suku Cadang Honda CBR 150R CBU

#	Informasi Produk	Visual
1	SEALSET,PISTON Part Number : `06451GE2405`
2	PAD SET, FR. Part Number : `06455KWF951`
3	SCREW,BLEEDER Part Number : `43352568003`
4	CAP,BLEEDER Part Number : `43353461771`
5	PISTON Part Number : `45107GE2006`
6	SPRIND PAD Part Number : `45108KPH951`
7	O-RING,2.5X1.5 Part Number : `45111MAJG41`
8	PIN,BOLT Part Number : `45131GZ0006`
9	BUSH PIN Part Number : `45132166016`
10	BOOT B,PIN Part Number : `45133MA3006`
11	PIN HANGER Part Number : `45215KPH951`
12	WASHER,WAVE Part Number : `45216166006`
13	CALIPER SUBASSY,R Part Number : `45250KPPT01`
14	BRKT SUB ASSY FR Part Number : `45290KPP901`
15	BOLT,FLANGE,8X25 Part Number : `90131KGH900`
