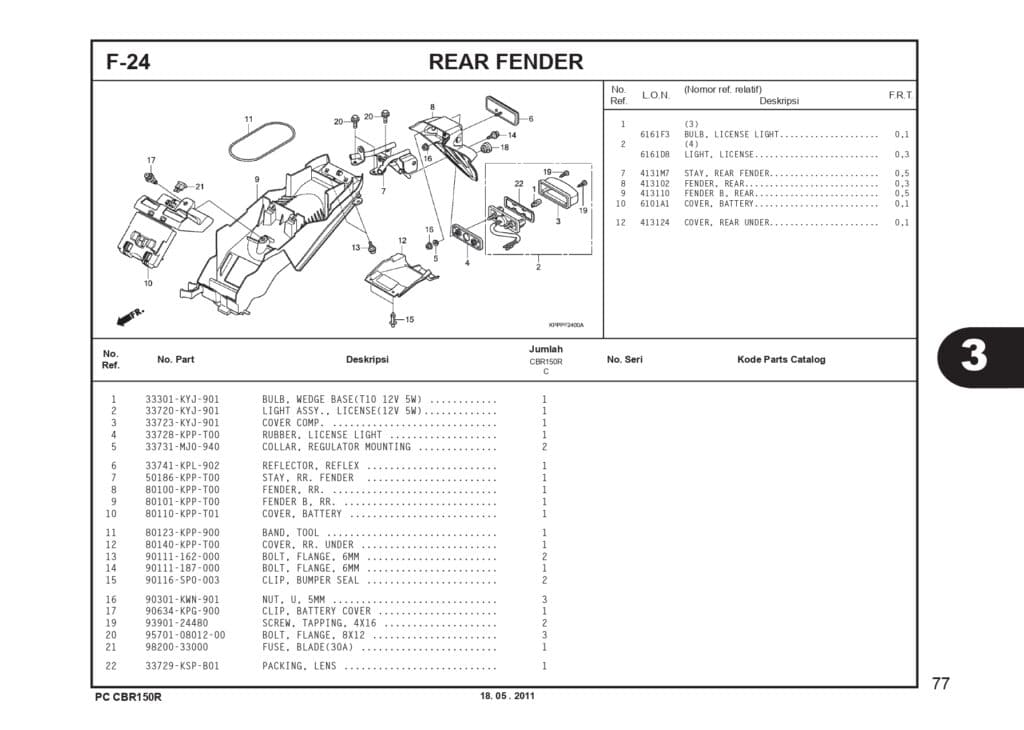

F-24 Rear Fender – Katalog Suku Cadang Honda CBR 150R CBU
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
BULB WED BS(T10 12V 5W) |
33301KYJ901 |
-
|
| 2 |
LIGHT ASSY LICEN(12V 5W) |
33720KYJ901 |
-
|
| 3 |
COVER COMP |
33723KYJ901 |
-
|
| 4 |
RUBBER,LICENSE LIGHT |
33728KPPT00 |
-
|
| 5 |
COLLAR,REGULATOR MOUNT |
33731MJ0940 |
-
|
| 6 |
REFLEX REFLECTOR |
33741KPL902 |
|
| 7 |
STAY,RR FENDER |
50186KPPT00 |
-
|
| 8 |
FENDER RR |
80100KPPT00 |
-
|
| 9 |
FENDER,REAR B |
80101KPPT00 |
-
|
| 10 |
COVER,BATTERY |
80110KPPT01 |
-
|
| 11 |
BAND TOOL |
80123KPP900 |
-
|
| 12 |
COVER,RR UNDER |
80140KPPT00 |
-
|
| 13 |
BOLT FLANGE 6MM |
90111162000 |
|
| 14 |
BOLT FLANGE 6MM |
90111187000 |
|
| 15 |
CLIP,BPR SEAL |
90116K2PV61 |
|
| 16 |
NUT, U, 5MM |
90301KWN901 |
|
| 17 |
CLIP, BATT COVER |
90634KPG901 |
-
|
| 19 |
SCREW,TAPP 4X16 |
9390124480 |
|
| 20 |
BOLT, FLANGE, 8X12 |
957010801200 |
|
| 21 |
FUSE 30A. |
9820033000 |
|
| 22 |
PACKING,LENS |
33729KSPB01 |
-
|
