F-17 Air Cleaner – Katalog Suku Cadang Honda CBR 150R CBU

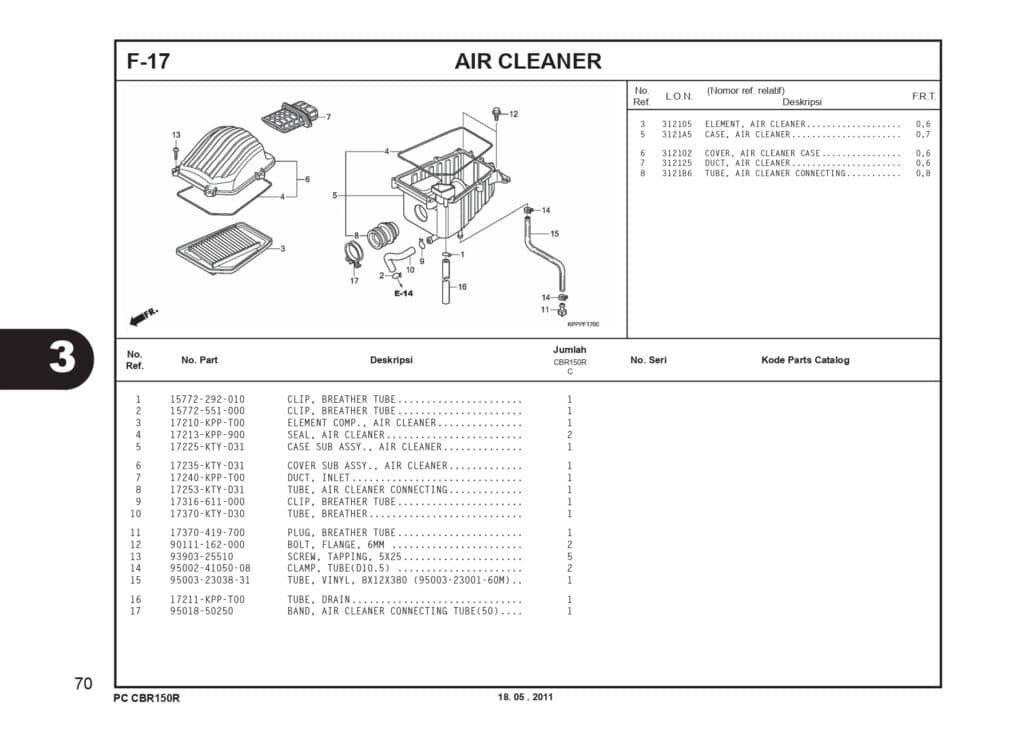

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 CLIP,TUBE 15772292010 -
2 CLIP,TUBE 15772551000 CLIP,TUBE
3 ELMNT COMP., AIR CLEANER 17210KPPT00 ELMNT COMP., AIR CLEANER
4 SEAL,AIR/C 17213KPP900 -
5 CASE SUB ASSY,AIR/C 17225KTYD31 -
6 COVER SUB ASSY,AIR/C 17235KTYD31 -
7 DUCT,INLET 17240KPPT00 -
8 TUBE,AIR/C CONN 17253KTYD31 -
9 CLIP BREATHER TUBE 17316611000 -
10 TUBE,BREATHER 17370KTYD30 -
11 PLUG BRTHR.TUBE 17370419700 PLUG BRTHR.TUBE
12 BOLT FLANGE 6MM 90111162000 BOLT FLANGE 6MM
13 SCREW TAPPING 5X25 9390325510 SCREW TAPPING 5X25
14 CLIP,TUBE,10.5MM 950024105008 CLIP,TUBE,10.5MM
15 V.TUBE 8X12X380 950032303831 -
16 TUBE,DRAIN 17211KPPT00 -
17 BAND 50,AIR/C TUBE 9501850250 BAND 50,AIR/C TUBE
