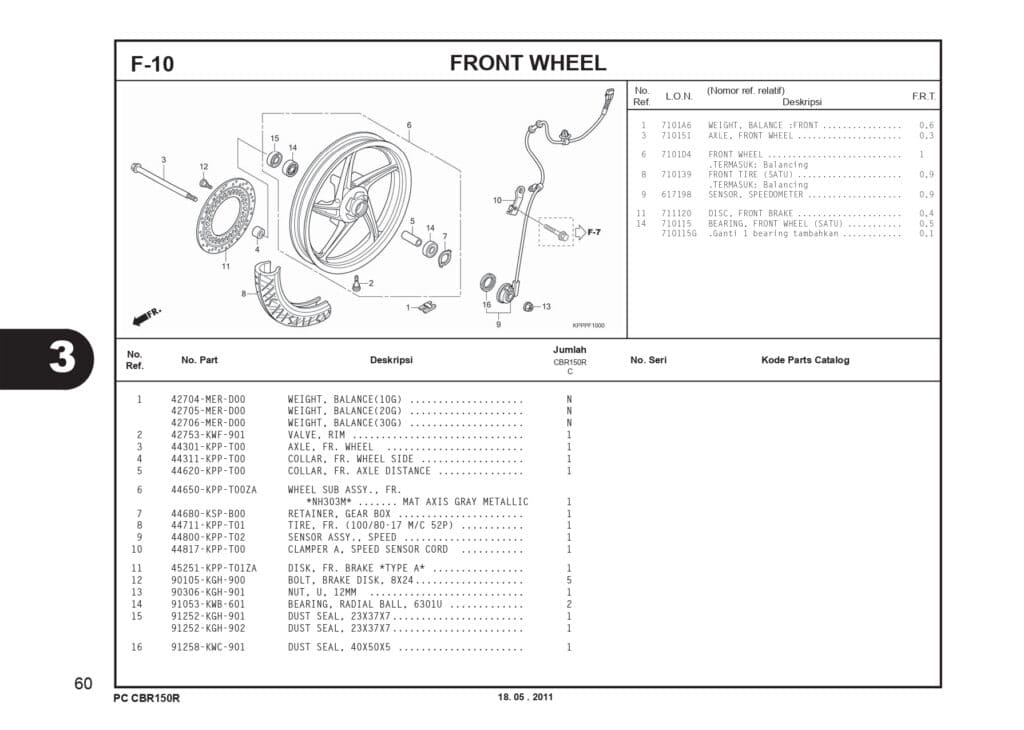

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | WEIGHT, BALANCE(10G) | 42704MERD00 |
|
| 1 | WEIGHT, BALANCE(20G) | 42705MERD00 |
|
| 1 | WEIGHT, BALANCE(30G) | 42706MERD00 |
|
| 2 | VALVE,RIM(TRITON) | 42753KWF901 |
|
| 3 | AXLE,FR WHEEL | 44301KPPT00 | - |
| 4 | COLLAR,FR WHEEL SD | 44311KPPT00 | - |
| 5 | COLLAR,FR AXLE DIT BRG | 44620KPPT00 | - |
| 6 | 44650KPPT01ZA | 44650KPPT00ZA | - |
| 6 | WHEEL SUB ASSY,FR PRSNPB1 | 44650KPPT01ZA | - |
| 6 | WHEEL SUB ASSY,FR PRSNPB1 | 44650KPPT01ZB | - |
| 7 | RETAINER GEAR BOX | 44680KSPB00 |
|
| 8 | TIRE FR TL (100/80-17) | 44711KPPT01 |
|
| 9 | SENSOR ASSY,SPEED | 44800KPPT02 |
|
| 10 | CLAMPER A,SPEED S | 44817KPPT00 | - |
| 11 | DISK,FR BRAKE | 45251KPPT01ZA | - |
| 12 | BOLT BRK DISK 8X24 | 90105KGH900 |
|
| 13 | NUT,U,12MM | 90306KGH901 |
|
| 14 | BRG, BALL RADIAL 6301(U) | 91053KWB601 |
|
| 15 | DUST SEAL, 23X37X7 | 91252KGH901 |
|
| 15 | DUST SEAL, 23X37X7 | 91252KGH902 |
|
| 16 | 91258KWC901 | 91258KWC901 | - |
