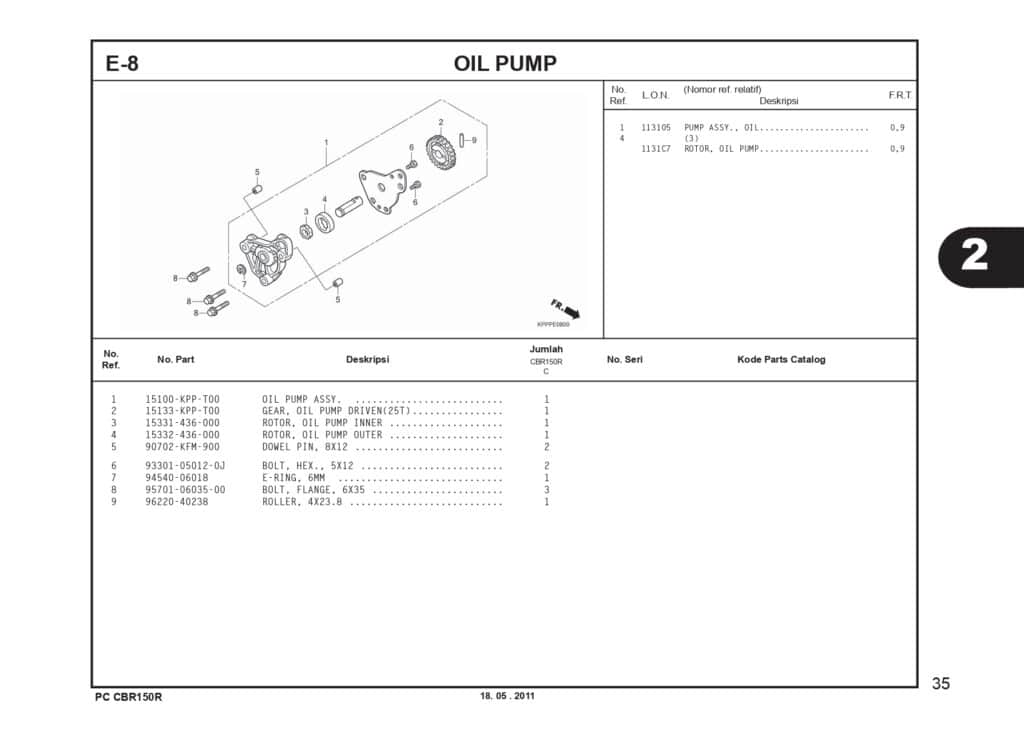

E-8 Oil Pump – Katalog Suku Cadang Honda CBR 150R CBU

#	Informasi Produk	Visual
1	OIL PUMP ASSY Part Number : `15100KPPT00`
1	Oil Pump Assy Part Number : `15100KPPT01`
2	GEAR,OIL PUMP DRIVEN Part Number : `15133KPPT00`
3	ROTOR OIL PUMP IN Part Number : `15331436000`
4	ROTOR OIL PMP.OUT. Part Number : `15332436000`
5	PIN DOWEL 8X12 Part Number : `90702KFM900`
6	BOLT, HEX 5 X 12 Part Number : `93301050120J`
7	E RING, 6 Part Number : `9454006018`
8	BOLT FLANGE 6X35 Part Number : `957010603500`
9	ROLLER, 4X23.8 Part Number : `9622040238`
