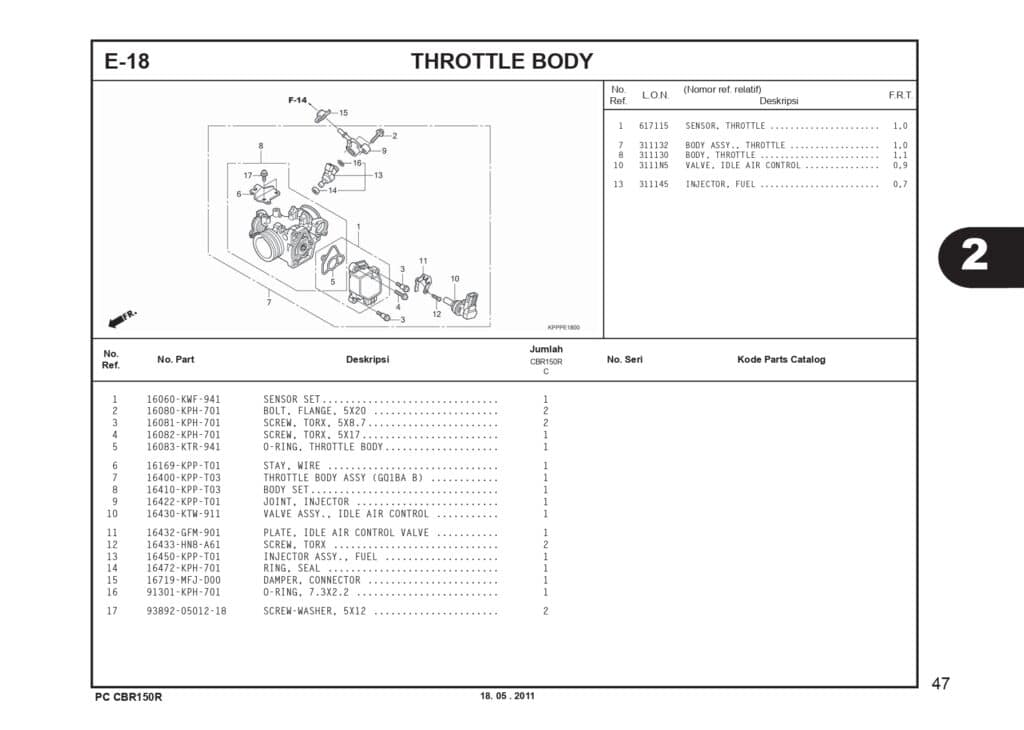

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SENSOR SET | 16060KWF941 | - |
| 2 | BOLT,FLANGE 5X20 | 16080KPH701 |
|
| 3 | SCREW, TORX, 5X8.7 | 16081KPH701 |
|
| 4 | SCREW,TORX 5X17 | 16082KPH701 |
|
| 5 | O-RING,THROTTLE BODY | 16083KTR941 |
|
| 6 | STAY,WIRE | 16169KPPT01 | - |
| 7 | THROTTLEBODY ASSY | 16400KPPT03 | - |
| 8 | BODY SET | 16410KPPT03 | - |
| 9 | JOINT,INJECTOR | 16422KPPT01 | - |
| 10 | IACV SET | 16430KTW911 | - |
| 11 | PLATE,IACV | 16432GFM901 |
|
| 12 | SCREW,TORX | 16433HN8A61 |
|
| 13 | INJECTOER ASSY,FUEL | 16450KPPT01 | - |
| 14 | RING, SEAL | 16472KPH701 |
|
| 15 | DAMPER,CONNECTOR | 16719MFJD00 | - |
| 16 | O-RING 7.3X3.2 | 91301KPH701 |
|
| 17 | SCREW WASHER 5X12 | 938920501218 |
|
