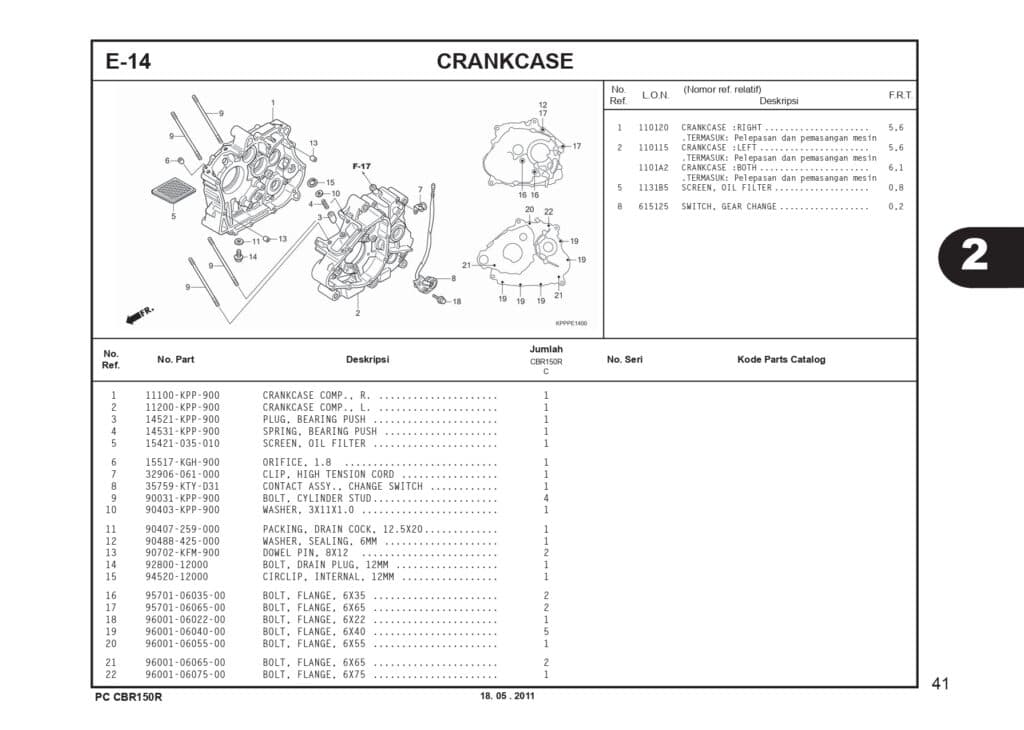

E-14 Crankcase – Katalog Suku Cadang Honda CBR 150R CBU

#	Informasi Produk	Visual
1	CRANK CASE,COMP,R Part Number : `11100KPP900`
2	CRANK CASE COMP,L Part Number : `11200KPP900`
3	PLUG,BRG PUSH Part Number : `14521KPP900`
4	SPRING,BRG PUSH Part Number : `14531KPP900`
5	SCREEN OIL FILTER Part Number : `15421035010`
6	ORIFICE 1.8 Part Number : `15517KGH900`
7	CLIP,CORD. Part Number : `32906061000`
8	CONTACT ASSY,CHANGE Part Number : `35759KTYD31`
9	BOLT STUD CYLN Part Number : `90031KPP900`
10	WASHER,3X11X1.0 Part Number : `90403KPP900`
11	PACKING COCK Part Number : `90407259000`
12	WASHER SEALING Part Number : `90488425000`
13	PIN DOWEL 8X12 Part Number : `90702KFM900`
14	DRAINCOCK Part Number : `9280012000`
15	CIRCLIP 12MM Part Number : `9452012000`
16	BOLT FLANGE 6X35 Part Number : `957010603500`
17	BOLT FLANGE 6X65 Part Number : `957010606500`
18	BOLT FLANGE 6X22 Part Number : `960010602200`
19	BOLT FLANGE 6X40 Part Number : `960010604000`
20	BOLT FLANGE SH 6X55 Part Number : `960010605500`
21	BOLT FLANGE 6X65 Part Number : `960010606500`
22	BOLT,FLANGE 6X75 Part Number : `960010607500`
