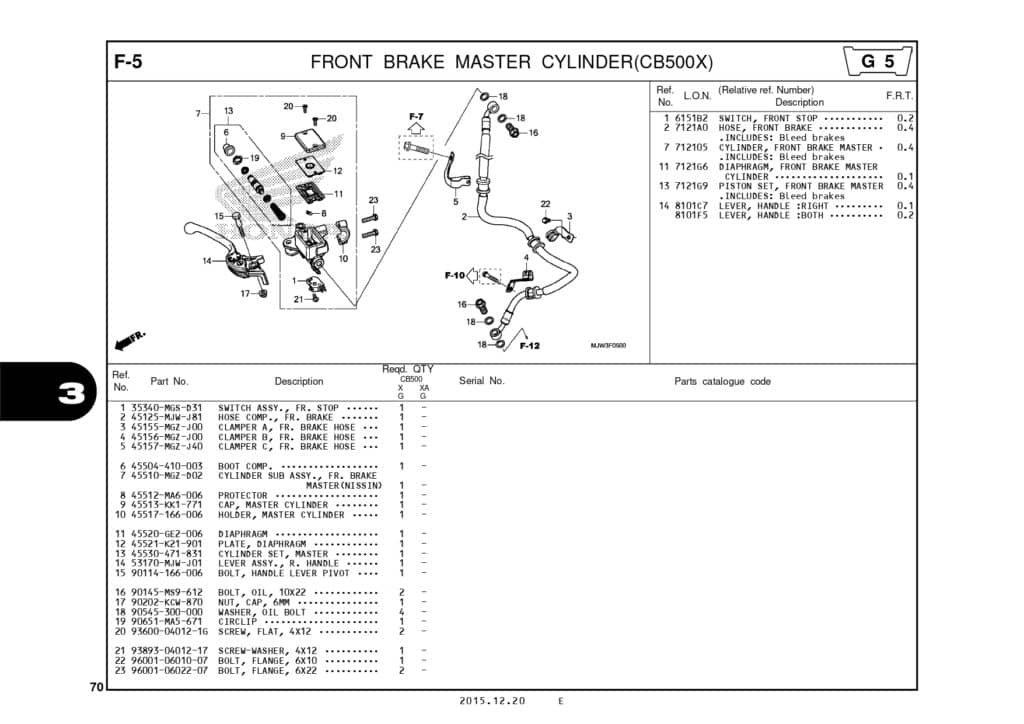

F-5 Front Brake Master Cylinder CB500X – Katalog Suku Cadang Honda CB500X MJW

#	Informasi Produk	Visual
1	SWITCH FR STOP ASSY Part Number : `35340MGSD31`
2	HOSE COMP. A, FR. BRAKE Part Number : `45125MJWJ81`
3	CLAMPER A, FR. BRAKE HOSE Part Number : `45155MGZJ00`
4	CLAMPER B, FR. BRAKE HOSE Part Number : `45156MGZJ00`
5	CLAMPER C, FR. BRAKE HOSE Part Number : `45157MGZJ40`
6	BOOT COMP Part Number : `45504410003`
7	CYLINDER SUB ASSY., FR. BRAKE Part Number : `45510MGZD02`
8	PROTECTOR Part Number : `45512MA6006`
9	CAP MASTER CYLINDER Part Number : `45513KK1771`
10	HOLDER MASTER CYL Part Number : `45517166006`
11	DIAPHRAGM Part Number : `45520GE2006`
12	PLATE DIAPHRAGM Part Number : `45521K21901`
13	CYLINDER SET,MAS Part Number : `45530471831`
14	LEVER ASSY., R. HANDLE Part Number : `53170MJWJ01`
15	BOLT, HANDLE LEVER PIVOT Part Number : `90114166006`
16	BOLT OIL 10X22 Part Number : `90145MS9612`
17	NUT, CAP, 6MM Part Number : `90202KCW870`
18	WASHER OIL BOLT Part Number : `90545300000`
19	CIRCLIP Part Number : `90651MA5671`
20	SCREW FLAT, 4X12 Part Number : `93600040121G`
21	SCREW WASHER 4X12 Part Number : `938930401217`
22	BOLT,FLANGE,SH 6X10 Part Number : `960010601007`
23	BOLT FLANGE 6X22 Part Number : `960010602207`
