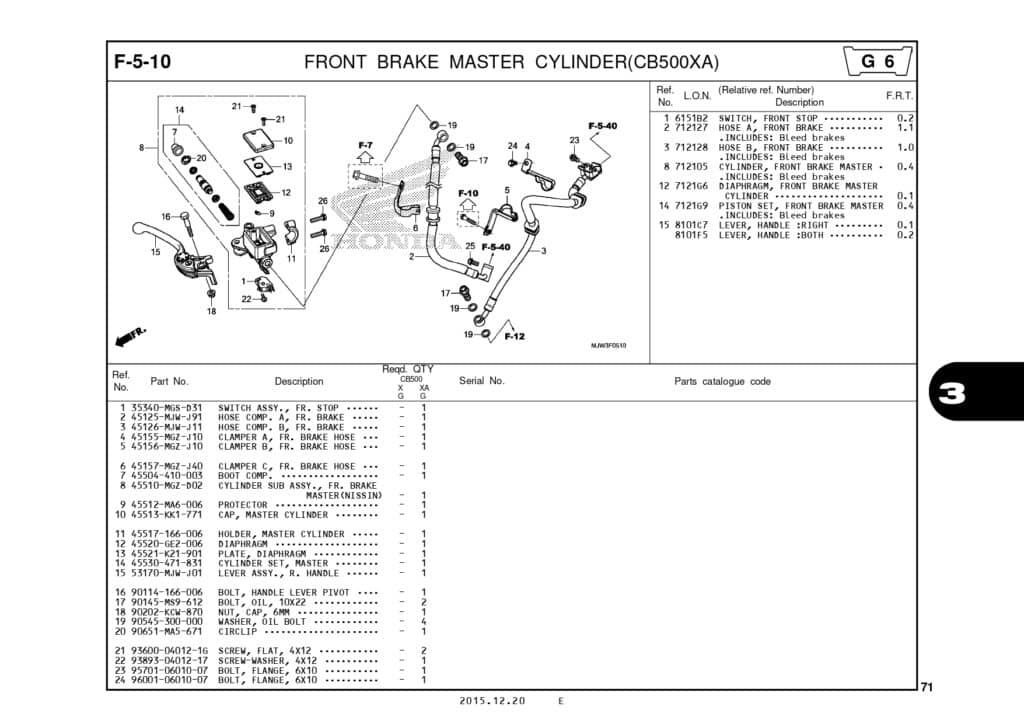

F-5-10 Front Brake Master Cylinder CB500XA – Katalog Suku Cadang Honda CB500X MJW

#	Informasi Produk	Visual
1	SWITCH FR STOP ASSY Part Number : `35340MGSD31`
2	HOSE COMP. A, FR. BRAKE Part Number : `45125MJWJ91`
3	HOSE COMP. B, FR. BRAKE Part Number : `45126MJWJ11`
4	CLAMPER A, FR. BRAKE HOSE Part Number : `45155MGZJ10`
5	CLAMPER B, FR. BRAKE HOSE Part Number : `45156MGZJ10`
6	CLAMPER C, FR. BRAKE HOSE Part Number : `45157MGZJ40`
7	BOOT COMP Part Number : `45504410003`
8	CYLINDER SUB ASSY., FR. BRAKE Part Number : `45510MGZD02`
9	PROTECTOR Part Number : `45512MA6006`
10	CAP MASTER CYLINDER Part Number : `45513KK1771`
11	HOLDER MASTER CYL Part Number : `45517166006`
12	DIAPHRAGM Part Number : `45520GE2006`
13	PLATE DIAPHRAGM Part Number : `45521K21901`
14	CYLINDER SET,MAS Part Number : `45530471831`
15	LEVER ASSY., R. HANDLE Part Number : `53170MJWJ01`
16	BOLT, HANDLE LEVER PIVOT Part Number : `90114166006`
17	BOLT OIL 10X22 Part Number : `90145MS9612`
18	NUT, CAP, 6MM Part Number : `90202KCW870`
19	WASHER OIL BOLT Part Number : `90545300000`
20	CIRCLIP Part Number : `90651MA5671`
21	SCREW FLAT, 4X12 Part Number : `93600040121G`
22	SCREW WASHER 4X12 Part Number : `938930401217`
23	BOLT FLANGE 6X10 Part Number : `957010601007`
24	BOLT,FLANGE,SH 6X10 Part Number : `960010601007`
25	BOLT FLANGE 6X12 Part Number : `960010601207`
26	BOLT FLANGE 6X22 Part Number : `960010602207`
