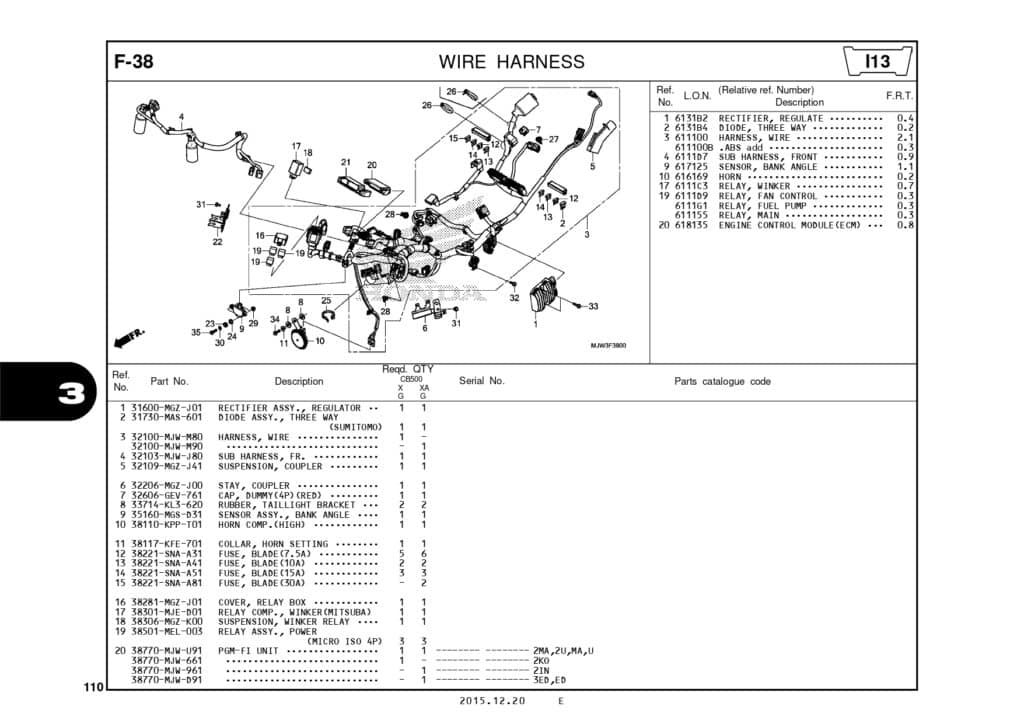

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | RECTIFIER ASSY., REGULATOR | 31600MGZJ01 | - |
| 2 | DIODE ASSY,3WAY | 31730MAS601 |
|
| 3 | 32100MJWM80 | 32100MJWM80 | - |
| 3 | HARNESS, WIRE | 32100MJWM90 | - |
| 4 | SUB HARNESS, FR. | 32103MJWJ80 | - |
| 5 | SUSPENSION, COUPLER | 32109MGZJ41 | - |
| 6 | STAY, COUPLER | 32206MGZJ00 | - |
| 7 | DUMMY,WPC 4P 090 M (RED) | 32606GEV761 |
|
| 8 | RUBTAIL/LT BRKT. | 33714KL3620 |
|
| 9 | SENSOR ASSY, BANK ANGLE | 35160MGSD31 |
|
| 10 | HORN COMP | 38110KPPT01 | - |
| 11 | COLLAR HORN SETTING | 38117KFE701 | - |
| 12 | FUSE, BLADE(7.5A) | 38221SNAA31 |
|
| 13 | FUSE, BLADE(10A) | 38221SNAA41 |
|
| 14 | FUSE, BLADE(15A) | 38221SNAA51 |
|
| 15 | FUSE, BLADE(30A) | 38221SNAA81 |
|
| 16 | COVER, RELAY BOX | 38281MGZJ01 | - |
| 17 | RELAY COMP., WINKER(MITSUBA) | 38301MJED01 | - |
| 18 | SUSPENSION, WINKER RELAY | 38306MGZK00 | - |
| 19 | 38501MKPDN1 | 38501MEL003 |
|
| 20 | 38770MJWU91 | 38770MJWU91 | - |
| 20 | 38770MJW661 | 38770MJW661 | - |
| 20 | PGM-FI UNIT | 38770MJW961 | - |
| 20 | 38770MJWD91 | 38770MJWD91 | - |
| 21 | CUSHION, PGM-FI UNIT | 38774MGZJ00 | - |
| 22 | STAY, RELAY BOX | 50194MGZJ00 | - |
| 23 | RUBBER SIDE COVER | 64535MFJD00 | - |
| 24 | COLLAR BANK ANGLE SENSOR | 90129MGZJ00 | - |
| 25 | BAND WIRE | 90651KV6003 |
|
| 26 | BAND, WIRE | 90652KT1771 |
|
| 27 | CLIP, COUPLER(DARK BROWN) | 91535TA0003 |
|
| 28 | CLIP, COUPLER(BLACK) | 91565SEL003 |
|
| 29 | NUT,FLANGE 6MM | 9405006080 |
|
| 30 | WASHER, PLAIN, 6MM | 9410306800 |
|
| 31 | BOLT FLANGE 6X10 | 957010601000 |
|
| 32 | BOLT, FLANGE, 6X14 | 957010601408 | - |
| 33 | BOLT FLANGE 6X20 | 957010602000 |
|
| 34 | BOLT FLANGE 6X20 | 957010602007 |
|
| 35 | BOLT FLANGE 6X22 | 957010602208 |
|
