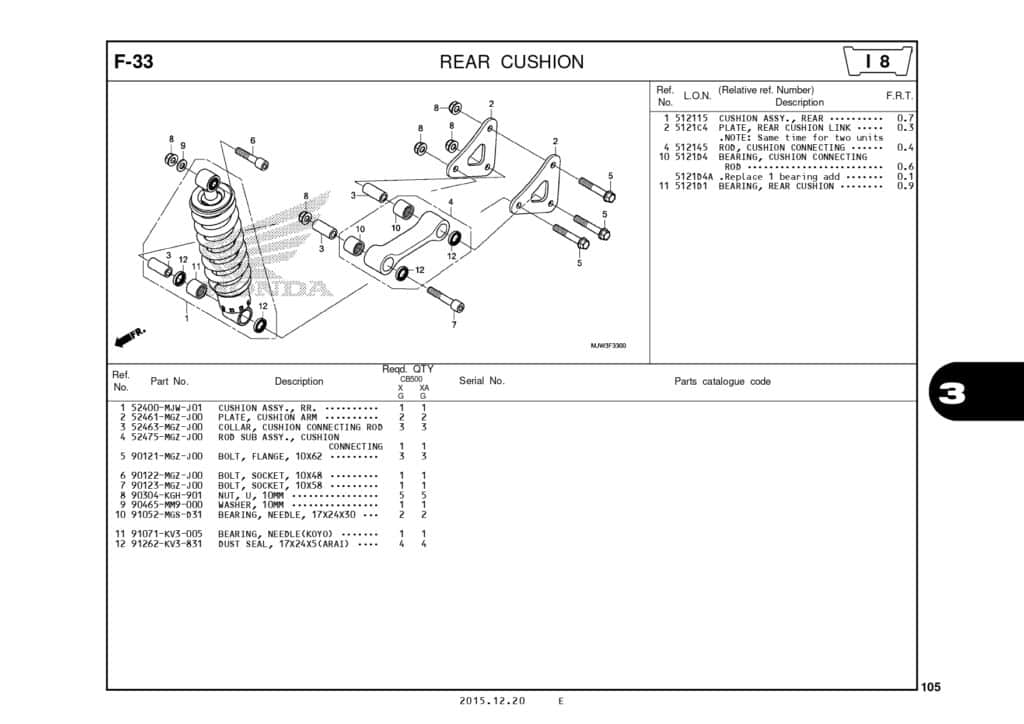

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CUSHION ASSY., RR. | 52400MJWJ01 | - |
| 2 | PLATE, CUSHION ARM | 52461MGZJ00 | - |
| 3 | COLLAR, CUSHION CONNECTING ROD | 52463MGZJ00 | - |
| 4 | ROD SUB ASSY., CUSHION | 52475MGZJ00 | - |
| 5 | BOLT, FLANGE, 10X62 | 90121MGZJ00 | - |
| 6 | BOLT, SOCKET, 10X48 | 90122MGZJ00 | - |
| 7 | BOLT, SOCKET, 10X58 | 90123MGZJ00 | - |
| 8 | NUT U10MM | 90304KGH901 |
|
| 9 | WASHER, 10MM | 90465MM9000 | - |
| 10 | BEARING, NEEDLE, 17X24X30 LBL | 91052MGSD31 | - |
| 11 | BEARING, NEEDLE(KOYO) | 91071KV3005 |
|
| 12 | DUST SEAL,17X24X5 | 91262KV3831 |
|
