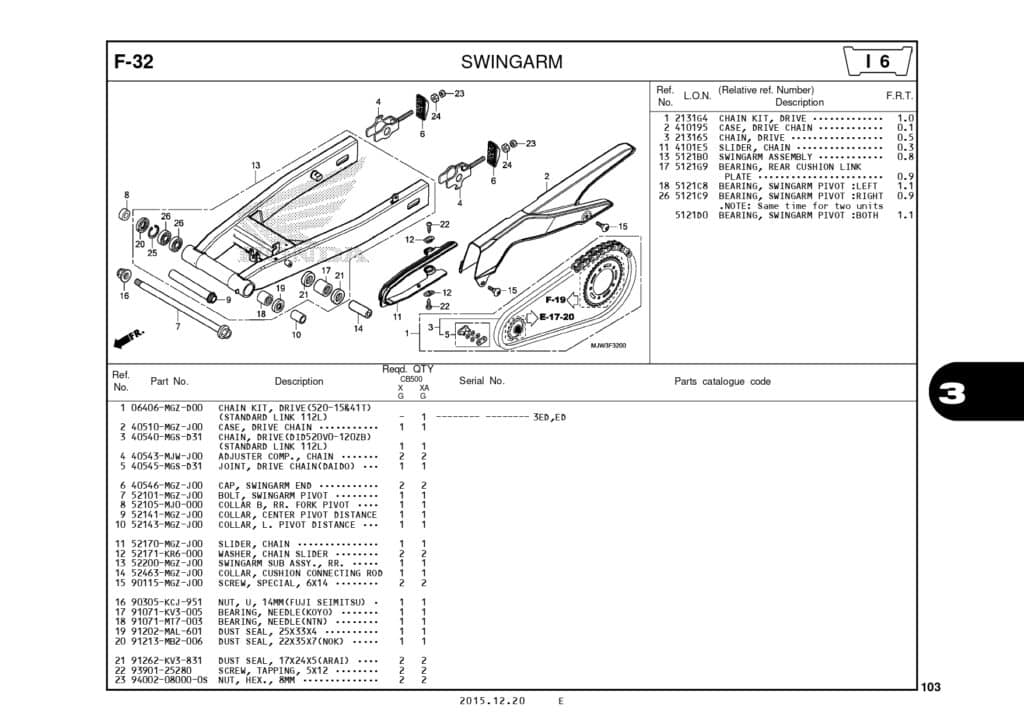

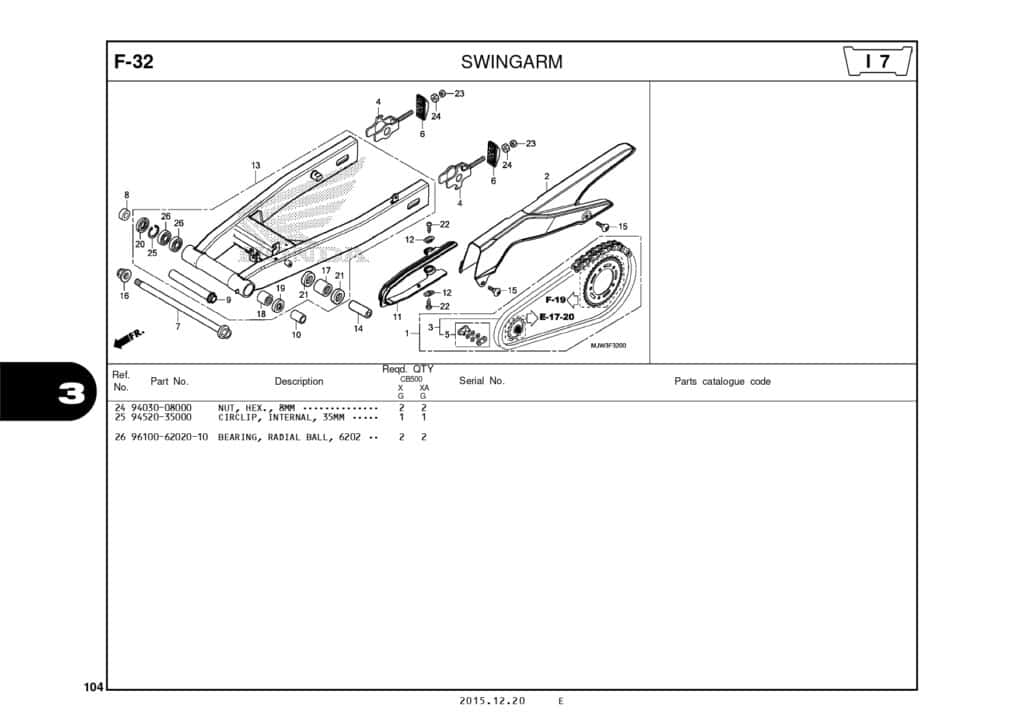

F-32 Swingarm – Katalog Suku Cadang Honda CB500X MJW

#	Informasi Produk	Visual
1	CHAIN KIT, DRIVE(520-15&41T) Part Number : `06406MGZD01`
2	CASE, DRIVE CHAIN Part Number : `40510MGZJ00`
3	CHAIN, DRIVE(DID520V0-120ZB)STD LBL Part Number : `40540MGSD31`
4	ADJUSTER COMP., CHAIN Part Number : `40543MJWJ00`
5	JOINT, DRIVE CHAIN(DAIDO) LBL Part Number : `40545MGSD31`
6	CAP, SWINGARM END Part Number : `40546MGZJ00`
7	BOLT, SWINGARM PIVOT Part Number : `52101MGZJ00`
8	COLLAR B,RR FORK PVT Part Number : `52105MJ0000`
9	COLLAR, CENTER PIVOT DISTANCE Part Number : `52141MGZJ00`
10	COLLAR, L. PIVOT DISTANCE Part Number : `52143MGZJ00`
11	SLIDER, CHAIN Part Number : `52170MGZJ00`
12	WASH.CHN.SLDR. Part Number : `52171KR6000`
13	SWINGARM SUB ASSY., RR. Part Number : `52200MGZJ00`
14	COLLAR, CUSHION CONNECTING ROD Part Number : `52463MGZJ00`
15	SCREW, SPECIAL, 6X14 Part Number : `90115MGZJ00`
16	NUT U 14 MM Part Number : `90305KCJ951`
17	BEARING, NEEDLE(KOYO) Part Number : `91071KV3005`
18	BEARING, NEEDLE(NTN) Part Number : `91071MT7003`
19	DUST SEAL, 25X33X4 Part Number : `91202MAL601`
20	DUST SEAL,22X35X7 Part Number : `91213MB2006`
21	DUST SEAL,17X24X5 Part Number : `91262KV3831`
22	SCREW, TAPPING, 5X12 Part Number : `9390125280`
23	NUT,HEX 8MM Part Number : `94002080000S`
24	NUT HEX 8MM Part Number : `9403008000`
25	CIRCLIP IN 35 Part Number : `9452035000`
26	B/BRG RAD N/COM LBL Part Number : `961006202010`
