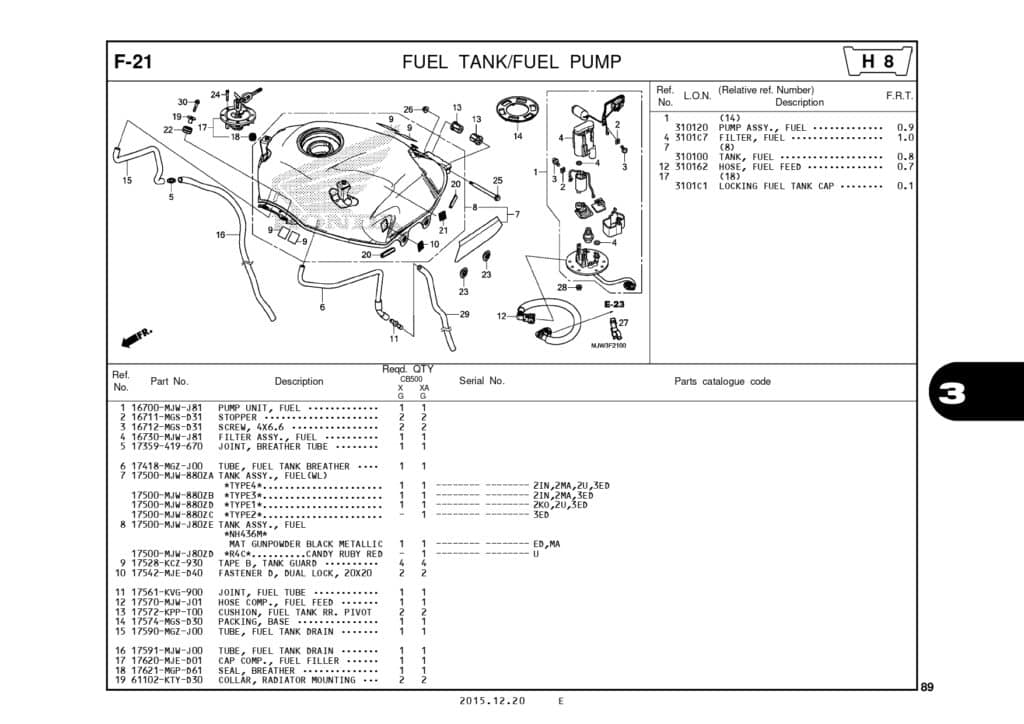

| 1 |
PUMP UNIT, FUEL |
16700MJWJ81 |
-
|
| 2 |
STOPPER |
16711MGSD31 |
|
| 3 |
SCREW, 4X6.6 |
16712MGSD31 |
|
| 4 |
FILTER ASSY,FUEL |
16730MJWJ82 |
-
|
| 5 |
JOINT, BREATHER TUBE |
17359419670 |
-
|
| 6 |
TUBE, FUEL TANK BREATHER |
17418MGZJ00 |
-
|
| 7 |
TANK ASSY., FUEL(WL) PL HO WH |
17500MJW880ZA |
-
|
| 7 |
TANK ASSY., FUEL(WL)MIL RED |
17500MJW880ZB |
-
|
| 7 |
17500MJW880ZD |
17500MJW880ZD |
-
|
| 7 |
TANK ASSY FUEL |
17500MJWDM0ZD |
-
|
| 7 |
17500MJW880ZC |
17500MJW880ZC |
-
|
| 7 |
TANK ASSY FUEL |
17500MJWDM0ZC |
-
|
| 8 |
TANK ASSY FUEL |
17500MJWDM0ZF |
-
|
| 8 |
17500MJWJ80ZE |
17500MJWJ80ZE |
-
|
| 8 |
17500MJWJ80ZD |
17500MJWJ80ZD |
-
|
| 9 |
TAPE B, TANK GUARD |
17528KCZ930 |
-
|
| 10 |
FASTENER D, DUAL LOCK, 20X20 |
17542MJED40 |
-
|
| 11 |
JOINT, FUEL TUBE |
17561KVG900 |
-
|
| 12 |
HOSE COMP., FUEL FEED |
17570MJWJ01 |
-
|
| 13 |
CUSH,FUEL TANK RR PIVOT |
17572KPPT00 |
-
|
| 14 |
PACKING, BASE |
17574MGSD30 |
|
| 15 |
TUBE, FUEL TANK DRAIN |
17590MGZJ00 |
-
|
| 16 |
TUBE, FUEL TANK DRAIN |
17591MJWJ00 |
-
|
| 17 |
CAP COMP., FUEL FILLER |
17620MJED01 |
-
|
| 18 |
17621MGPD62 |
17621MGPD61 |
-
|
| 19 |
COLLAR,RADIATOR MOMP |
61102KTYD30 |
|

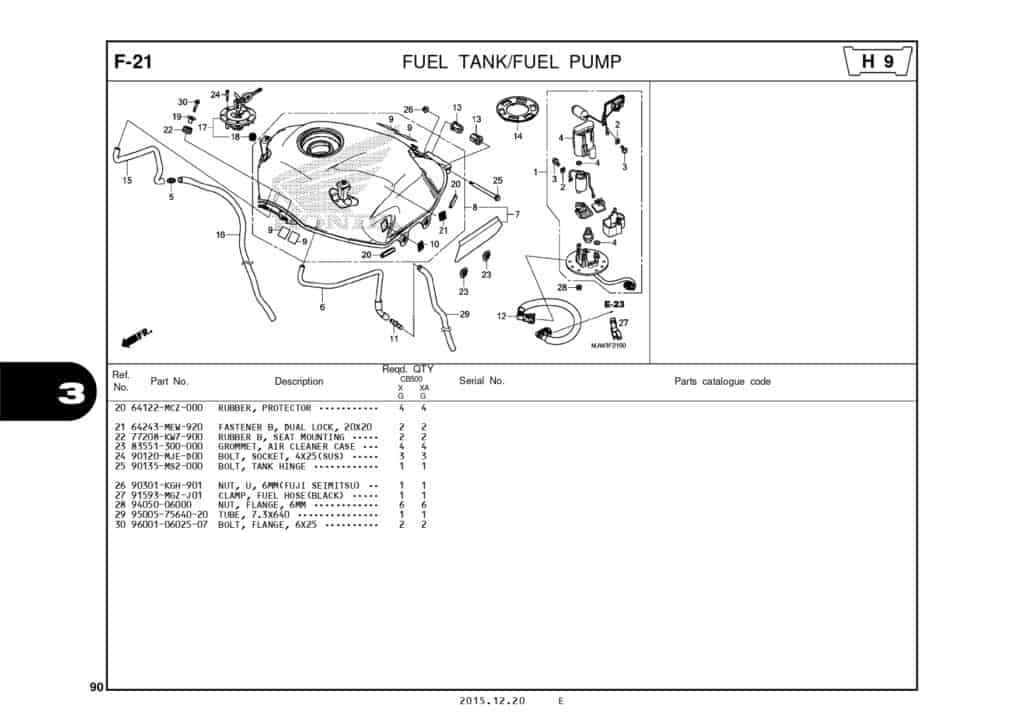

| 20 |
RUBBER, PROTECTOR |
64122MCZ000 |
-
|
| 21 |
FASTENER B, DUAL LOCK, 20X20 |
64243MEW920 |
-
|
| 22 |
RUBR.B SEAT MNT. |
77208KW7900 |
|
| 23 |
CASE GROMMET |
83551300000 |
|
| 24 |
BOLT, SOCKET, 4X25(SUS) |
90120MJED00 |
-
|
| 25 |
BOLT, TANK HINGE |
90135MS2000 |
-
|
| 26 |
NUT U 6MM |
90301KGH901 |
|
| 27 |
CLAMP, FUEL HOSE(BLACK) |
91593MGZJ01 |
-
|
| 28 |
NUT,FLANGE 6MM |
9405006000 |
|
| 29 |
TUBE, 7.3X640 |
950057564020 |
-
|
| 30 |
BOLT,FLANGE 6X25 |
960010602507 |
|
