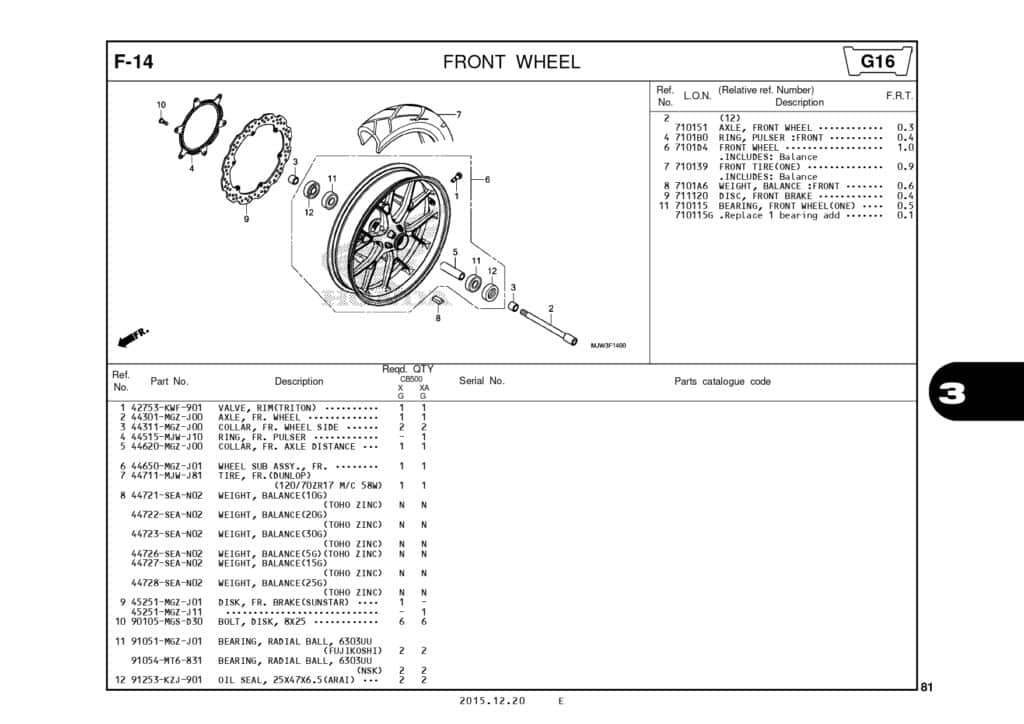

F-14 Front Wheel – Katalog Suku Cadang Honda CB500X MJW

#	Informasi Produk	Visual
1	VALVE,RIM(TRITON) Part Number : `42753KWF901`
2	AXLE, FR. WHEEL Part Number : `44301MGZJ00`
3	COLLAR, FR. WHEEL SIDE Part Number : `44311MGZJ00`
4	RING, FR. PULSER Part Number : `44515MJWJ10`
5	COLLAR, FR. AXLE DISTANCE Part Number : `44620MGZJ00`
6	WHEEL SUB ASSY,FRPRSNPB1 Part Number : `44650MGZJ01`
7	TIRE FR(DUN)120/70ZR17-D609F Part Number : `44711MJWJ81`
8	WEIGHT, BALANCE(10G) Part Number : `44721SEAN02`
8	WEIGHT, BALANCE(20G) Part Number : `44722SEAN02`
8	WEIGHT, BALANCE(30G) Part Number : `44723SEAN02`
8	WEIGHT, BALANCE(5G)(TOHO ZINC) Part Number : `44726SEAN02`
8	WEIGHT, BALANCE(15G) Part Number : `44727SEAN02`
8	WEIGHT, BALANCE(25G) Part Number : `44728SEAN02`
9	DISK, FR. BRAKE(SUNSTAR) Part Number : `45251MGZJ01`
9	DISK, FR. BRAKE Part Number : `45251MGZJ11`
10	BOLT, DISK, 8X25 Part Number : `90105MGSD30`
11	BEARING, RADIAL BALL, 6303UU Part Number : `91051MGZJ01`
11	BEARING, RADIAL BALL, 6303UU Part Number : `91054MT6831`
12	OIL SEAL, 25X47X6.5(ARAI) Part Number : `91253KZJ901`
