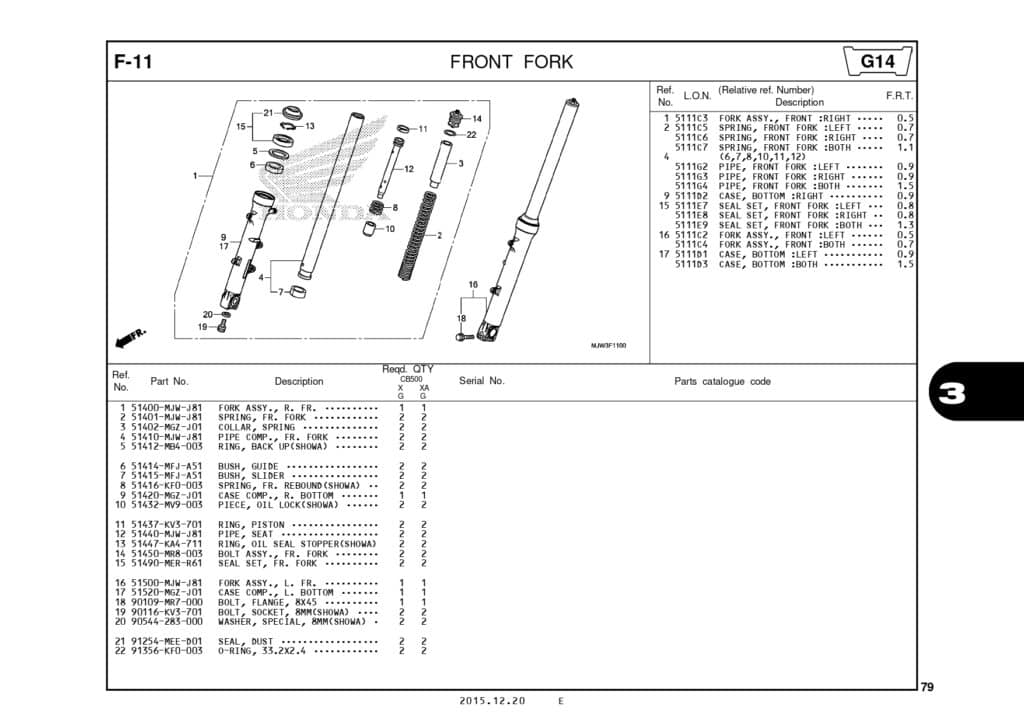

F-11 Front Fork – Katalog Suku Cadang Honda CB500X MJW

#	Informasi Produk	Visual
1	FORK ASSY., R. FR. Part Number : `51400MJWJ81`
2	SPRING, FR. FORK Part Number : `51401MJWJ81`
3	COLLAR, SPRING Part Number : `51402MGZJ01`
4	PIPE COMP., FR. FORK Part Number : `51410MJWJ81`
5	RING, BACK UP(SHOWA) Part Number : `51412MB4003`
6	BUSH, GUIDE Part Number : `51414MFJA51`
7	BUSH, SLIDER Part Number : `51415MFJA51`
8	SPRING, FR. REBOUND(SHOWA) LBL Part Number : `51416KF0003`
9	CASE COMP., R. BOTTOM Part Number : `51420MGZJ01`
10	PIECE, OIL LOCK(SHOWA) Part Number : `51432MV9003`
11	RING, PISTON Part Number : `51437KV3701`
12	PIPE, SEAT Part Number : `51440MJWJ81`
13	RING, OIL SEAL STOPPER(SHOWA) Part Number : `51447KA4711`
14	BOLT ASSY., FR. FORK Part Number : `51450MR8003`
15	SEAL SET FR FORK Part Number : `51490MKAD81`
15	SEAL SET FR FORK Part Number : `51490MKLD81`
16	FORK ASSY., L. FR. Part Number : `51500MJWJ81`
17	CASE COMP., L. BOTTOM Part Number : `51520MGZJ01`
18	BOLT,FLANGE,8X45 Part Number : `90109MR7000`
19	BOLT,SOCKET 8MM Part Number : `90116KV3701`
20	WASHER SPECIAL (8MM) Part Number : `90544283000`
21	SEAL, DUST Part Number : `91254MEED01`
22	O-RING, 33.2X2.4 Part Number : `91356KF0003`
