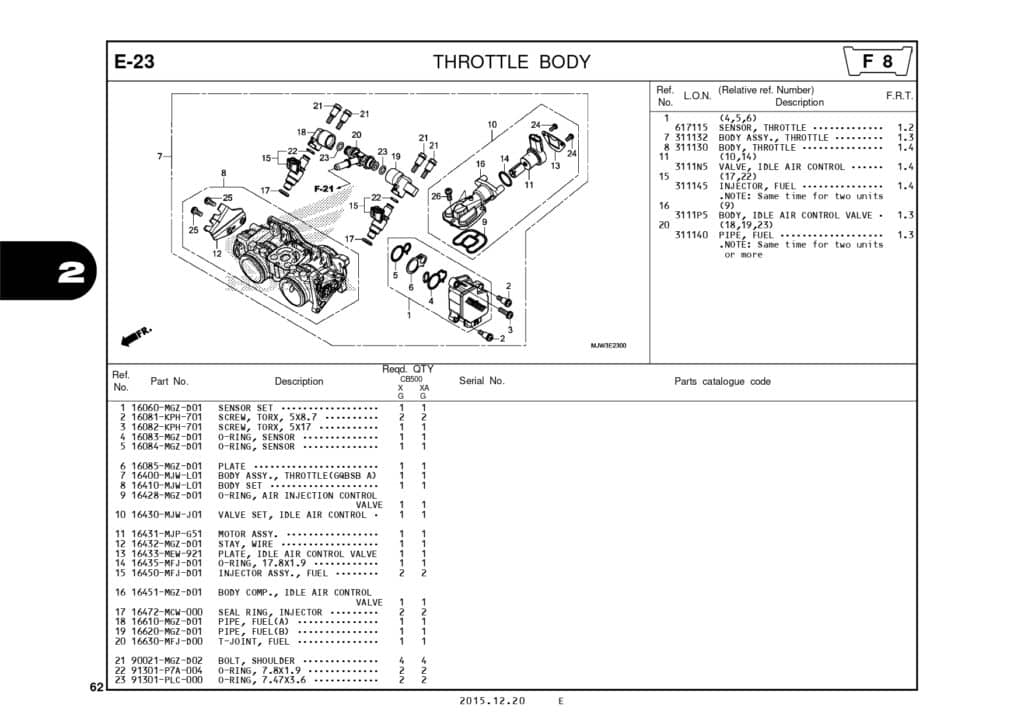

E-23 Throttle Body – Katalog Suku Cadang Honda CB500X MJW

#	Informasi Produk	Visual
1	SENSOR SET Part Number : `16060MGZD01`
2	SCREW, TORX, 5X8.7 Part Number : `16081KPH701`
3	SCREW,TORX 5X17 Part Number : `16082KPH701`
4	O-RING, SENSOR Part Number : `16083MGZD01`
5	O-RING, SENSOR Part Number : `16084MGZD01`
6	PLATE Part Number : `16085MGZD01`
7	BODY ASSY., THROTTLE(GQBSB A) Part Number : `16400MJWL01`
8	BODY SET Part Number : `16410MJWL01`
9	O-RING, AIR INJECTION CONTROL Part Number : `16428MGZD01`
10	VALVE SET, IDLE AIR CONTROL Part Number : `16430MJWJ01`
11	MOTOR ASSY. Part Number : `16431MJPG51`
12	STAY, WIRE Part Number : `16432MGZD01`
13	PLATE, IDLE AIR CONTROL VALVE Part Number : `16433MEW921`
14	O-RING, 17.8X1.9 Part Number : `16435MFJD01`
15	INJECTOR ASSY., FUEL Part Number : `16450MFJD01`
16	BODY COMP., IDLE AIR CONTROL Part Number : `16451MGZD01`
17	SEAL RING,INJECTOR Part Number : `16472MCW000`
18	PIPE, FUEL(A) Part Number : `16610MGZD01`
19	PIPE, FUEL(B) Part Number : `16620MGZD01`
20	T-JOINT, FUEL Part Number : `16630MFJD00`
21	BOLT, SHOULDER Part Number : `90021MGZD02`
22	O RING Part Number : `91301P7A004`
23	O-RING (7.47 X 3.6) Part Number : `91301PLC000`
24	SCREW PAN 4X8 Part Number : `93500040081H`
25	SCREW WASHER 5X12 Part Number : `938920501218`
26	SCREW WASHER 5X14 Part Number : `938920501418`
