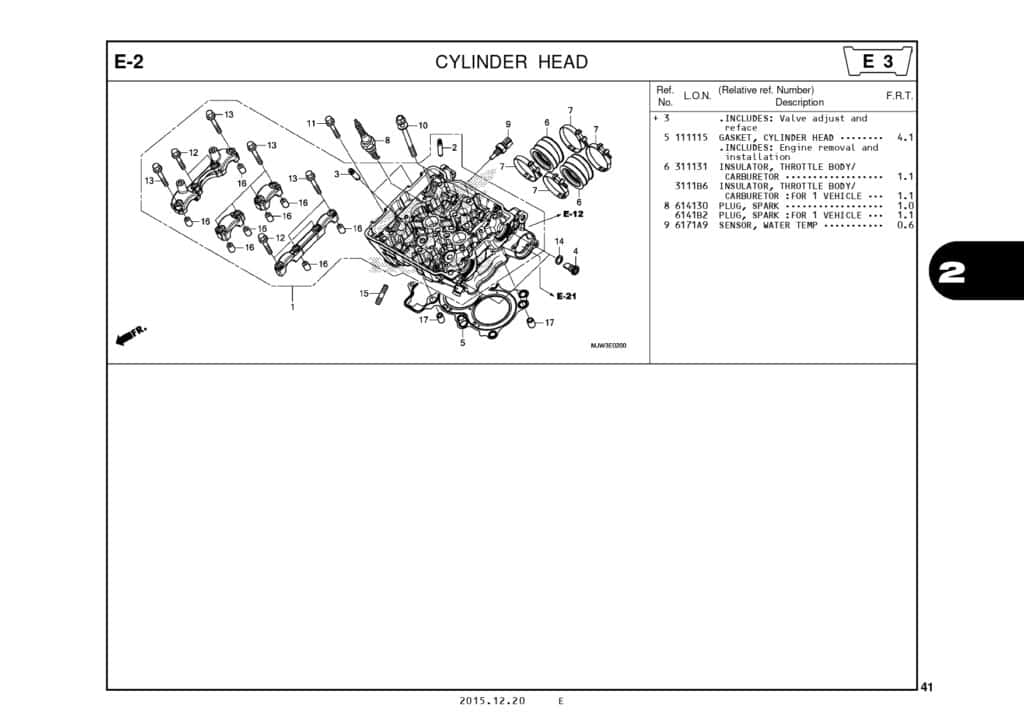

E-2 Cylinder Head – Katalog Suku Cadang Honda CB500X MJW
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
HEAD ASSY., CYLINDER |
12010MGZJ80 |
-
|
| 2 |
GUIDE,IN VALVE(OV |
12204KYJ305 |
-
|
| 3 |
GUIDE,EX VALVE(OV |
12205KYJ305 |
|
| 4 |
BOLT, SEALING, 12MM |
12207MGZJ00 |
-
|
| 5 |
GASKET, CYLINDER HEAD |
12251MGZJ01 |
-
|
| 6 |
INSULATOR, THROTTLE BODY |
16211MGZJ00 |
-
|
| 7 |
BAND, INSULATOR |
16217MGZJ00 |
-
|
| 8 |
SPARK PLUG CPR8EA9 (NGK) |
31916KRM841 |
|
| 9 |
SENSOR ASSY., WATER TEMP |
37870MGSD31 |
-
|
| 10 |
BOLT-WASHER, 9X100 |
90007MGZJ00 |
-
|
| 11 |
BOLT, FLANGE, 6X35 |
90011MGZJ00 |
-
|
| 12 |
BOLT,FLANGE 6X32 RKT |
90017KYJ900 |
-
|
| 13 |
BOLT,FLANGE 6X39 |
90019KYJ900 |
-
|
| 14 |
WASHER,12.2X17X1.5 |
90418KYJ900 |
|
| 15 |
BOLT 2,STUD,8X22 |
92900080223E |
-
|
| 16 |
PIN DOWEL 8X14 |
9430108140 |
|
| 17 |
PIN KNCK,12X16 |
9430112160 |
|
