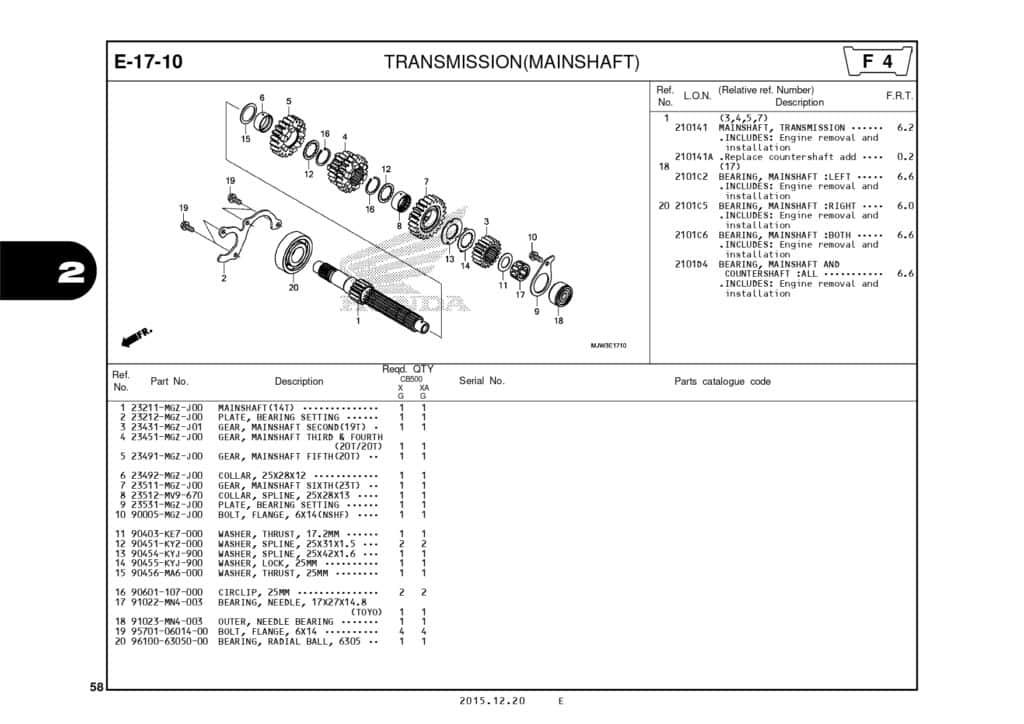

E-17-10 Transmission Mainsaft – Katalog Suku Cadang Honda CB500X MJW

#	Informasi Produk	Visual
1	MAINSHAFT(14T) Part Number : `23211MGZJ00`
2	PLATE, BEARING SETTING Part Number : `23212MGZJ00`
3	GEAR, MAINSHAFT SECOND(19T) Part Number : `23431MGZJ01`
4	GEAR, MAINSHAFT THIRD & FOURTH Part Number : `23451MGZJ00`
5	GEAR, MAINSHAFT FIFTH(20T) Part Number : `23491MGZJ00`
6	COLLAR, 25X28X12 Part Number : `23492MGZJ00`
7	GEAR, MAINSHAFT SIXTH(23T) Part Number : `23511MGZJ00`
8	COLLAR, SPLINE, 25X28X13 Part Number : `23512MV9670`
9	PLATE, BEARING SETTING Part Number : `23531MGZJ00`
10	BOLT, FLANGE, 6X14(NSHF) Part Number : `90005MGZJ00`
11	WASHER, THRUST, 17.2MM Part Number : `90403KE7000`
12	WASHER, SPLINE, 25X31X1.5 Part Number : `90451KY2000`
13	WASHER,SPLINE 25X42X1.6 Part Number : `90454KYJ900`
14	WASHER,LOCK 25MM Part Number : `90455KYJ900`
15	WASHER, THRUST, 25MM Part Number : `90456MA6000`
16	CIRCLIP.25MM Part Number : `90601107000`
17	BEARING, NEEDLE, 17X27X14.8 Part Number : `91022MN4003`
18	OUTER, NEEDLE BEARING Part Number : `91023MN4003`
19	BOLT FLANGE 6X14 Part Number : `957010601400`
20	BEARING, RADIAL BALL, 6305 LBL Part Number : `961006305000`
