| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|

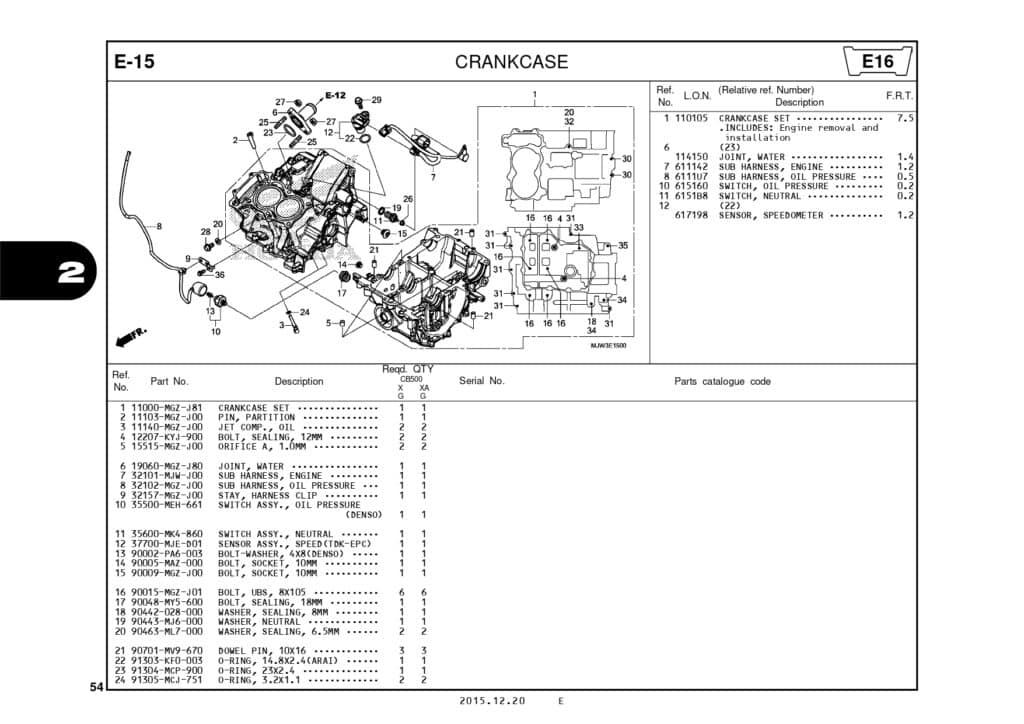

| 1 | CRANKCASE SET | 11000MGZJ81 | - |
| 2 | PIN, PARTITION | 11103MGZJ00 | - |
| 3 | JET COMP., OIL | 11140MGZJ00 | - |
| 4 | BOLT,SEALING 12MM | 12207KYJ900 |
|
| 5 | ORIFICE A, 1.0MM | 15515MGZJ00 | - |
| 6 | JOINT, WATER | 19060MGZJ80 | - |
| 7 | SUB HARNESS, ENGINE | 32101MJWJ00 | - |
| 8 | SUB HARNESS, OIL PRESSURE | 32102MGZJ00 | - |
| 9 | STAY, HARNESS CLIP | 32157MGZJ00 | - |
| 10 | SWITCH ASSY., OIL PRESSURE | 35500MEH661 | - |
| 11 | SWITCH ASSY., NEUTRAL | 35600MK4860 | - |
| 12 | SENSOR ASSY., SPEED | 37700MJED01 | - |
| 13 | BOLT-WASHER, 4X8(DENSO) | 90002PA6003 | - |
| 14 | BOLT, SOCKET, 10MM | 90005MAZ000 |
|
| 15 | BOLT, SOCKET, 10MM | 90009MGZJ00 | - |
| 16 | BOLT, UBS, 8X105 | 90015MGZJ01 | - |
| 17 | BOLT, SEALING, 18MM | 90048MY5600 | - |
| 18 | WASHER SEAL 8MM | 90442028000 |
|
| 19 | WASHER, NEUTRAL | 90443MJ6000 |
|
| 20 | WASHER SEALING 6.5MM | 90463ML7000 |
|
| 21 | DOWEL PIN, 10X16 | 90701MV9670 | - |
| 22 | O-RING,14.8X2.4 | 91303KF0003 |
|
| 23 | O-RING, 23X2.4 | 91304MCP900 | - |
| 24 | O-RING, 3.2X1.1 | 91305MCJ751 | - |
| 25 | BOLT, STUD, 6X16 | 92900060160E | - |
| 26 | NUT,FLANGE,4MM | 9405004000 |
|
| 27 | NUT,FLANGE 6MM | 9405006000 |
|
| 28 | BOLT FLANGE 6X12 | 957010601200 |
|
| 29 | BOLT FLANGE 6X18 | 957010601801 |
|
| 30 | BOLT FLANGE 6X35 | 957010603500 |
|
| 31 | BOLT, FLANGE, 6X40 | 957010604008 | - |
| 32 | BOLT FLANGE 6X95 | 957010609500 |
|
| 33 | BOLT,FLANGE,8X55 | 957010805500 |
|
| 34 | BOLT, FLANGE, 8X75 | 957010807500 | - |
| 35 | BOLT, FLANGE, 10X75 | 957011007500 | - |
| 36 | BOLT,FLANGE,SH 6X14 | 960010601407 |
|
