F-8 Front Fork – Katalog Suku Cadang Honda GL Pro Max

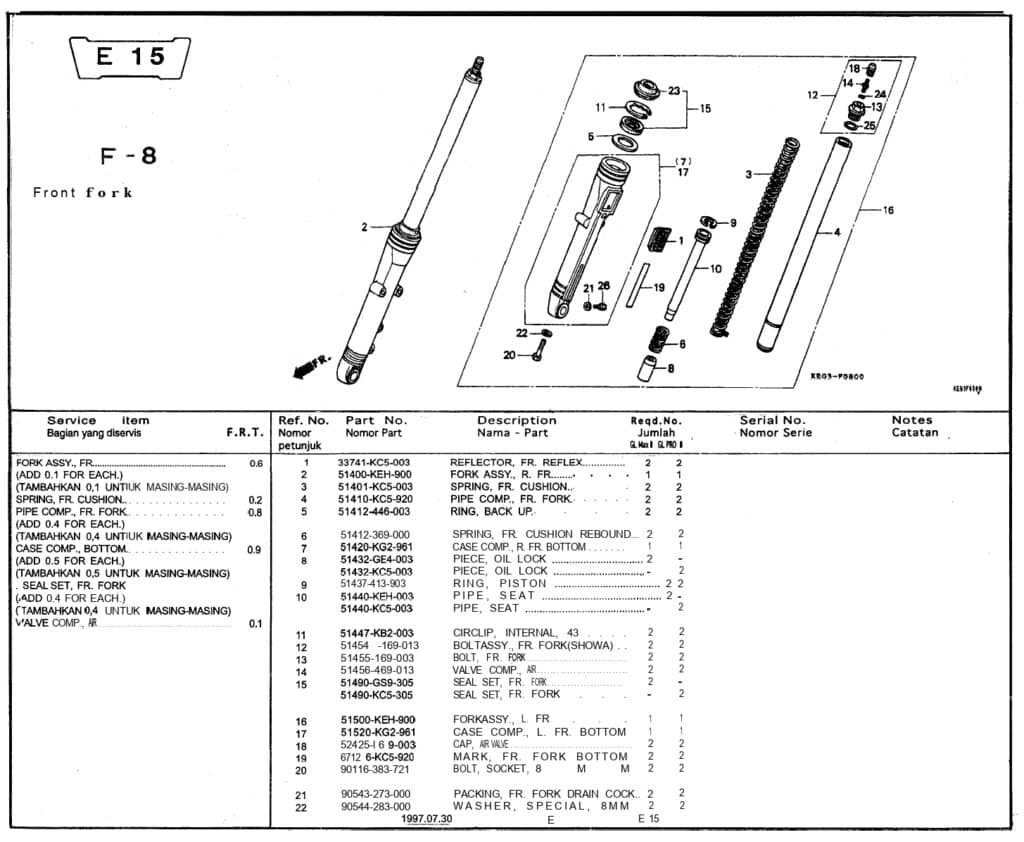

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 REFLECTOR FR 33741KC5003 -
2 51400KEH900 51400KEH900 -
3 SPRING FR FORK 51401KC5003 SPRING FR FORK
4 PIPE COMP FR FORK 51410KC5920 PIPE COMP FR FORK
5 RING,BACK UP 51412446003 -
6 SPRING,REBOUND LBL 51412369000 SPRING,REBOUND LBL
7 51420KG2961 51420KG2961 -
8 PIECE OIL LOCK 51432GE4003 PIECE OIL LOCK
8 51432KC5003 51432KC5003 -
9 51437413903 51437413903 -
10 51440KEH003 51440KEH003 -
10 51440KC5003 51440KC5003 -
11 51447KB2003 51447KB2003 -
12 BOLT,FR FORK 51454169013 -
13 BOLT,FR FORK 51455169003 -
14 VALVE,AIR 51456469013 -
15 51490389305 51490389305 -
15 SEAL SET FR FORK 51490KC5305 SEAL SET FR FORK
16 51500KEH900 51500KEH900 -
17 51520KG2961 51520KG2961 -
18 CAP,AIR VALVE 52425169003 -
19 67126KC5920 67126KC5920 -
20 BOLT,SOCKET 8MM 90116383721 BOLT,SOCKET 8MM
21 PACKING,DRAIN 90543273000 -
22 WASHER SPECIAL (8MM) 90544283000 WASHER SPECIAL (8MM)
23 DUST SEAL FR FORK 91254GAA003 DUST SEAL FR FORK
24 91301469003 91301469003 -
25 91358169003 91358169003 -
