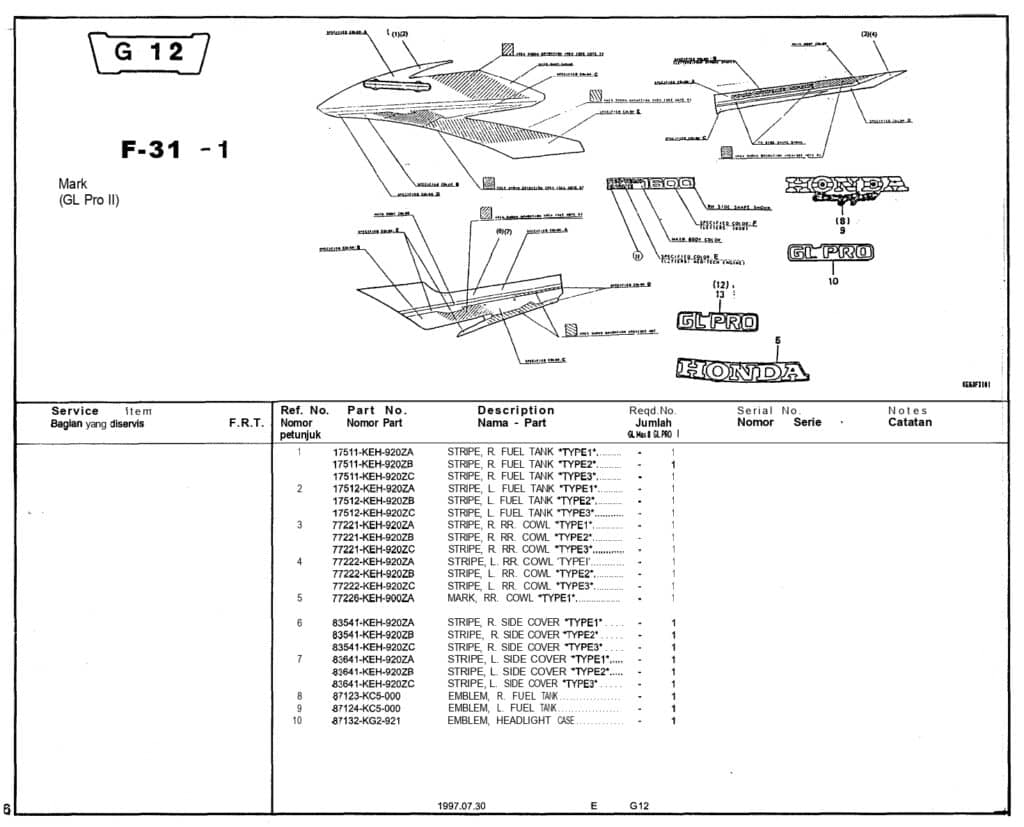

F-31-1 Mark – Katalog Suku Cadang Honda GL Pro Max

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 17511KEH920ZA 17511KEH920ZA -
1 17511KEH920ZB 17511KEH920ZB -
1 17511KEH920ZC 17511KEH920ZC -
2 17512KEH920ZA 17512KEH920ZA -
2 17512KEH920ZB 17512KEH920ZB -
2 17512KEH920ZC 17512KEH920ZC -
3 77221KEH920ZA 77221KEH920ZA -
3 77221KEH920ZB 77221KEH920ZB -
3 77221KEH920ZC 77221KEH920ZC -
4 77222KEH920ZA 77222KEH920ZA -
4 77222KEH920ZB 77222KEH920ZB -
4 77222KEH920ZC 77222KEH920ZC -
5 77226KEH900ZA 77226KEH900ZA -
6 83541KEH920ZA 83541KEH920ZA -
6 83541KEH920ZB 83541KEH920ZB -
6 83541KEH920ZC 83541KEH920ZC -
7 83641KEH920ZA 83641KEH920ZA -
7 83641KEH920ZB 83641KEH920ZB -
7 83841KEH920ZC 83841KEH920ZC -
8 8 87123KC5000 8 87123KC5000 -
9 87124KC5000 87124KC5000 -
10 87132KG2921 87132KG2921 -
11 87223KEH920ZA 87223KEH920ZA -
11 87223KEH920ZB 87223KEH920ZB -
11 87223KEH920ZC 87223KEH920ZC -
12 EMBLEM,R COVER 87228KC5921 EMBLEM,R COVER
13 EMBLEM,L COVER 87229KC5921 EMBLEM,L COVER
