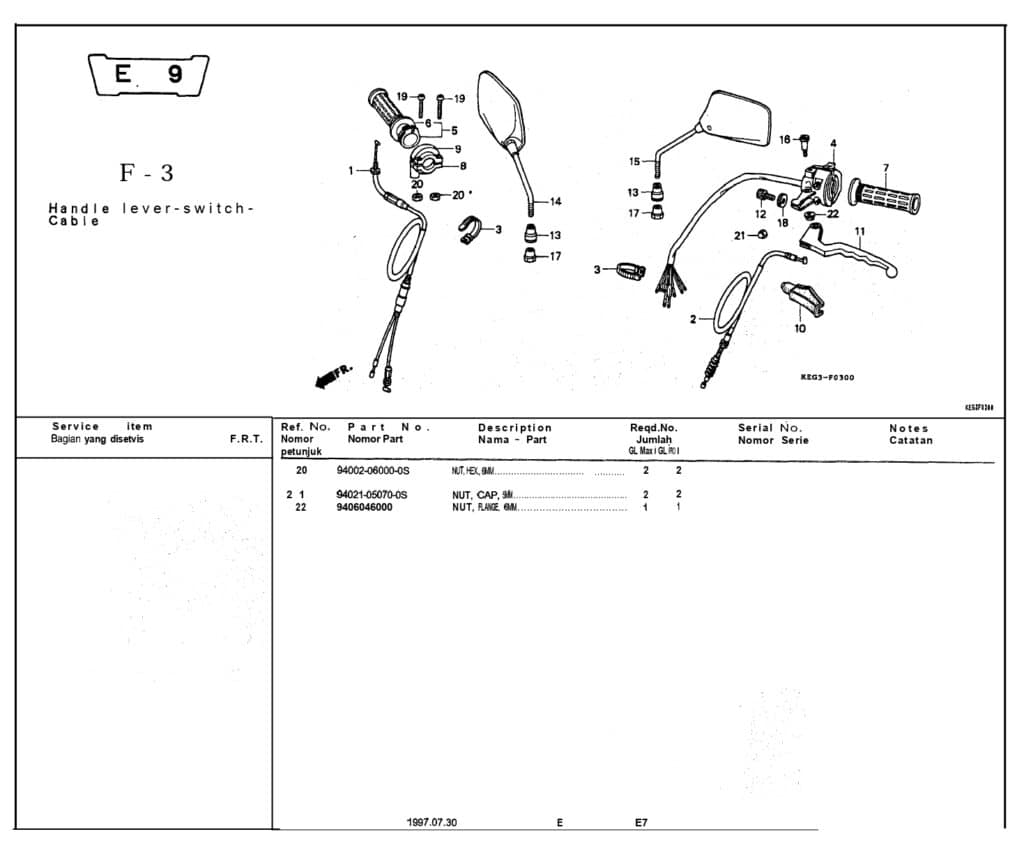

F-3 Handle Lever Switch Cable – Katalog Suku Cadang Honda GL Pro Max
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
CABLE COMP,THROTT |
17910KEG900 |
|
| 1 |
CABLE COMP,THROTT |
17910KEH900 |
|
| 1 |
CABLE COMP,THROTT |
17910KC6920 |
|
| 1 |
CABLE COMP,THROTT |
17910KG2950 |
|
| 2 |
CABLE COMP,CLUTCH |
22870KEH900 |
|
| 2 |
CABLE COMP,CLUTCH |
22870KG2950 |
|
| 3 |
BAND B1 WIRE /K5 |
32161404000 |
|
| 4 |
SWITCH WINKER |
35150KG2950 |
|
| 5 |
GRIP COMP R THROTTLE |
53140KEG900 |
-
|
| 5 |
GRIP R HDL |
53165422000 |
-
|
| 6 |
GRIP L HDL |
53166422000 |
|
| 7 |
53167186810 |
53167186810 |
-
|
| 7 |
HOUSING,THROTT UN |
53167KW6900 |
-
|
| 8 |
53168166000 |
53168166000 |
-
|
| 9 |
53168KW6900 |
53168KW6900 |
-
|
| 10 |
COVER L HDL |
53174KC5000 |
-
|
| 11 |
LEVER L HDL |
53178KC6900 |
-
|
| 12 |
BOLT,CLUTCH ADJ |
53192268000 |
-
|
| 13 |
88113GN5900 |
88113GN5900 |
-
|
| 14 |
88110GN5780 |
88110GN5780 |
-
|
| 15 |
88120GN5780 |
88120GN5780 |
-
|
| 16 |
BOLT,L HANDLE LEV |
90113422000 |
-
|
| 17 |
90314325000 |
90314325000 |
-
|
| 18 |
NUT,FIXING |
90321315670 |
-
|
| 19 |
SCREW PAN 5X22 |
93500050220G |
-
|
| 20 |
NUT,HEX 6MM |
94002060000S |
|
| 21 |
940210507003 |
940210507003 |
-
|
| 22 |
9406046000 |
9406046000 |
-
|
