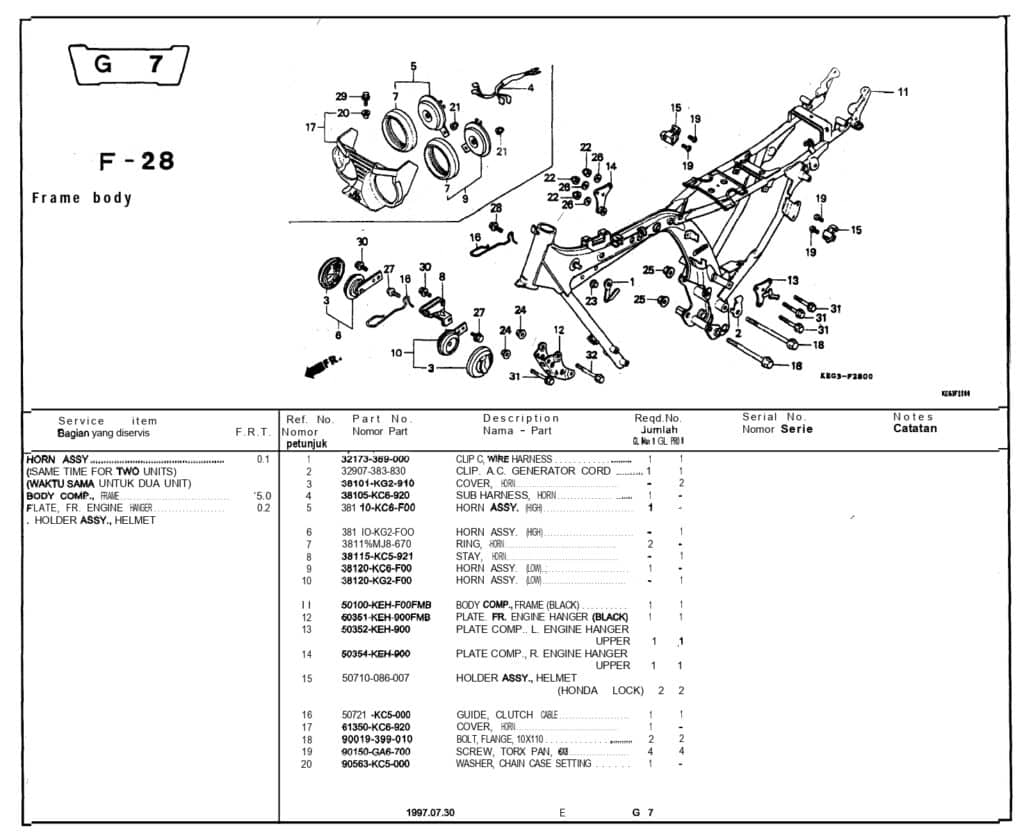

F-28 Frame Body – Katalog Suku Cadang Honda GL Pro Max
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
CLIP CHARNESS |
32173369000 |
-
|
| 2 |
CLIP ASSY GENERAT |
32907383830 |
-
|
| 3 |
COVER HORN /3 |
38101KG2910 |
-
|
| 4 |
38105KC6820 |
38105KC6820 |
-
|
| 5 |
38110KCGF00 |
38110KCGF00 |
-
|
| 6 |
38110KG2F00 |
38110KG2F00 |
-
|
| 7 |
38110MJ8670 |
38110MJ8670 |
-
|
| 8 |
STAY HORN |
38115KC5921 |
-
|
| 9 |
38120KC6F00 |
38120KC6F00 |
-
|
| 10 |
38120KG2F00 |
38120KG2F00 |
-
|
| 11 |
50700KEHF00FMB |
50700KEHF00FMB |
-
|
| 12 |
5035lKEH900FMB |
5035lKEH900FMB |
-
|
| 13 |
50352KEH900 |
50352KEH900 |
-
|
| 14 |
PLATE R ENGINE |
50354KEH900 |
-
|
| 15 |
HOLDER HELMET |
50710086007 |
-
|
| 16 |
GUIDE CLUTCH CABLE |
50721KC5000 |
-
|
| 17 |
61350KC8920 |
61350KC8920 |
-
|
| 18 |
BOLT,FLANGE10X110 |
90019399010 |
|
| 19 |
SCREW PAN 6X8 |
90150GA6700 |
-
|
| 20 |
WASHER CHAIN CASE |
90563KC5000 |
|
| 21 |
NUT,BLIND 6MM |
94021060000S |
-
|
| 22 |
94021080200S |
94021080900S |
-
|
| 23 |
NUT,FLANGE 6MM |
9405006080 |
|
| 24 |
NUT FLANGE 8MM |
9405008000 |
|
| 25 |
NUT FLANGE10MM |
9405010000 |
|
| 26 |
WASHER PLAIN 8MM |
9410108000 |
|
| 27 |
BOLT FLANGE 6X10 |
957010601000 |
|
| 28 |
BOLT FLANGE 6X16 |
957010601600 |
|
| 29 |
BOLT,FLANGE 6X16 |
957010601608 |
|
| 30 |
957010601801 |
957010601800 |
-
|
| 31 |
BOLT,FLANGE 8X70 |
958010807000 |
-
|
| 32 |
BOLT FLANGE 8X65 |
958010806500 |
-
|
