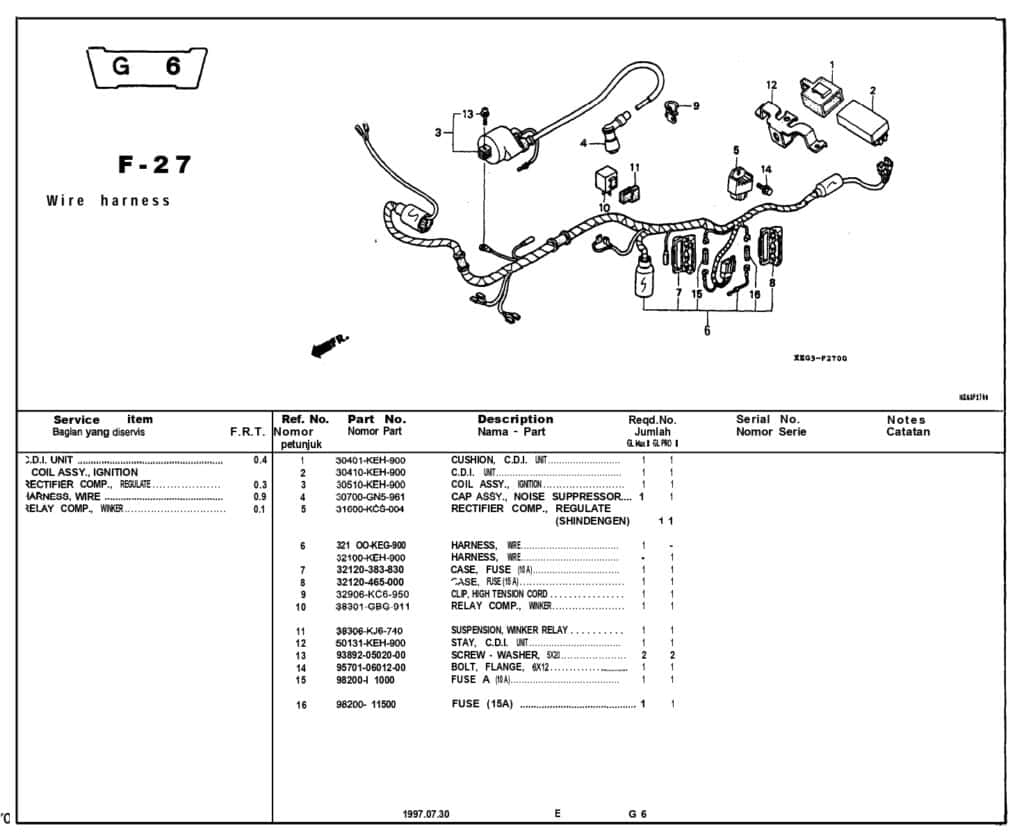

F-27 Wire Harnes – Katalog Suku Cadang Honda GL Pro Max
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
CUSHION CDI UNIT |
30401KEH900 |
-
|
| 2 |
CDI UNIT |
30410KEH900 |
|
| 3 |
COIL IGN |
30510KEH900 |
|
| 4 |
30700GN5961 |
30700GN5961 |
-
|
| 5 |
31600KCS004 |
31600KCS004 |
-
|
| 6 |
HARNESS WIRE |
32100KEG900 |
-
|
| 6 |
HARNESS WIRE |
32100KEH900 |
-
|
| 7 |
CASE,FUSE |
32120383830 |
-
|
| 8 |
32120465000 |
32120465000 |
-
|
| 9 |
32906KC6950 |
32906KC6950 |
-
|
| 10 |
RELAY COMP WINKER |
38301GBG911 |
|
| 11 |
SUSPENSION,RELAY |
38306KJ6740 |
|
| 12 |
50131KEH900 |
50131KEH900 |
-
|
| 13 |
SCREW WASHER 5X20 |
938920502000 |
|
| 14 |
BOLT FLANGE 6X12 |
957010601200 |
|
| 15 |
FUSE A 10A 25MM |
9820011000 |
-
|
| 16 |
FUSE 15A |
9820011500 |
-
|
