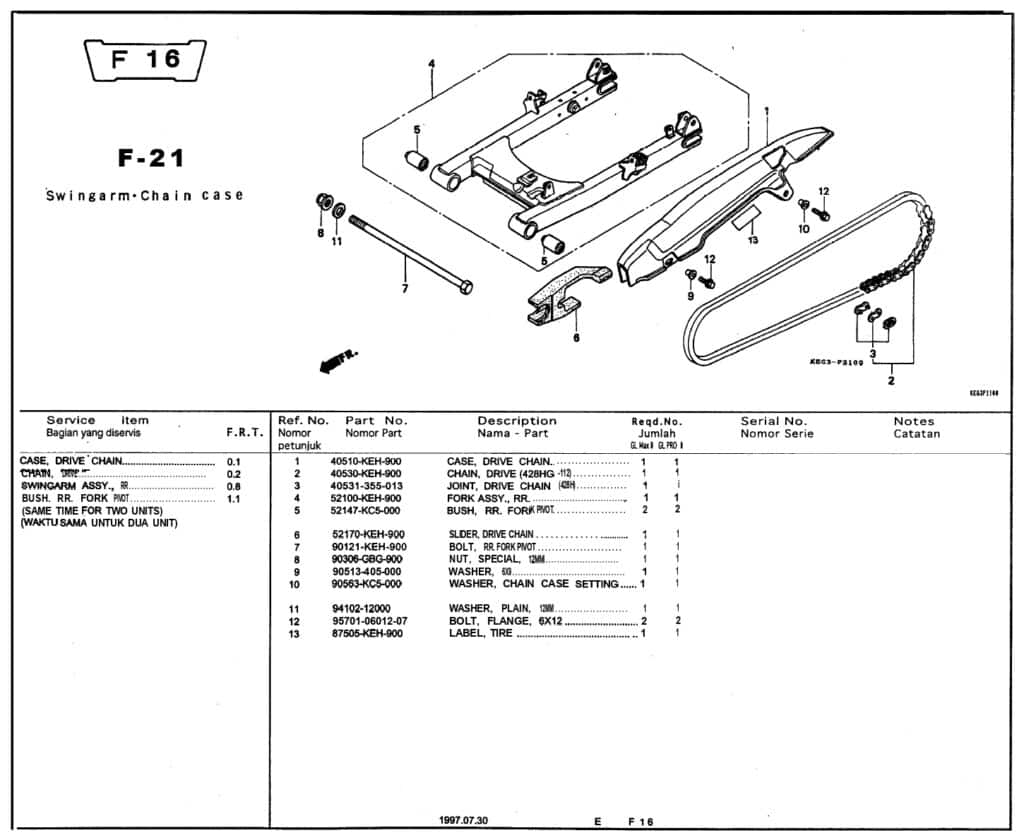

F-21 Swingarm Chain Case – Katalog Suku Cadang Honda GL Pro Max
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
CASE CHAIN |
40510KEH900 |
-
|
| 2 |
40530KEH900 |
40530KEH900 |
-
|
| 3 |
30531355013 |
30531355013 |
-
|
| 4 |
SWING ARM ASSY RR |
52100KEH900 |
-
|
| 5 |
64147KC5000 |
64147KC5000 |
-
|
| 6 |
SLIDER CHAIN |
52170KEH900 |
|
| 7 |
BOLT SWINGARM |
90121KEH900 |
-
|
| 8 |
NUT SPECIAL 12MM |
90306GBG900 |
-
|
| 9 |
WASHER 6X9 |
90513405000 |
|
| 10 |
WASHER CHAIN CASE |
90563KC5000 |
|
| 11 |
WASHER,PLAIN 12MM |
9410212000 |
-
|
| 12 |
BOLT FLANGE 6X12 |
957010601207 |
|
| 13 |
87505KEH900 |
87505KEH900 |
-
|
