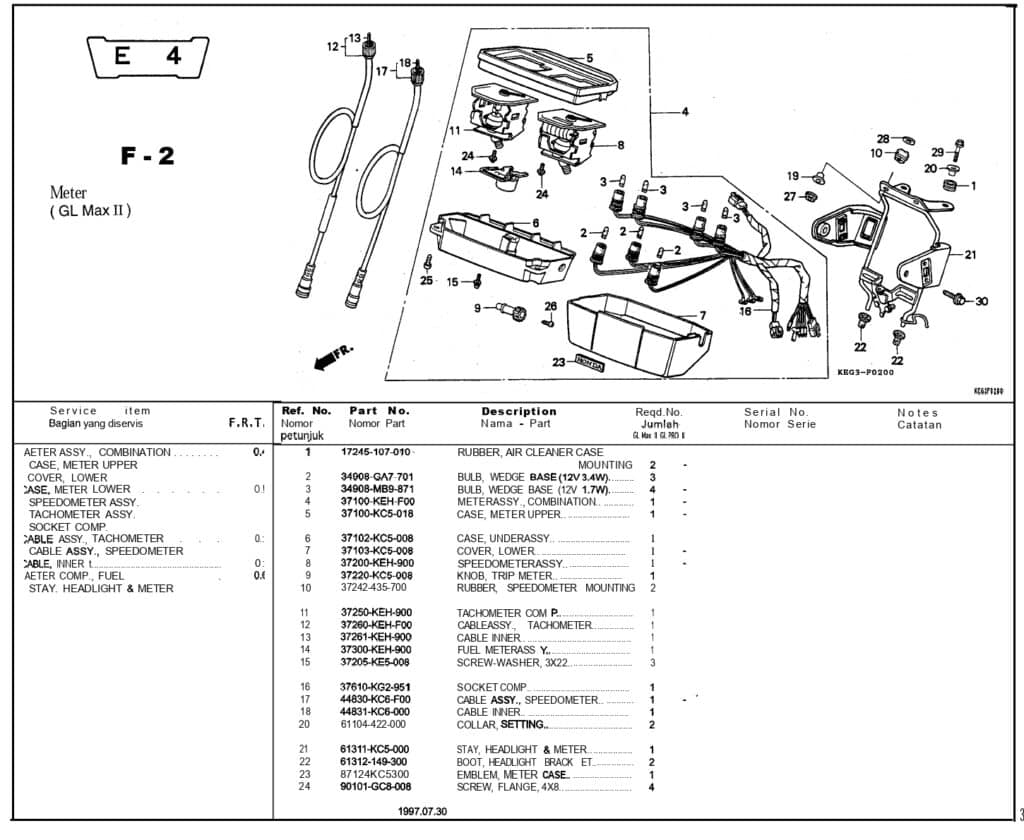

F-2 Meter – Katalog Suku Cadang Honda GL Pro Max
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
RUBBER MOUNT |
17245107010 |
|
| 2 |
BULB W BASE |
34908GA7701 |
|
| 3 |
BULB W BASE |
34908MB9871 |
|
| 4 |
37100KEHF00 |
37100KEHF00 |
-
|
| 5 |
37100KC5018 |
37100KC5018 |
-
|
| 6 |
CASE METER LOWER |
37102KC5008 |
-
|
| 7 |
COVER,LOWER |
37103KC5008 |
-
|
| 8 |
SPEEDOMETER ASSY |
37200KEH900 |
-
|
| 9 |
37220KC5008 |
37220KC5008 |
-
|
| 10 |
RUBBER SPEEDOMET |
37242435700 |
-
|
| 11 |
TACHOMETER ASSY |
37250KEH900 |
-
|
| 12 |
37260KEHF00 |
37260KEHF00 |
-
|
| 13 |
37261KEH900 |
37261KEH900 |
-
|
| 14 |
METER ASSY FUEL |
37300KEH900 |
-
|
| 15 |
37205KE5008 |
37205KE5008 |
-
|
| 16 |
37610KG2951 |
37610KG2951 |
-
|
| 17 |
44630KC6F00 |
44630KC6F00 |
-
|
| 17 |
Cable Speedomtr |
44830KC6000 |
|
| 18 |
44831KC6000 |
44831KC6000 |
-
|
| 20 |
COLLAR SETTING |
61104422000 |
|
| 21 |
61311KC5000 |
61311KC5000 |
-
|
| 22 |
61312144300 |
61312144300 |
-
|
| 23 |
87124KC5300 |
87124KC5300 |
-
|
| 24 |
90101GC8C08 |
90101GC8C08 |
-
|
| 25 |
90106KJ6000 |
90106KJ6000 |
-
|
| 26 |
SCREW,TRIP K 2X6 |
90158KM7911 |
|
| 27 |
NUT,FLANGE 6MM |
9405006000 |
|
| 28 |
9410366000 |
9410366000 |
-
|
| 29 |
BOLT FLANGE 6X22 |
957010602200 |
|
| 30 |
BOLT FLANGE 8X25 |
957010802507 |
|
